12. If 10 Volts is present in the pre-
ceding step, continue by re-
moving the Eyebrow assembly
from the refrigerator by remov-
ing the 3 screws as shown in
Figure 11.39.
13. Remove the Eyebrow board
from the Eyebrow assembly
as shown in Figure 11.40.
Do not disconnect the cable
or thermistor from the Eye-
brow board.
14. Set the volt-ohm-meter to
measure + 12 volts DC and
check for 10 volts at R22 and
D11 (R23 and D11 for 2-Way
models) as shown in Figure
11.41.
A. If you do not have 10 volts
the cable is defective.
B. If you have 10 volts and
the LP light is not illumi-
nated the Eyebrow board
is defective.
15. Set the Mode Selector switch
(es) to OFF.

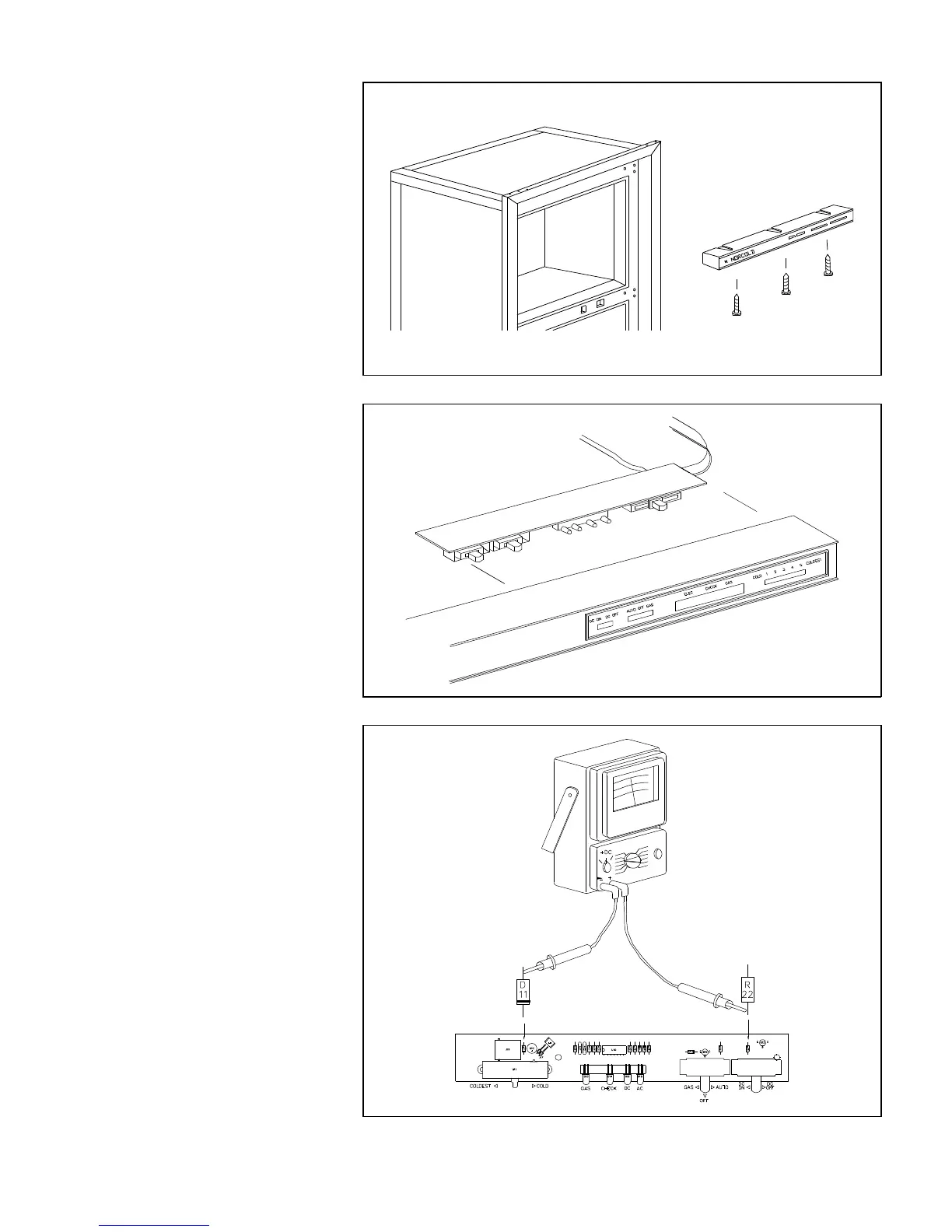

Figure 11.39 Eyebrow Removal
Figure 11.40 Eyebrow Board Removal
Cable and Thermistor connected
but not shown
Figure 11.41 Control Voltage Check
