Installation Manual 12
Connect the Electrical Components
Electrical current necessary:
AC Operation DE0041and DE0061 models - 120 volts AC voltage (108 volts min. - 132 volts max.)
- 59 hertz min. - 61 hertz max.
AC Operation EV0041and EV0061 models - 220 volts AC voltage (205 volts min. - 253 volts max.)
- 49 hertz min. - 51 hertz max.
DC Operation DC / DE / EV0041 and DE/ EV0061 models - 12 volts DC voltage (10.9 volts min. - 17 volts max.)
- 24 volts DC voltage (23.8 volts min. - 31.5 volts max.)
DE0061 /EV0061 refrigerator operates on both AC and DC electrical sources. DC0061 only operates on DC. Operation out of these
limits may damage the refrigerator’s electrical circuit parts and will void the warranty.
Make no changes to any of the electrical wiring supplied with the refrigerator. Any changes that you would make to the electrical wiring
will void the warranty.
Connect the 120 / 220 volts AC supply:
Connect the AC power cord only to a grounded three-prong receptacle. Do not remove the ground prong
from the power cord. Do not use a two-prong adapter or an extension cord. Operation of the refrigerator
without correct ground can cause dangerous electrical shock or death if you are touching the metal parts
of the refrigerator.
Put the AC power cord [87] (See Art02282 and Art02283) into a grounded three-prong receptacle:
- Make sure the AC power to the receptacle goes through a fuse or a circuit breaker which will protect the vehicle when an outside
power source is used.
- If the AC power to the receptacle is supplied by an on-board generator, make sure that both the voltage and the frequency are
within the specied limits (See the “Electrical current necessary” section).
Connect the 12/24 volts DC supply:
To reduce the risk of electrical interference from other DC appliances and induction from voltage spikes:
- The refrigerator must have an independent 12/24 volt DC supply.
- Route the DC power supply wires including the fuses directly from the battery to the refrigerator.
- Twist the DC power supply wires from the battery to the refrigerator.
3. Put the hinge hole covers onto the refrigerator cabinet opposite the hinges and over
the empty hinge holes (See Art02283 and Art02285).

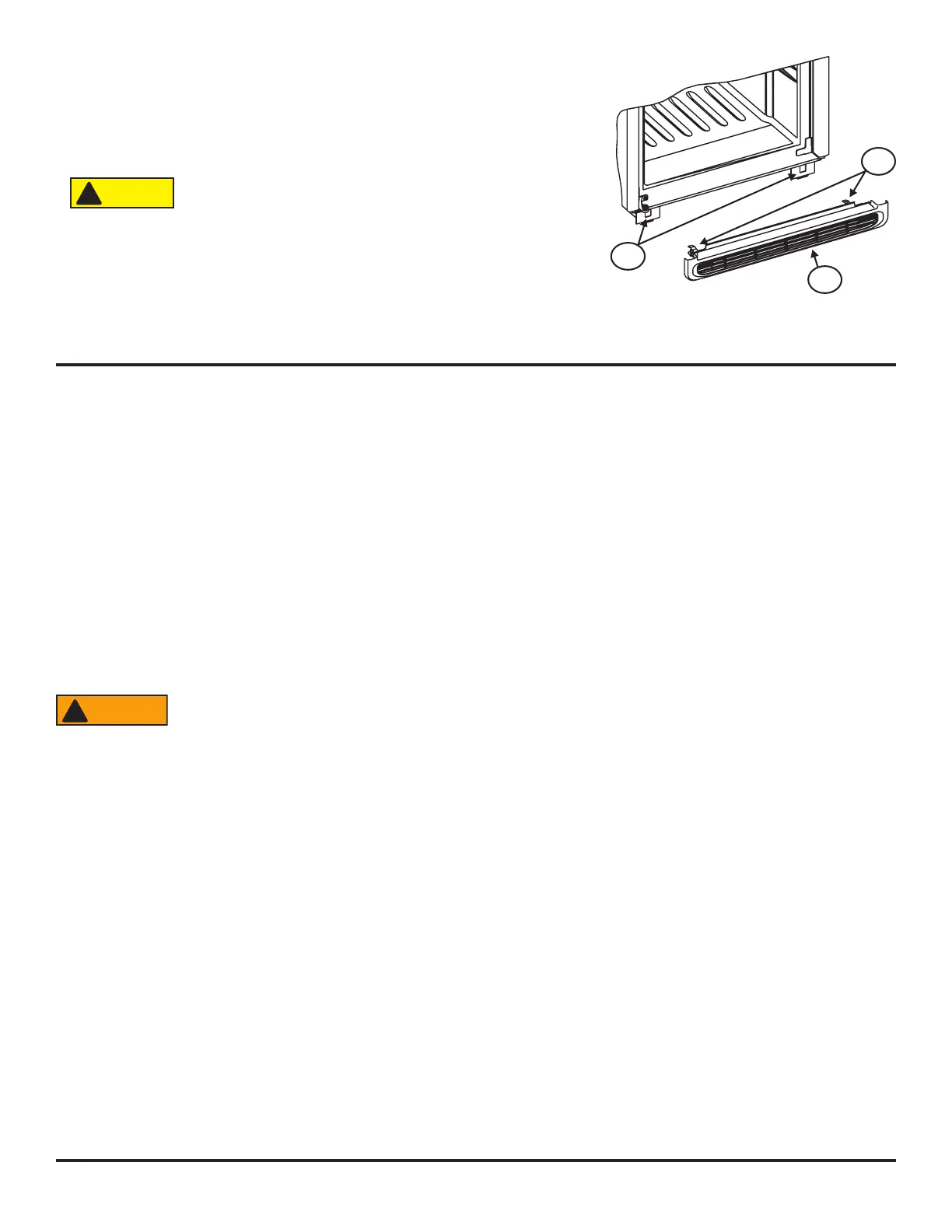

4. Install the bottom grill (See Art02292):
- Align the mounting clips [196] of the bottom grill [264] with the openings [265] in
the bottom rail of the refrigerator cabinet.
Carefully push both ends of the bottom grill equally to engage
the mounting clips in the bottom rail at the same time. If the
mounting clips engage the bottom rail one at a time, damage
to the bottom grill can result.
- Push the bottom grill toward the lower frame until the mounting clips “snap” into the
bottom rail.
Art02292
265
264
196
!
!
