Norcold DE / EV 0061 - Reverse the door swing (DC; DE; EV0061 models)

Installation Manual 8
Reverse the door swing (DC / DE / EV0061 models):
The refrigerator has door hinges that allow you to change the direction that the doors
open by moving the hinges to the opposite corner.
1. Remove the doors (See Art02288).
- Make sure that the doors are fully closed.
- Turn out and save the upper hinge pin [63].
- Turn out and save the center hinge pin caps [42].
- Open the upper door a small amount and pull the top of the upper door away from
the upper hinge of the refrigerator.
- Lift the upper door off of the center hinge pin [71].
- Turn out and save the lower hinge pin [64].
- Open the lower door a small amount and pull the bottom of the lower door away
from the lower hinge of the refrigerator.
- Pull the lower door down off of the center hinge pin.
Make sure that the plastic bushings [74] remain in the door hinges.
2. Change the position of the cabinet hinges:
- Remove the screws [41] from the upper cabinet hinge [66].
- Put this hinge on the other side of the refrigerator cabinet as the lower cabinet
hinge.
- Make sure that the center of the hinge slots are aligned with the center of the
hinge screw holes in the refrigerator.
- Attach the hinge with the screws.
- Remove the screws [41] from the lower cabinet hinge [67].
- Put this hinge on the other side of the refrigerator cabinet as the upper cabinet
hinge.
- Make sure that the center of the hinge slots are aligned with the center of the
hinge screw holes in the refrigerator.
- Attach the hinge with the screws.
- Remove the screws [41] from the center cabinet hinge [235].
- Remove the center cabinet hinge.
- Turn the screws back into the original holes and tighten the screws.
- Remove the three screws on the opposite side of the refrigerator cabinet.
- Reverse the center cabinet hinge and put it on the opposite side of the refrigerator cabinet.
- Make sure that the center of the hinge slots are aligned with the center of the hinge screw holes in the refrigerator.
- Attach the hinge with the screws.
- Turn the center hinge pin [71] out of the center cabinet hinge.
- Reverse the center hinge pin and turn it down into the top of the center cabinet hinge.

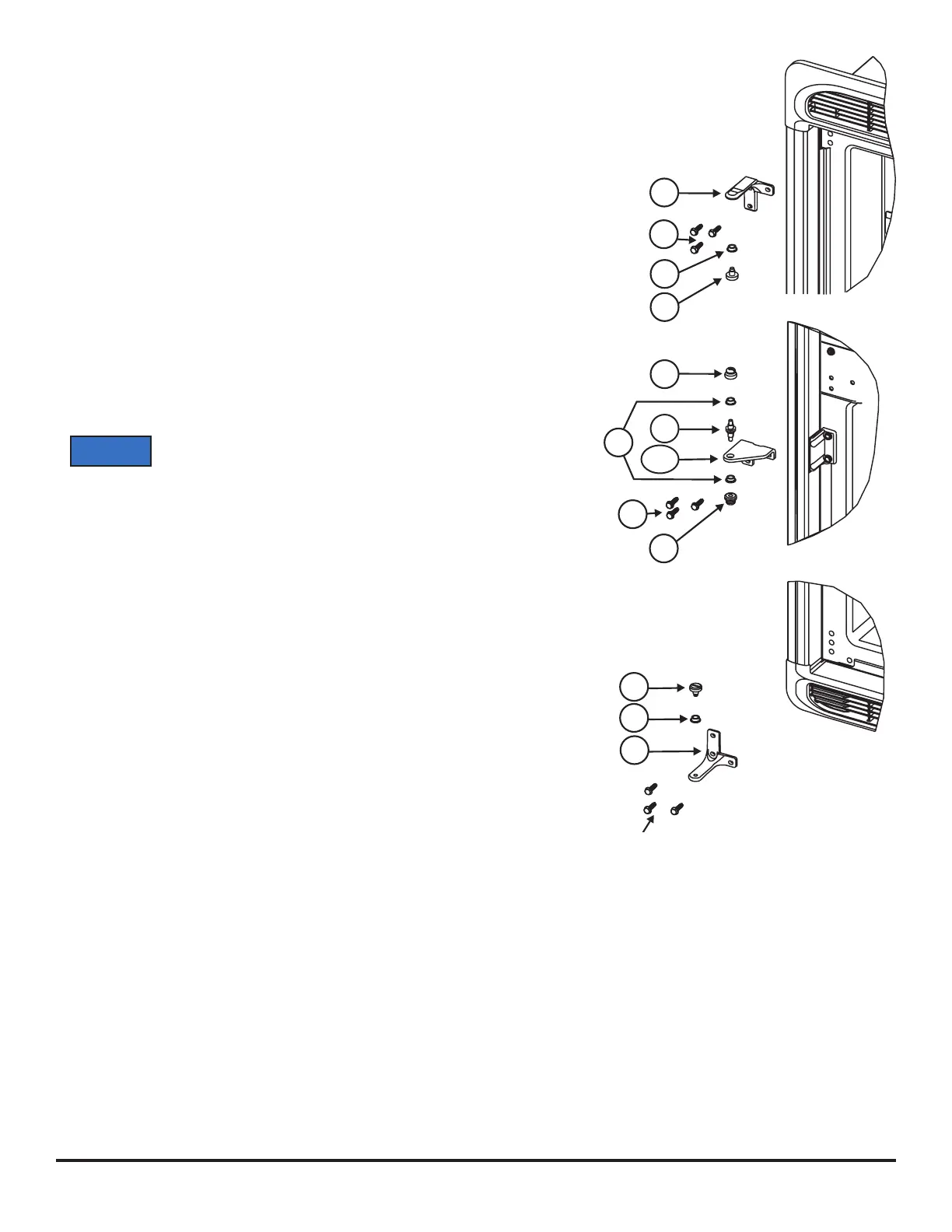

Art02288
66
74
63
42
71
235
74
42
64
74
67
41
41
41
NOTICE
