Norcold DE / EV 0061 - Installation Options; Install the Decorative Door Panel(S)

Installation Manual 4
Installation Options
Install the decorative door panel(s):
1. Make a decorative door panel [38] (See Art02286).
The decorative panels must be 3/16 inch or less in thickness and must be within ± 1/32 inch of the following
dimensions.
- For DE / EV0041 models, the door panel must be 17 13/16 inches wide x 23 5/8 inches tall.
- If the door panel has a raised panel, the size of the raised part of the panel must be less than 17 7/16 inches wide x 23 5/16
inches tall.
- For DC / DE / EV0061 models, the lower door panel must be 17 13/16 inches wide x 27 1/4 inches tall.
- If the door panel has a raised panel, the size of the raised part of the panel must be less than 17 7/16 inches wide x 26 15/16
inches tall.
- For DC / DE / EV0061 models, the upper door panel must be 17 13/16 inches wide x 16 1/2 inches tall.
- If the door panel has a raised panel, the size of the raised part of the panel must be less than 17 7/16 inches wide 16 3/16
inches tall.
2. Pull the panel retainer [37] off the hinge side of the door [39].
3. Push the decorative door panel into the slots [157] of the door.
4. Push the panel retainer into the original position on the door.

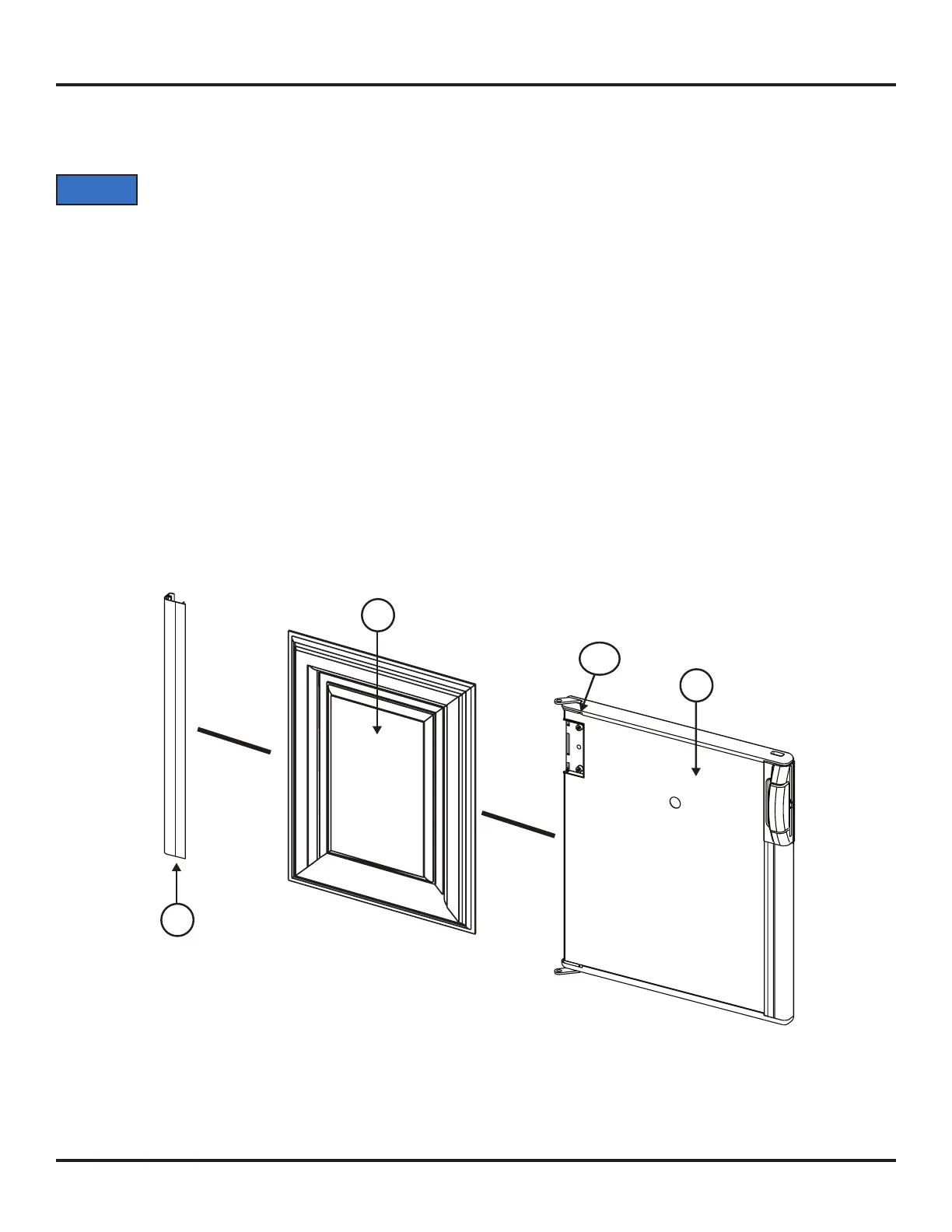

Art02286
37
38
39
157
NOTICE
