Installation Manual 6
- Put this hinge on the other side of
the refrigerator as the upper cabinet
hinge.
- Make sure that the center of the
hinge slots are aligned with the
center of the hinge screw holes in
the refrigerator.
- Attach the cabinet hinge with the
screws.

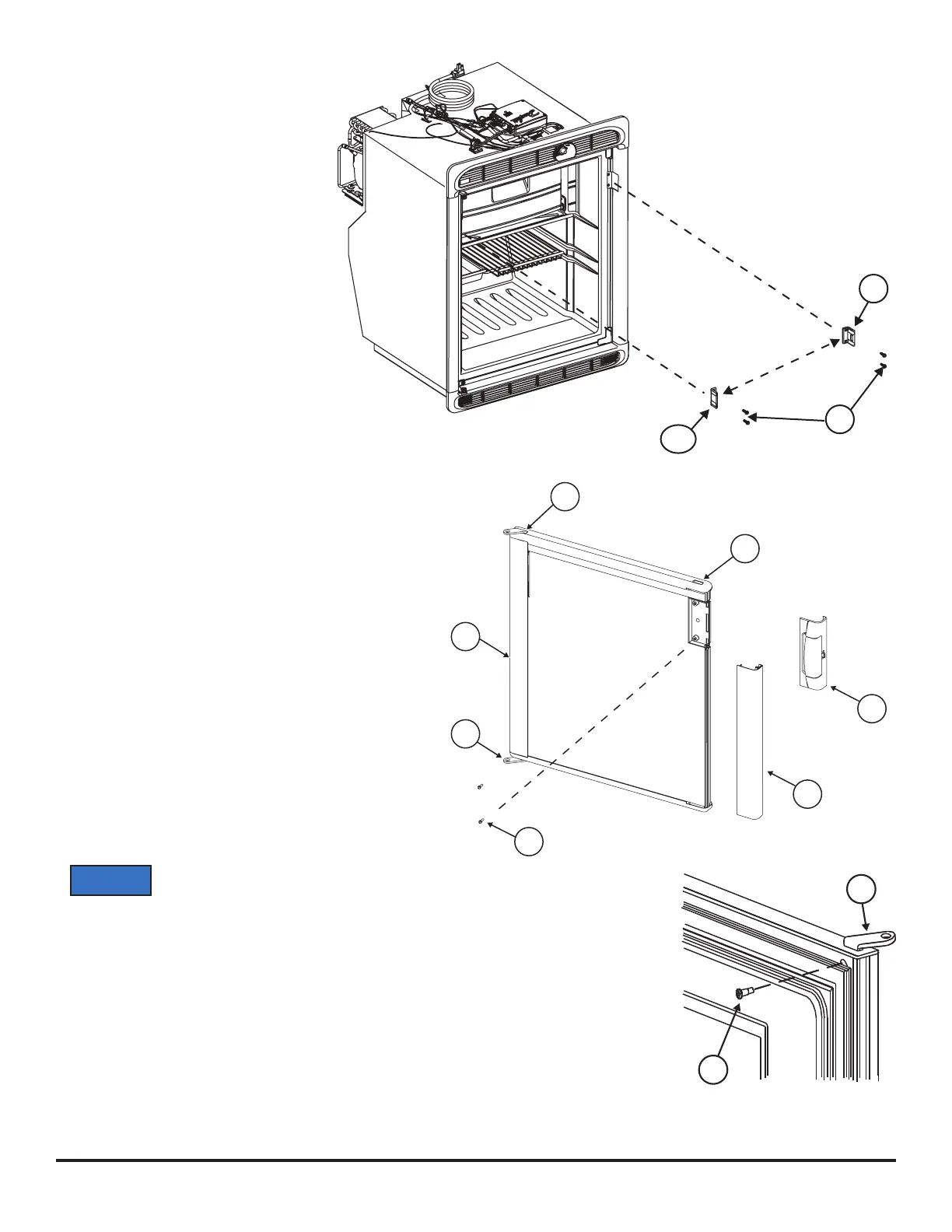

4. Change the position of the door
hinges and handle (See Art00985 and
Art02287):
- Remove and save the screws [41]
that attach the door handle [70] to the
refrigerator door.
- Remove the door handle.
- Pull the panel retainers [37]off the
door.
- Reverse the panel retainers and push
onto opposite side of the door.
- Reverse the door handle and put on the other side of
the door.
- Attach the door handle with the screws.
- Remove and save the plastic cap [42] that is opposite
the upper hinge of the door.
- Remove the screw [72] from the door hinges [73].
- Remove the upper door hinge.
- Reverse the hinge and put on the opposite side of the
door as the lower door hinge.
- Remove the lower door hinge.
- Reverse the hinge and put on the opposite side of the
door as the upper door hinge.
- Attach each of these hinges with the screws that were
removed from the other side.
You may need to pierce a hole in the door
gasket to allow the screw to engage the door hinge.
- Put the plastic cap in the hole that is opposite the upper hinge.
