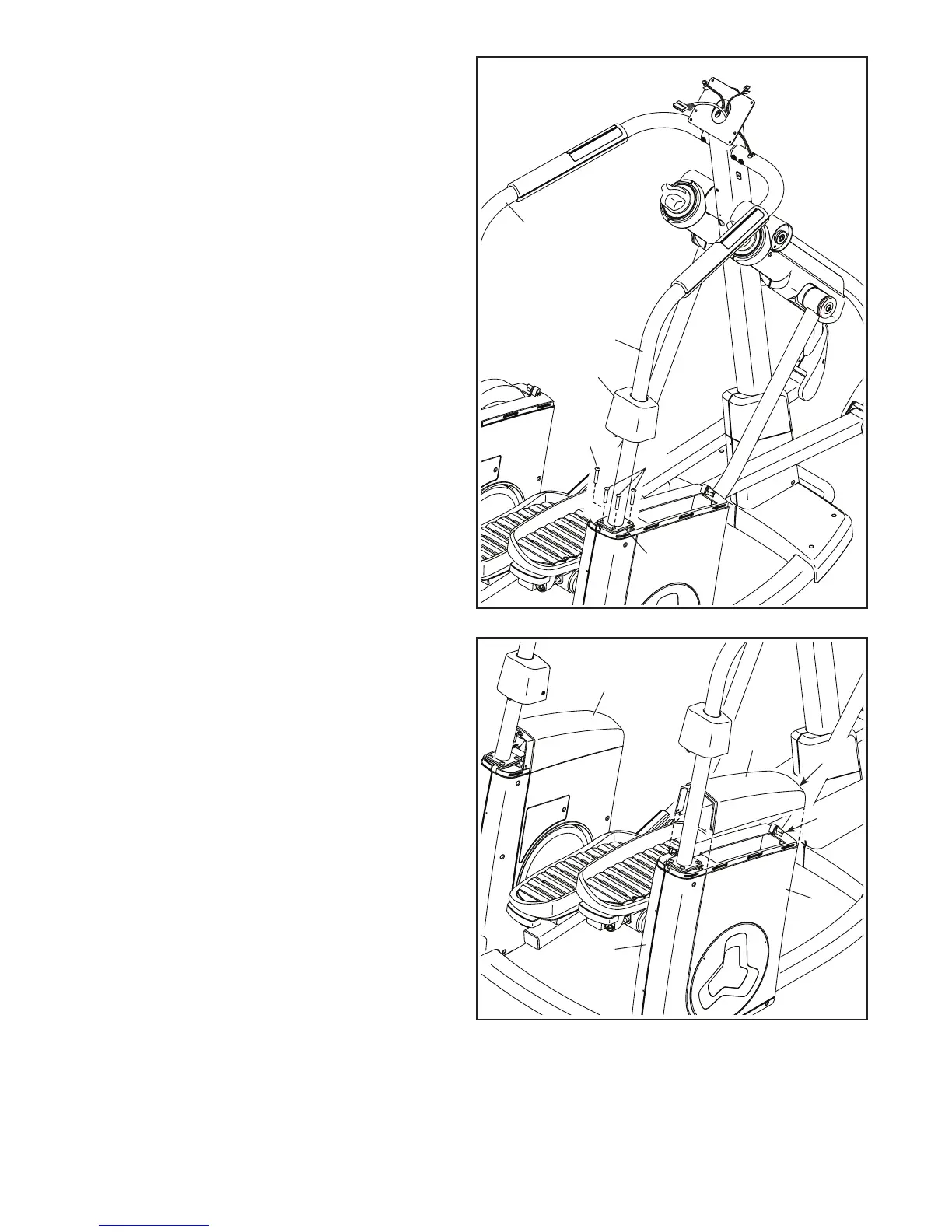

5. Attach the lower end of the Right Handrail (5) to
the Frame (1) with four M8 x 20mm Screws (61);
do not tighten the Screws yet.
Attach the lower end of the Left Handrail (4)
in the same way.
See step 2. Tighten the four M8 x 20mm Screws
(61). Then, slide the Right and Left Upright
Covers (60, 96) downward and press them onto
the Right and Left Frame Post Covers (73, 75);
avoid pinching the wires.
See step 4. Tighten the four M8 x 45mm
Bolts (130).
Then, tighten the eight M8 x 20mm
Screws (61).
Do not press the Right and Left Handrail
Covers (7, not shown) into place yet.
6
6. Align the tab on the Right Shield Cap (76) with
the indicated hole in the Right Outer and Inner
Shields (17, 19).
Press the Right Shield Cap (76) onto the Right
Outer and Inner Shields (17, 19).
Attach the Left Shield Cap (102) in the same
way.
76
102
17
19
61
61
Hole
Tab
