11

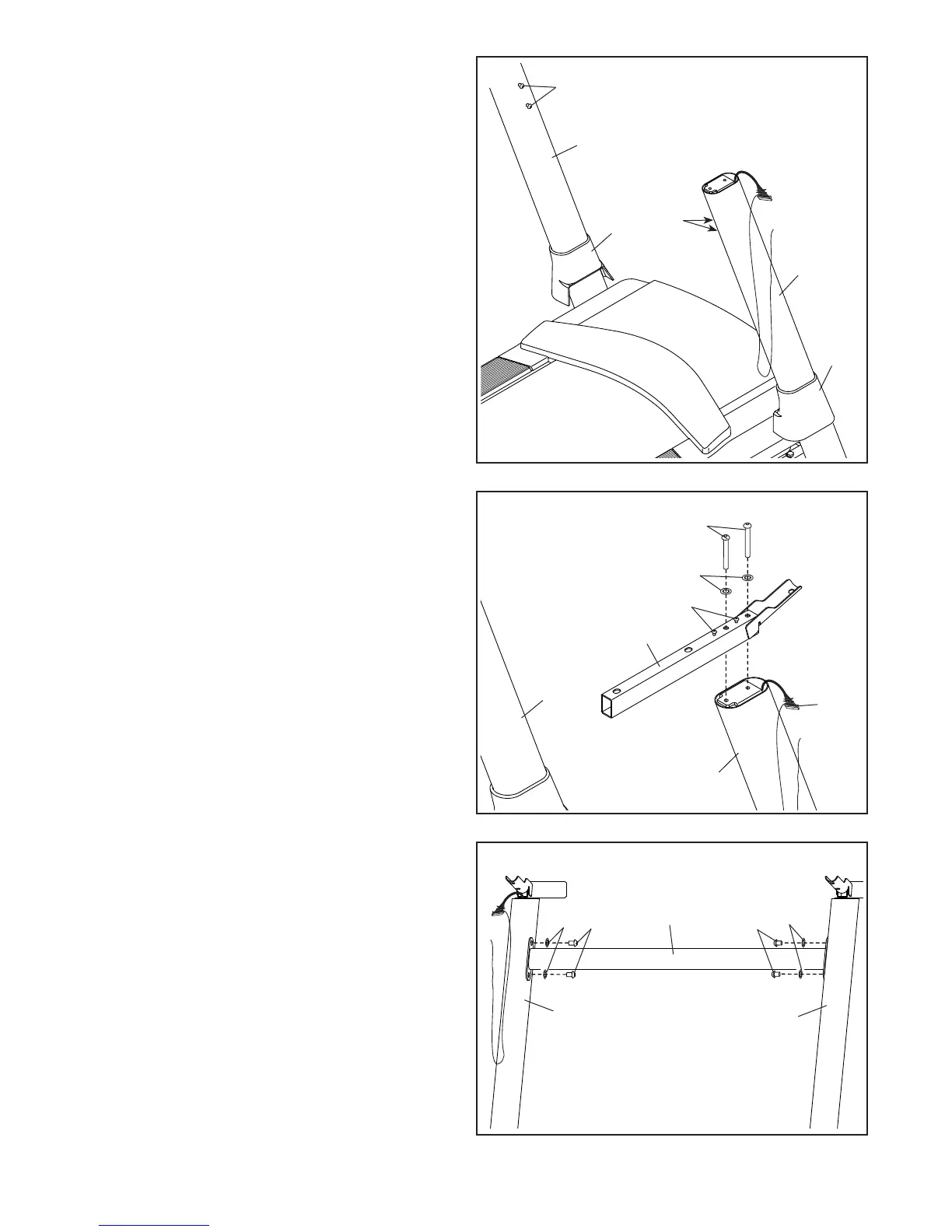

7. Attach a Handrail (72) to the Right Upright (79)
with two 5/16" x 2" Screws (5) and two 5/16"
Star Washers (7); start both Screws, and then
tighten them. Make sure not to pinch the
Upright Wire (80).
Then, remove and discard the two indicated
screws (E).
Attach the other Handrail (not shown) to the
Left Upright (78) in the same way. Note: There
are no wires on the left side.
7
80
72
5
7
79
78
6. Remove and save the four indicated 5/16" x
3/4" Screws (13).
Identify the Left and Right Base Covers (86, 85).
Slide the Left Base Cover onto the Left Upright
(78), and slide the Right Base Cover onto the
Right Upright (79). Do not press the Base
Covers into place yet.
86
79
85
6
78
13
13
E
8. Carefully slide the Upright Crossbar (77)
between the Left and Right Uprights (78, 79).
Attach the Upright Crossbar with the four 5/16" x
3/4" Screws (13) that you removed in step 6
and four 5/16" Star Washers (7); start all four
Screws, and then tighten them.
8
7
13
13
7
78
79
77
