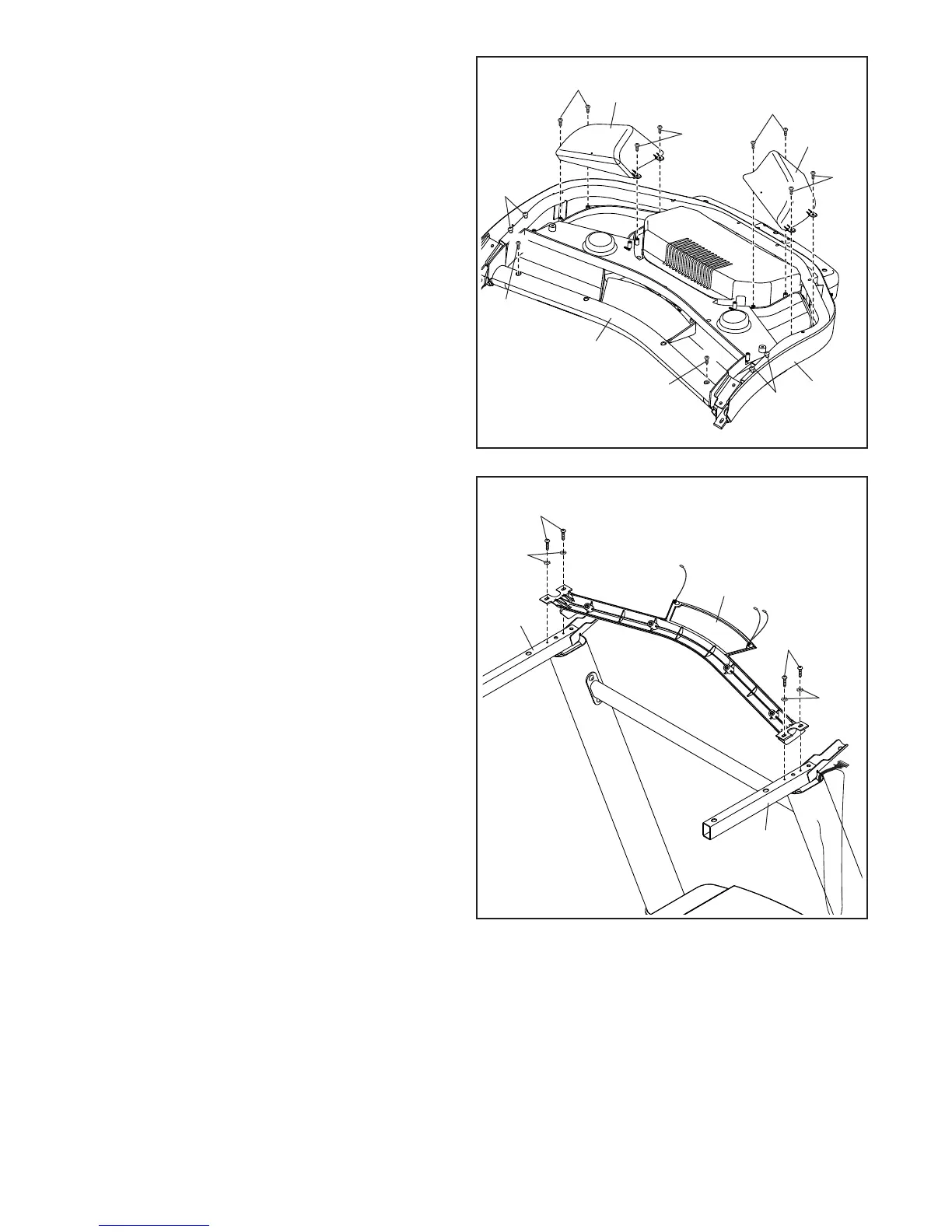

9. Set the Console Base (93) face down on a soft
surface to avoid scratching the Console Base.
Remove and discard the two indicated screws
(F). Then, remove the Pulse Crossbar (75).
Next, identify the Left and Right Trays (89, 90).
Attach the Trays to the Console Base (93) with
eight #8 x 1/2" Screws (10); do not overtighten
the Screws.
Then, remove and save the four indicated
5/16" x 3/4" Screws (13).
10
10
75
72
10
10. IMPORTANT: To avoid damaging the Pulse
Crossbar (75), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (75) as shown. Attach
the Pulse Crossbar to the Handrails (72) with
four #10 x 3/4" Screws (9) and four #10 Star
Washers (8); start all four Screws, and then
tighten them.
9
9
8
8
72
13
13
To Next Page
