10

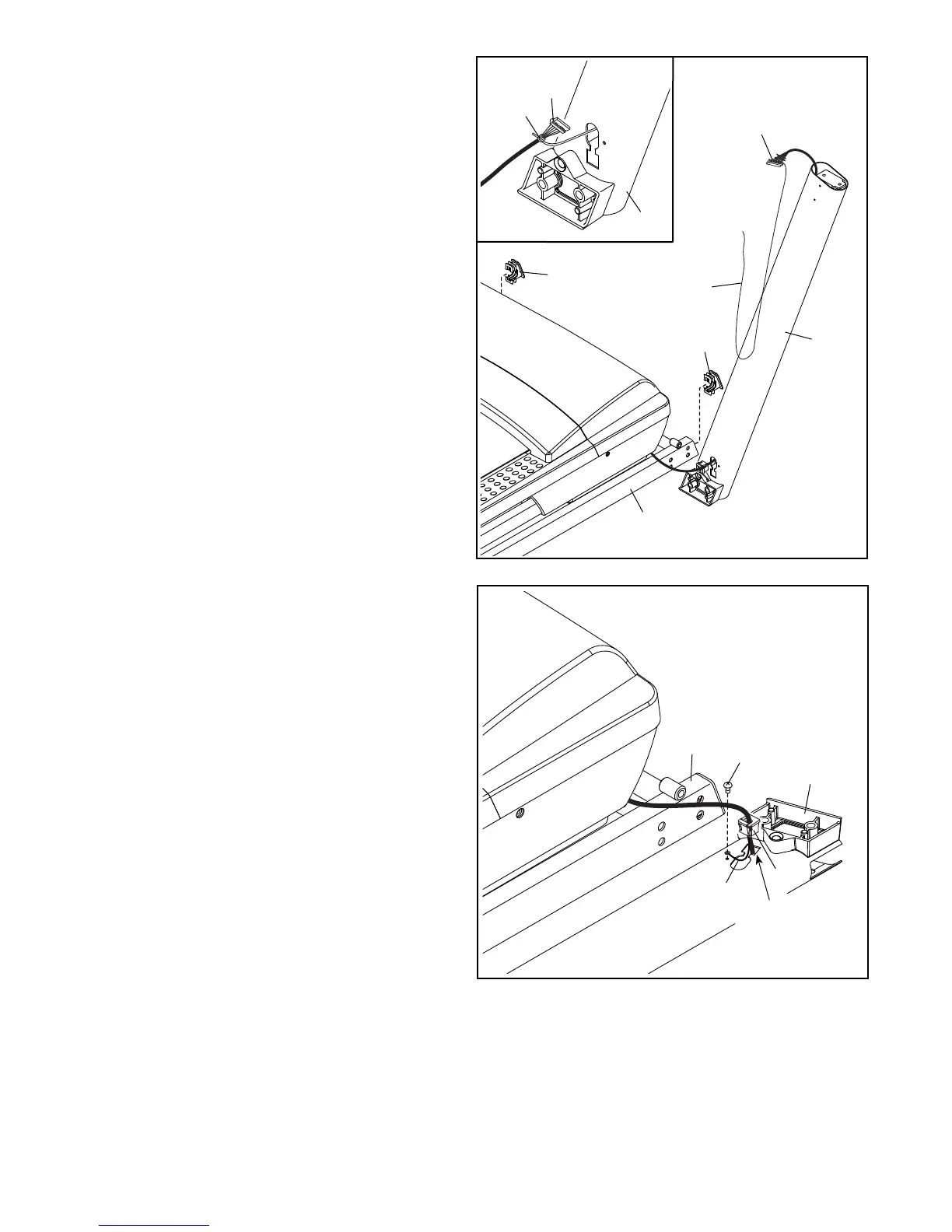

2. Make sure that the power cord is unplugged.
Press a Base Cap (74) into each side of the
Base (94).
Next, remove the tie securing the Upright Wire
(81) to the front of the Base (94).
Identify the Right Upright (90). Have a second
person hold the Right Upright near the Base (94).
See the inset drawing. Tie the wire tie in the
Right Upright (90) securely around the end of
the Upright Wire (81). Then, insert the Upright
Wire into the lower end of the Right Upright as
you pull the other end of the wire tie through the
Right Upright.
3. Lay the Right Upright (90) near the Base (94).
Press the Grommet (77) into the square hole in
the Right Upright (90). Make sure not to pinch
the ground wire.
Then, attach the ground wire to the Right Upright
(90) with a #8 x 1/2" Silver Screw (10).
94
94
90
90
81
10
90
Wire
Tie
Wire
Tie
2
3
81
77
Ground
Wire
Square
Hole
74
74
To Next Page
