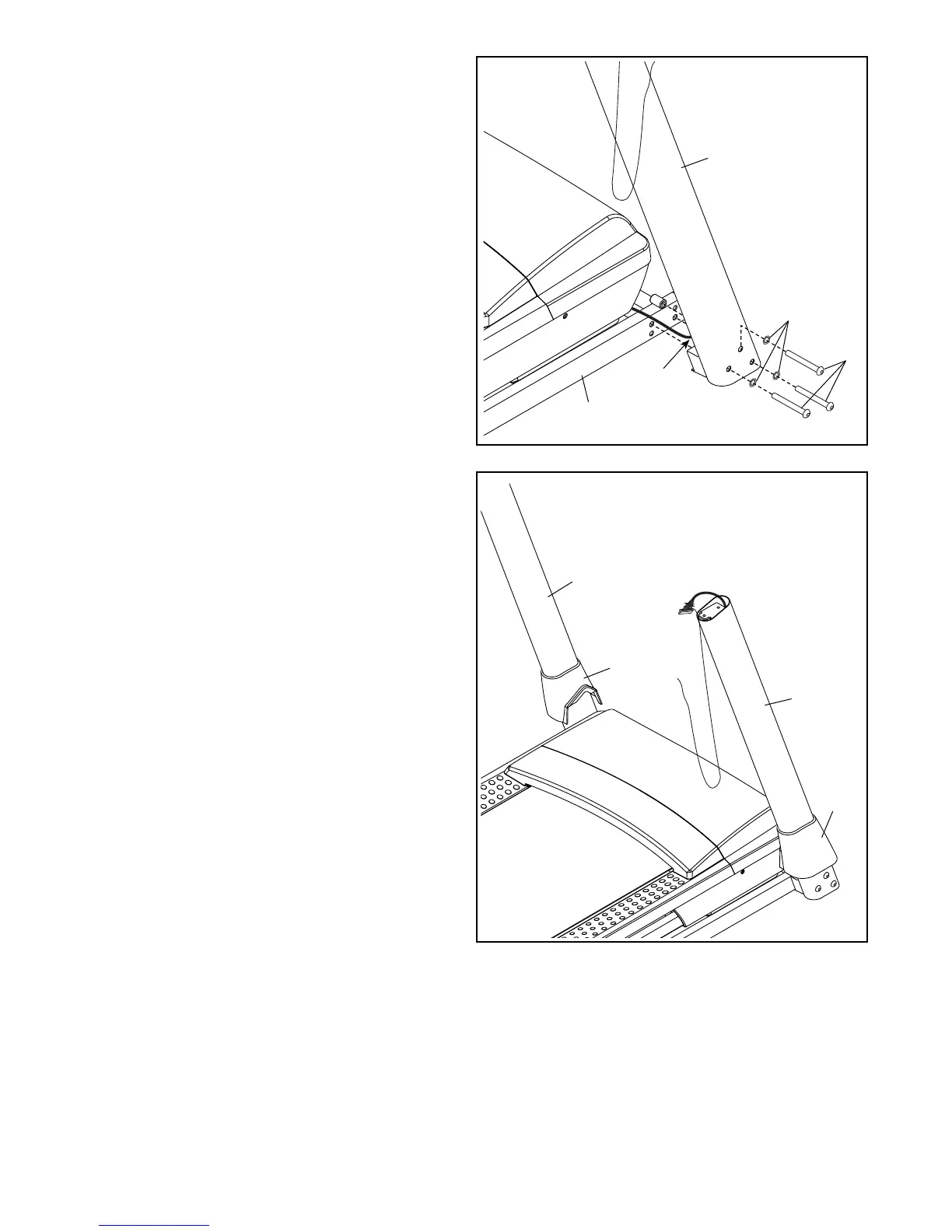

4. Hold the Right Upright (90) against the Base
(94). Be careful not to pinch the wires.
Partially tighten three 3/8" x 4" Screws (7) with
three 3/8" Star Washers (13) into the Right
Upright and the Base; do not fully tighten the
Screws yet.
Attach the Left Upright (not shown) in the
same way. Note: There are no wires on the left
side.
90
4
7
13
94
Wires
5. Identify the Left and Right Base Covers (82, 83).
Slide the Left Base Cover onto the Left Upright
(89), and slide the Right Base Cover onto the
Right Upright (90). Do not press the Base
Covers into place yet.
82
90
83
5
89
To Next Page
