15

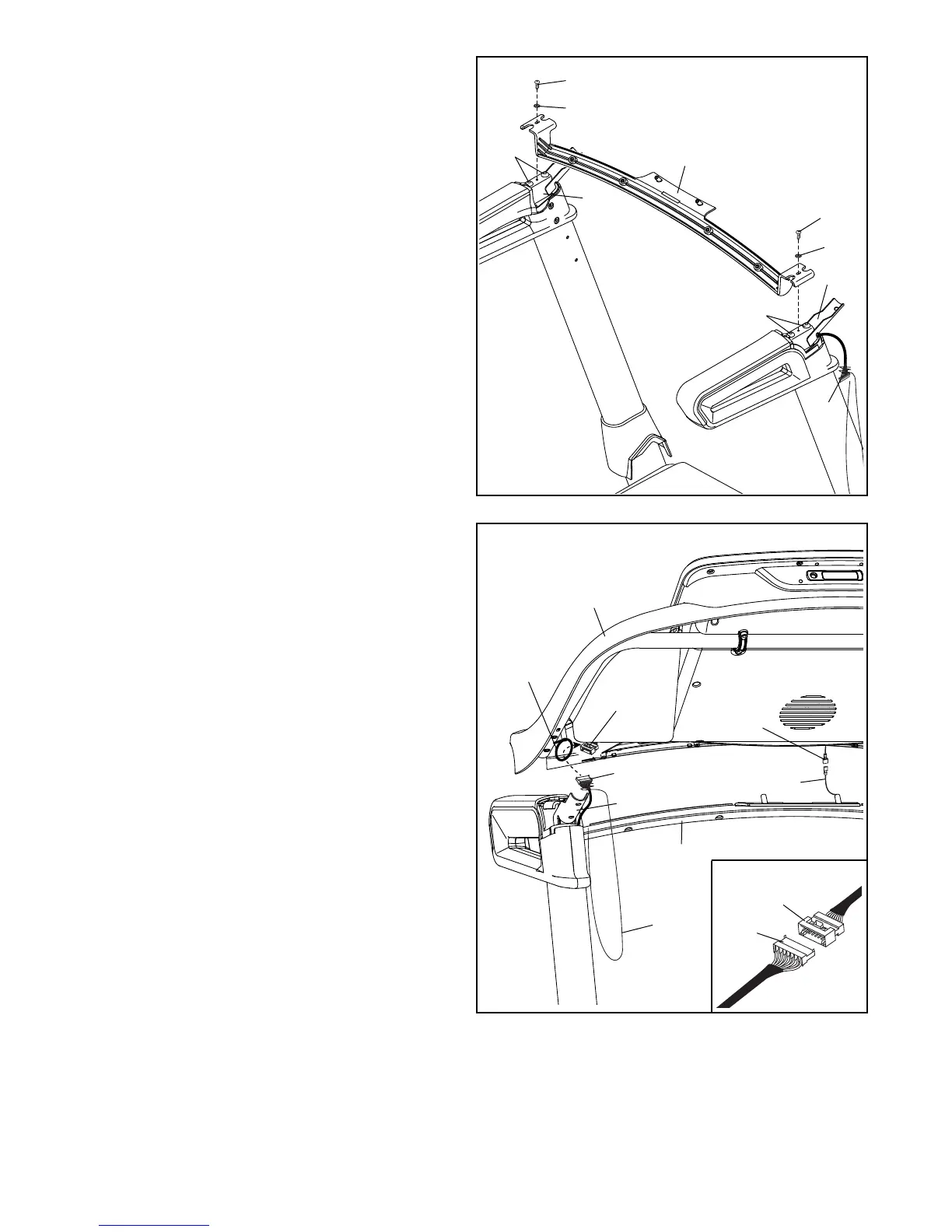

12. IMPORTANT: To avoid damaging the Pulse
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9).
Orient the Pulse Crossbar (93) as shown. Attach
the Pulse Crossbar to the Handrails (86) with two
#10 x 3/4" Screws (9) and two #10 Star Washers
(5); start both Screws, and then tighten them.
Make sure not to pinch the Upright Wire (81).
Then, firmly tighten the four 5/16" x 2 1/2"
Screws (28).
12
9
9
5
5
28
28
86
93
86
81
13. With the help of a second person, hold the con-
sole assembly near the Handrails (86) (only one
side is shown).
Connect the ground wire from the console
assembly to the Console Ground Wire (58) on
the Pulse Crossbar (93).
Next, insert the Upright Wire (81) through the
indicated looped tie on the console assembly.
See the inset drawing. Connect the Upright
Wire (81) to the console wire. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Then, remove the wire tie from
the Upright Wire.
13
Console
Assembly
81
81
Wire
Tie
Console
Wire
86
58
Ground
Wire
93
Console
Wire
Tie
To Next Page
