16

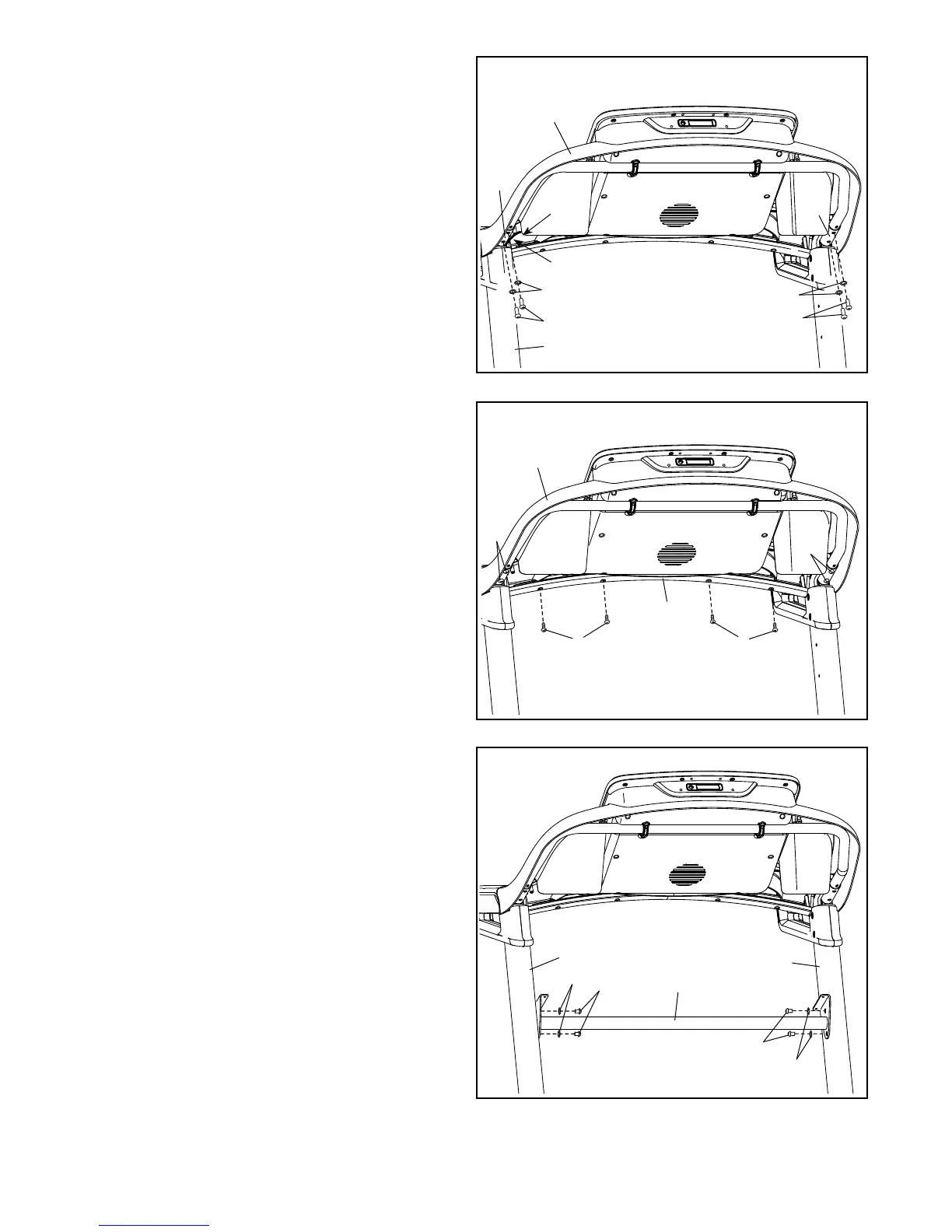

14. Set the console assembly on the brackets on
the Handrails (86). Make sure not to pinch any
wires.
Attach the console assembly with the four 5/16"
x 3/4" Screws (4) that you removed in step 10
and four 5/16" Star Washers (11); do not fully
tighten the Screws yet.
Pull the tie tight against the Upright Wire (81)
and cut off the end of the tie.
14
86
Console
Assembly
4
4
81
86
11
11
15. Attach the Pulse Crossbar (93) to the console
assembly with four #8 x 1/2" Screws (1); start all
four Screws, and then tighten them.
Then, firmly tighten the four 5/16" x 3/4"
Screws (4).
15
93
Console
Assembly
4
4
1 1
16
11
4
11
90
90
89
41
4
16. Carefully slide the Upright Crossbar (41)
between the Left and Right Uprights (89, 90).
Attach the Upright Crossbar with the four
5/16" x 3/4" Screws (4) that you removed in step
6 and four 5/16" Star Washers (11); start all four
Screws, and then tighten them.
Tie
To Next Page
