19
23. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the oor or carpet, place a mat under the treadmill. To
avoid damage to the console, keep the treadmill out of direct sunlight. Keep the included hex keys in a secure
place; one of the hex keys is used to adjust the walking belt (see pages 34 and 35). Note: Extra parts may be
included.
38
3
56
12
H
53
21

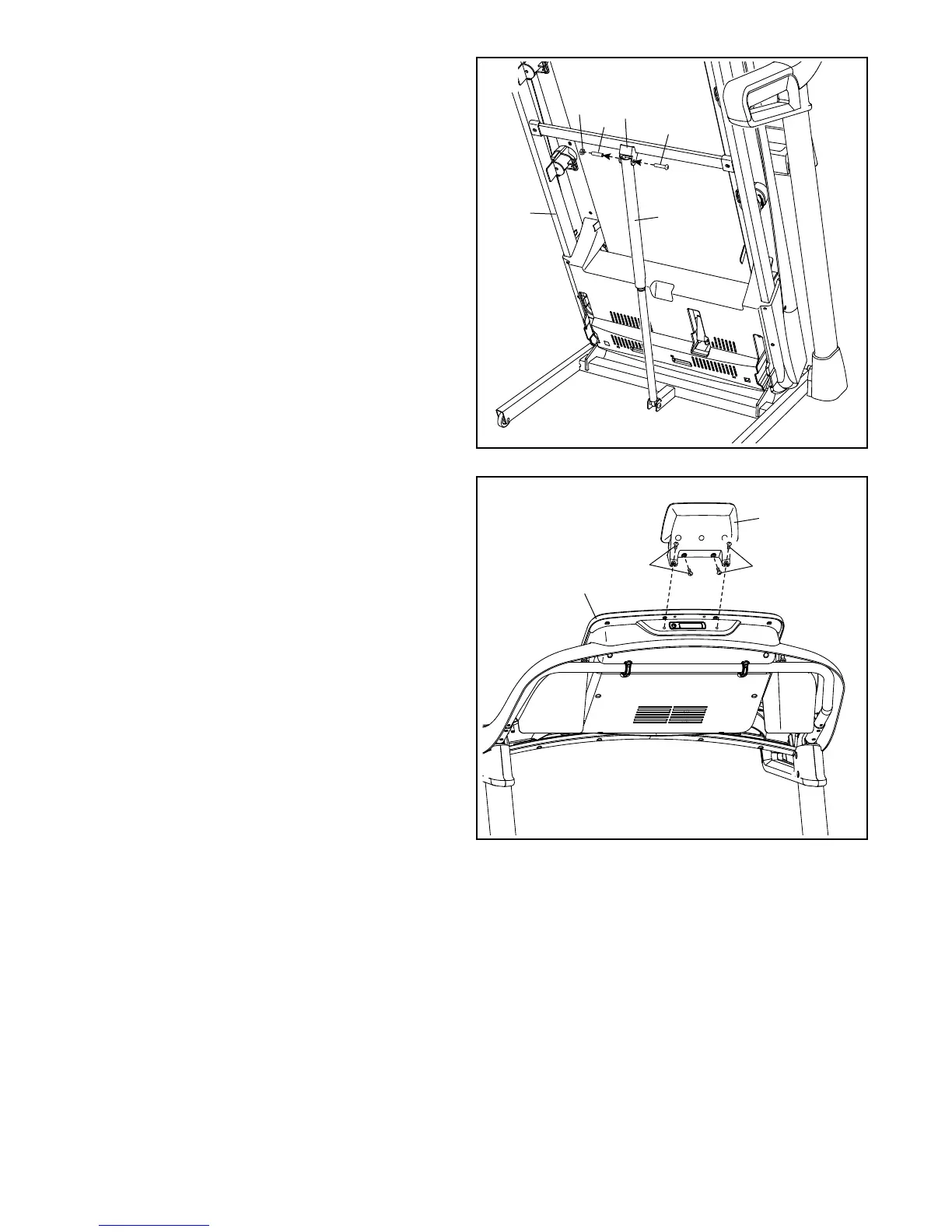

22. Attach the Tablet Holder (84) to the back of the
console assembly with four #8 x 1/2" Machine
Screws (40); start all four Machine Screws,
and then tighten them. Do not overtighten the
Machine Screws.
22
84
40
40
Console
Assembly
21. Remove the 5/16" Nut (12) and the 5/16" x 2 1/4"
Bolt (3) from the bracket on the Latch Crossbar
(38).
Align the upper end of the Storage Latch (53)
with the bracket on the Latch Crossbar (38),
and insert the 5/16" x 2 1/4" Bolt (3) through the
bracket and the Storage Latch. This will push
a spacer (H) out of the other end; discard the
spacer.
Next, tighten the 5/16" Nut (12) onto the 5/16" x
2 1/4" Bolt (3); do not overtighten the Nut; the
Storage Latch (53) must be able to pivot.
Then, lower the Frame (56) (see HOW TO
LOWER THE TREADMILL FOR USE on page
32).
