12
12
13

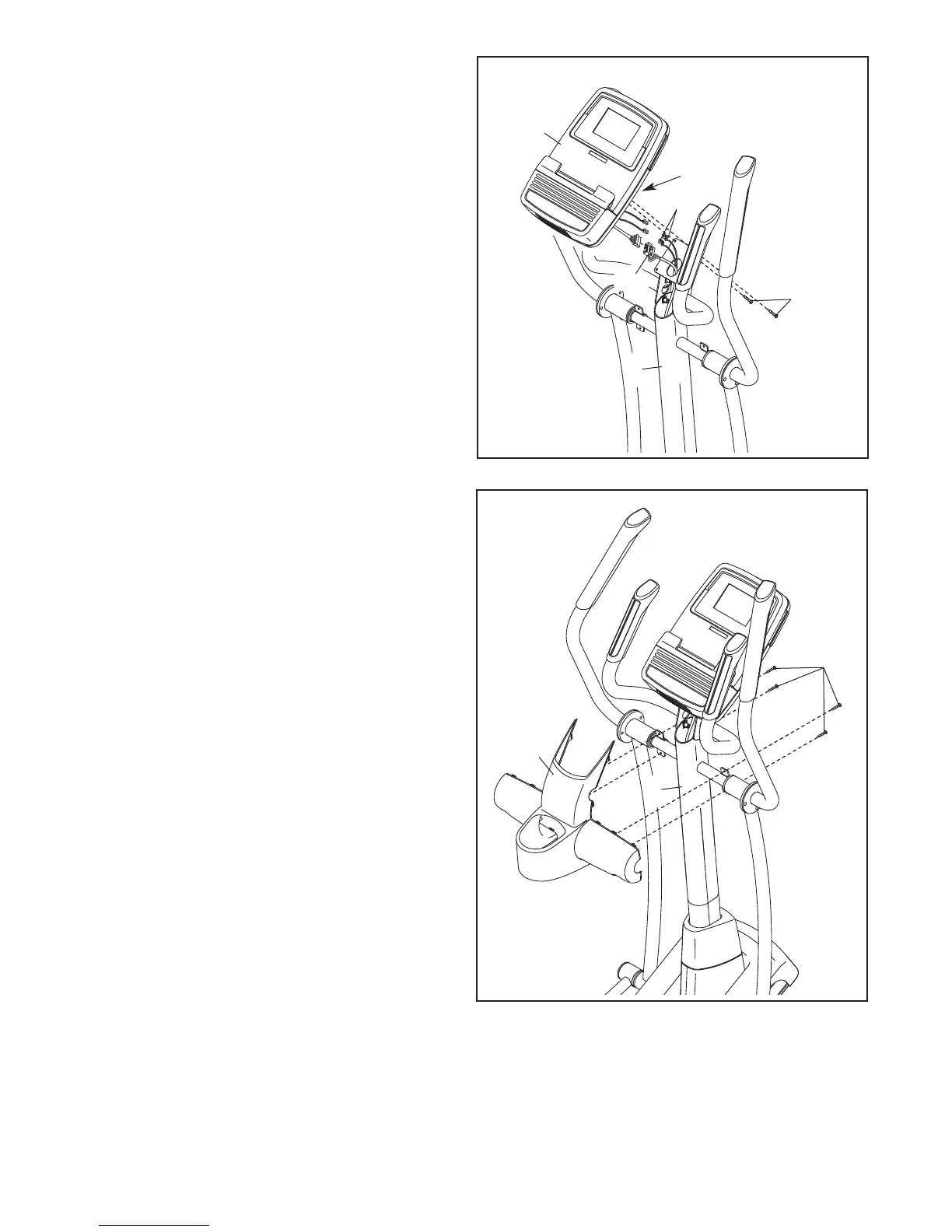

12. Untie and discard the wire tie attached to the
Wire Harness (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
C
onsole to the Wire Harness (60) and to the
Pulse Wires (105).
Insert the excess wire downward into the
Upright (5) or upward into the Console (33).
Tip: Avoid pinching the wires. Finger tighten
two M4 x 19mm Screws (156) through the
Upright (5) into the upper end of the Console
(33). Make sure to start the Screws into the
indicated upper holes in the Console.
Do not tighten the M4 x 19mm Screws (156)
yet. You will tighten the Screws at the end of
step 14.
33
105
5
60
25
156
5
13. Orient the Rear Upright Cover (25) as shown.
Attach the Rear Upright Cover (25) to the
Upright (5) with four M4 x 19mm Screws (156).
Tip: It may be necessary to bend the upper
end of the Rear Upright Cover gently into
place around the Upright.
Avoid pinching
the wires
156
Upper
Holes
To Next Page
