Inspect and tighten all parts of the elliptical regularly.
R
eplace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
t
o the console, keep liquids away from the con-
sole and keep the console out of direct sunlight.
HEART RATE MONITOR TROUBLESHOOTING
If the handgrip heart rate monitor does not function
properly, see step 5 on page 18.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, press
and hold the Workouts buttons for several seconds
until the test mode appears in the display.
Press the Workouts button again. Press the Digital
Power Ramp increase or decrease button to calibrate
the ramp. The ramp will move upward and downward
as it calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, press the Workouts button repeatedly to exit the
test mode.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, first unplug the power
cord. Using a flat screwdriver, release the tabs on the
Access Cover (20) and pry the Access Cover upward
off the elliptical.

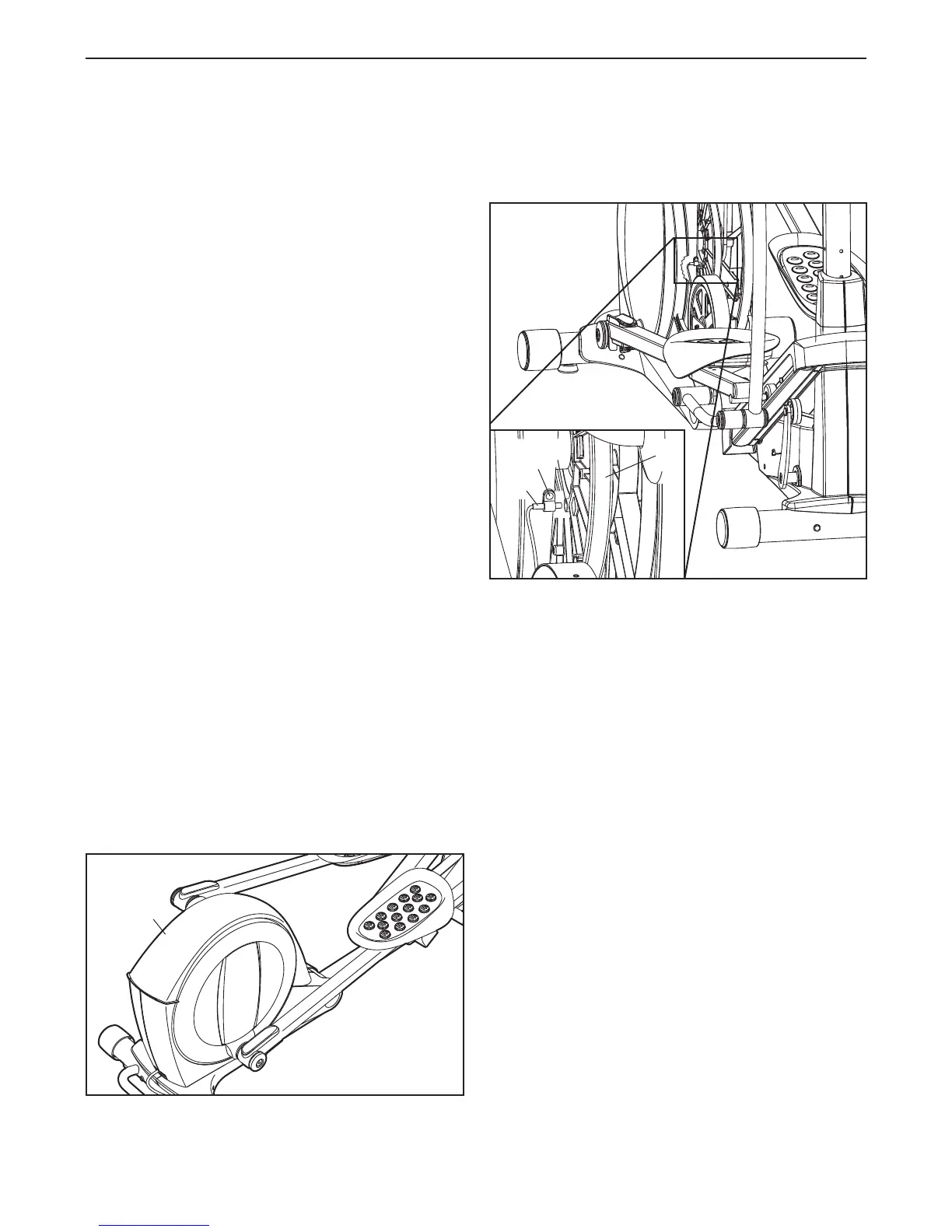

Next, look into the access opening and locate the
R
eed Switch (69). Rotate the Large Pulley (74) until a
Pulley Magnet (75) is aligned with the Reed Switch.
Next, loosen, but do not remove, the indicated M4 x
16mm Screw (106). Slide the Reed Switch (69)
slightly toward or away from the Pulley Magnet (75).
Then, retighten the M4 x 16mm Screw.
Plug in the power cord and rotate the large pulley for a
moment. Repeat these actions until the console dis-
plays correct feedback. When the reed switch is
correctly adjusted, reattach the access cover.
MAINTENANCE AND TROUBLESHOOTING
20
106
75
69
74
