23
H
OW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
l
evel, the drive belt may need to be adjusted.
T

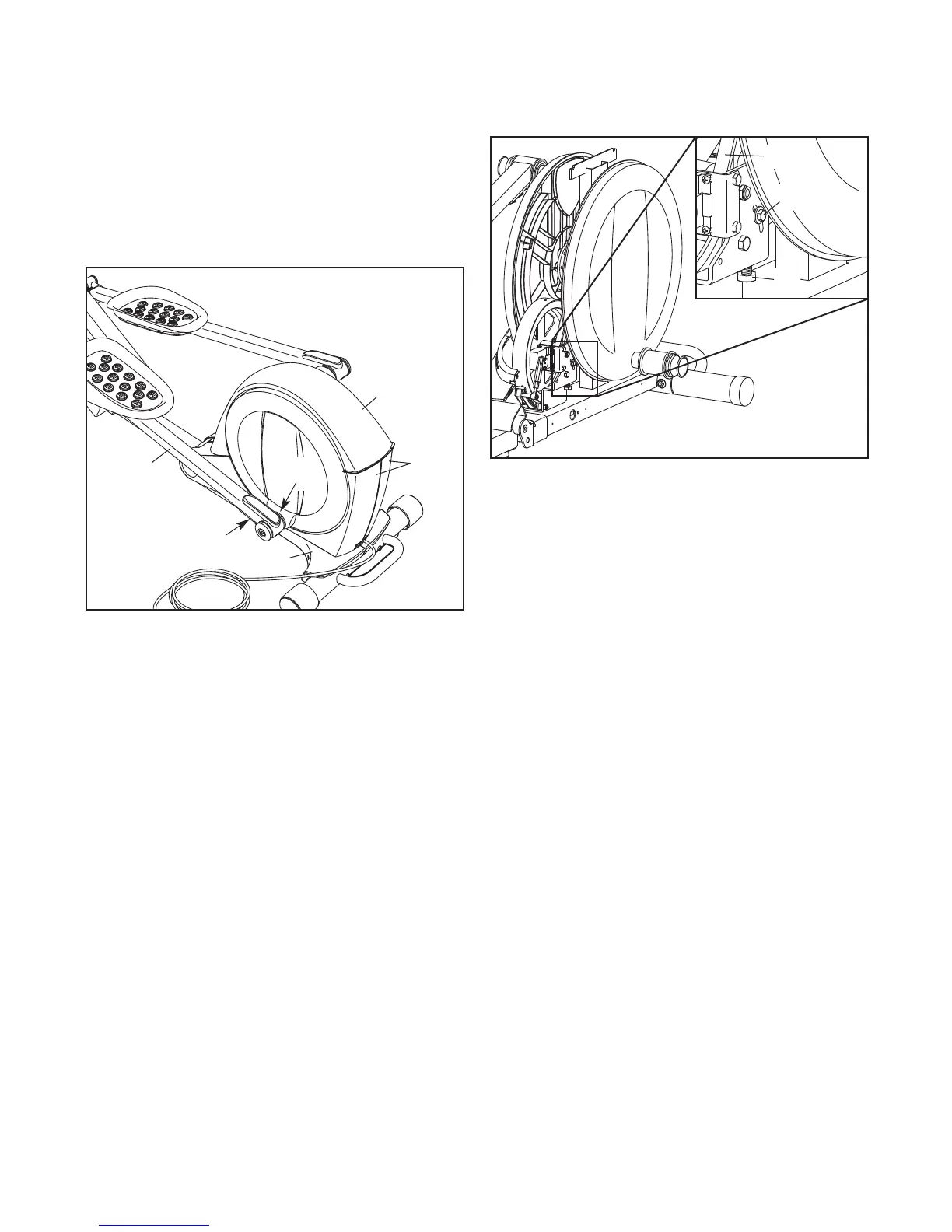

o adjust the drive belt, first unplug the power cord.
Using a flat screwdriver, release the tabs on the
Access Cover (20) and pry the Access Cover upward
off the elliptical.
Next, lift the Latch (50) on the underside of the Left
Pedal Arm (13), and then lift the Left Pedal Arm off the
left Pedal Arm Sleeve (46).
See EXPLODED DRAWING C on page 31. Remove
the M4 x 16mm Round Head Screws (152) and the
M4 x 42mm Screws (153) from the Right and Left
Shields (18, 19). (Note: Make sure to note which
size Screws come from which holes.) Then, care-
fully remove the Left Shield.
L
oosen the Pivot Screw (97). Tighten the Belt
Adjustment Screw (85) until the Drive Belt (38) is tight.
When the Drive Belt is tight, tighten the Pivot Screw.
When you are finished, reattach the left shield, replace
the left pedal arm, and reattach the access cover.
Then, plug in the power cord.
13
50
19, 18
153
46
85
38
97
20
