7

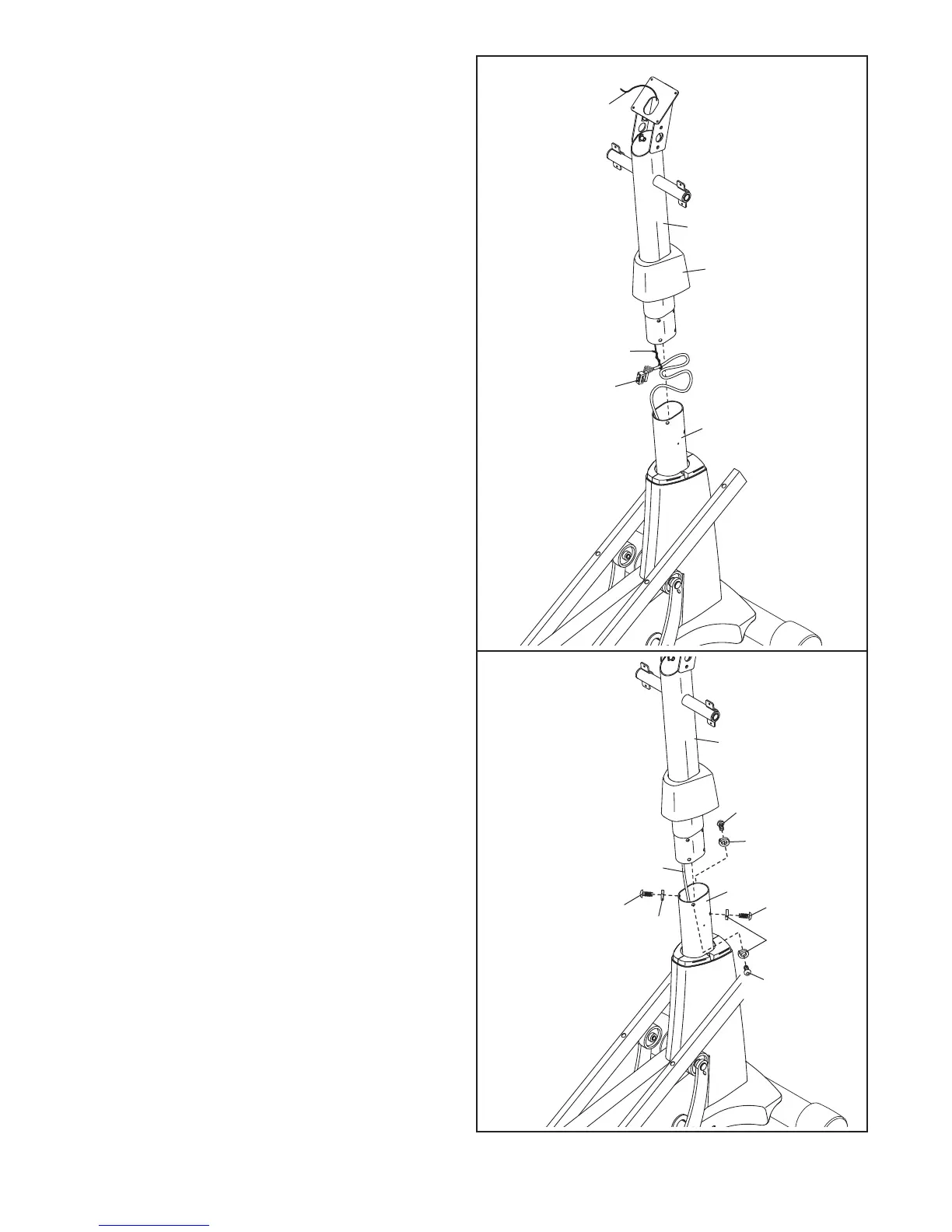

3. See drawing 3a. Identify and orient the Upright
(5) and the Top Cover (27) as shown.
Slide the Top Cover (27) upward onto the
Upright (5).
Have a second person hold the Upright (5) and
the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed through the
Upright.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
See drawing 3b. Tip: Avoid pinching the
Wire Harness (60). Insert the Upright (5) into
the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.
3a
3b
5
Wire Tie
Wire Tie
5
27
60
60
102
102
102
102
103
103
103
1
1
Avoid pinching the
Wire Harness (60)
To Next Page
