• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
• Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
ASSEMBLY

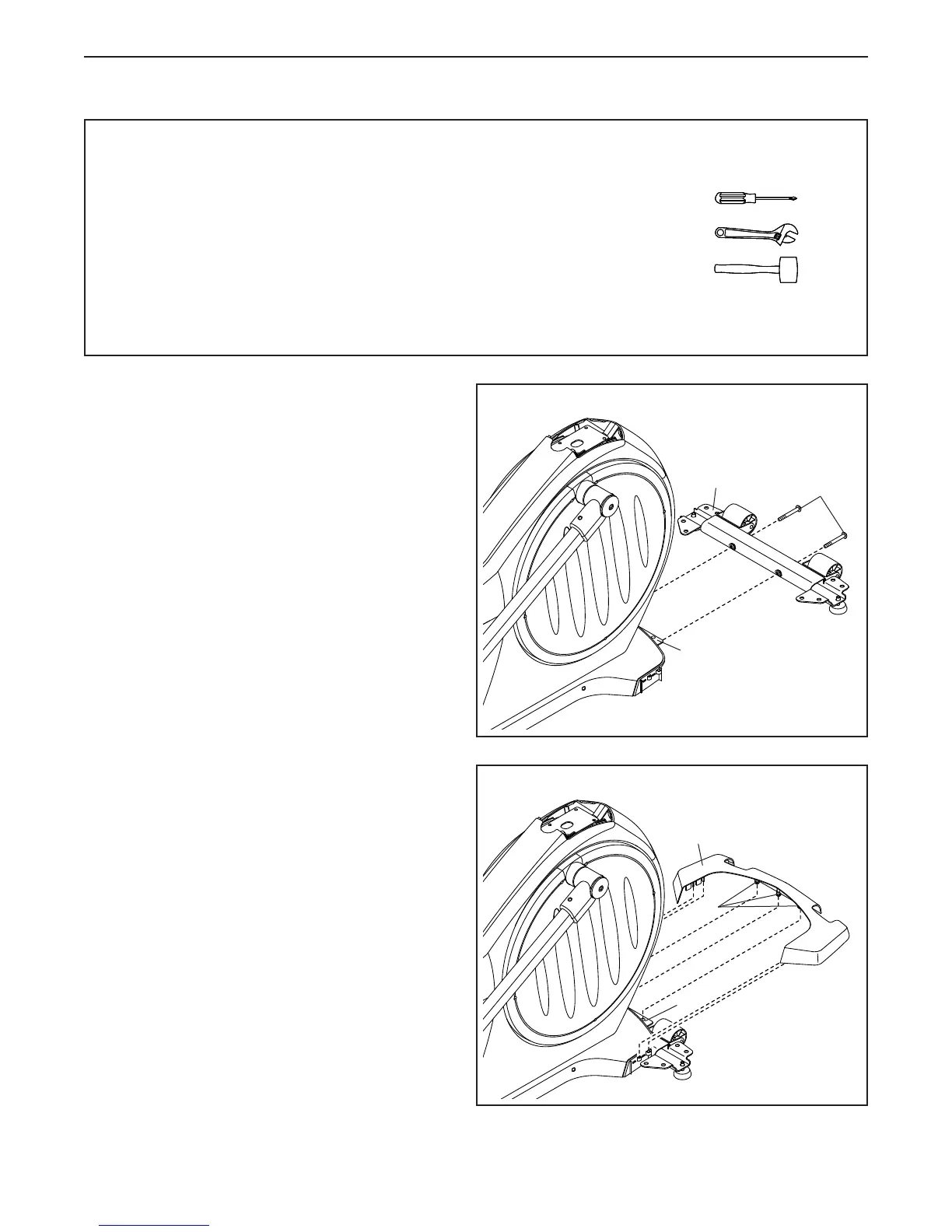

1. Remove the screws (not shown) and the ship-
ping bracket (not shown) from the front of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the front of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 90mm Screws (84). Then,
remove and discard the shipping bracket (not
shown).
2. Orient the Front Stabilizer Cover (8) as shown.
Press the Mounts (117) (only three are shown)
on the underside of the Front Stabilizer Cover
(8) into the Frame (1). Then, press the Front
Stabilizer Cover into place.
1
2
6
1
1
84
8
117
