11
11

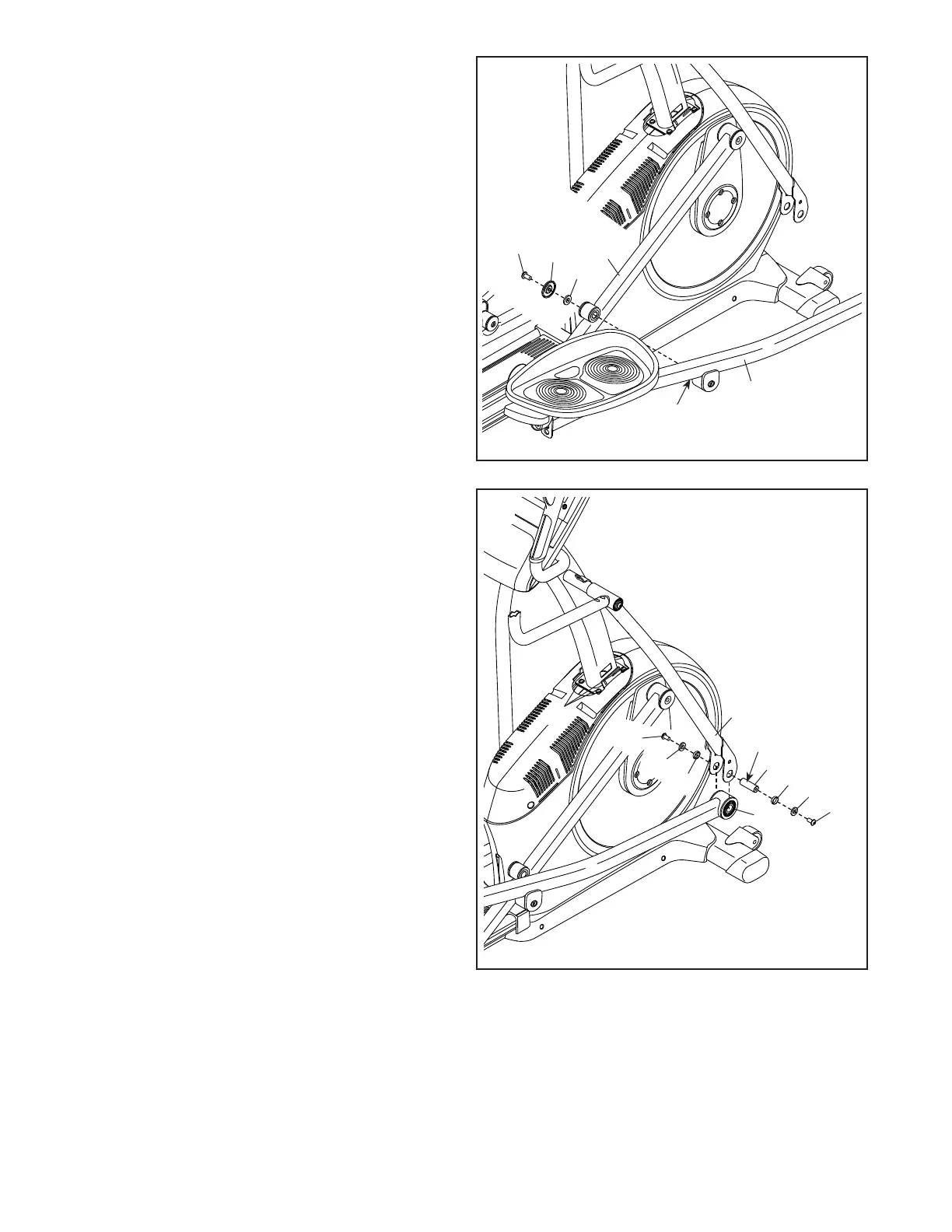

11. Orient the Right Pedal Arm (58) assembly as
shown.
Apply grease to the axle on the Right Pedal
Arm (58).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 14mm Shoulder
Screw (147), a Small Axle Cover (55), and an
M8 Washer (97).
Repeat this step for the Left Pedal Arm
assembly (not shown).
Grease
147
58
55
97
59
82
97
97
77
58
77
60
64
12. Apply grease to a Pedal Arm Axle (64).
Next, slide an M8 Washer (97) and an Axle
Spacer (77) onto an M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
Slide an M8 Washer (97) and an Axle Spacer
(77) onto another M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64). Then, tighten both Screws at the
same time.
Repeat this step on the other side of the
elliptical.
See assembly step 5. Tighten the M10 x 25mm
Screws (99).
Grease
12
82
99
