13
15

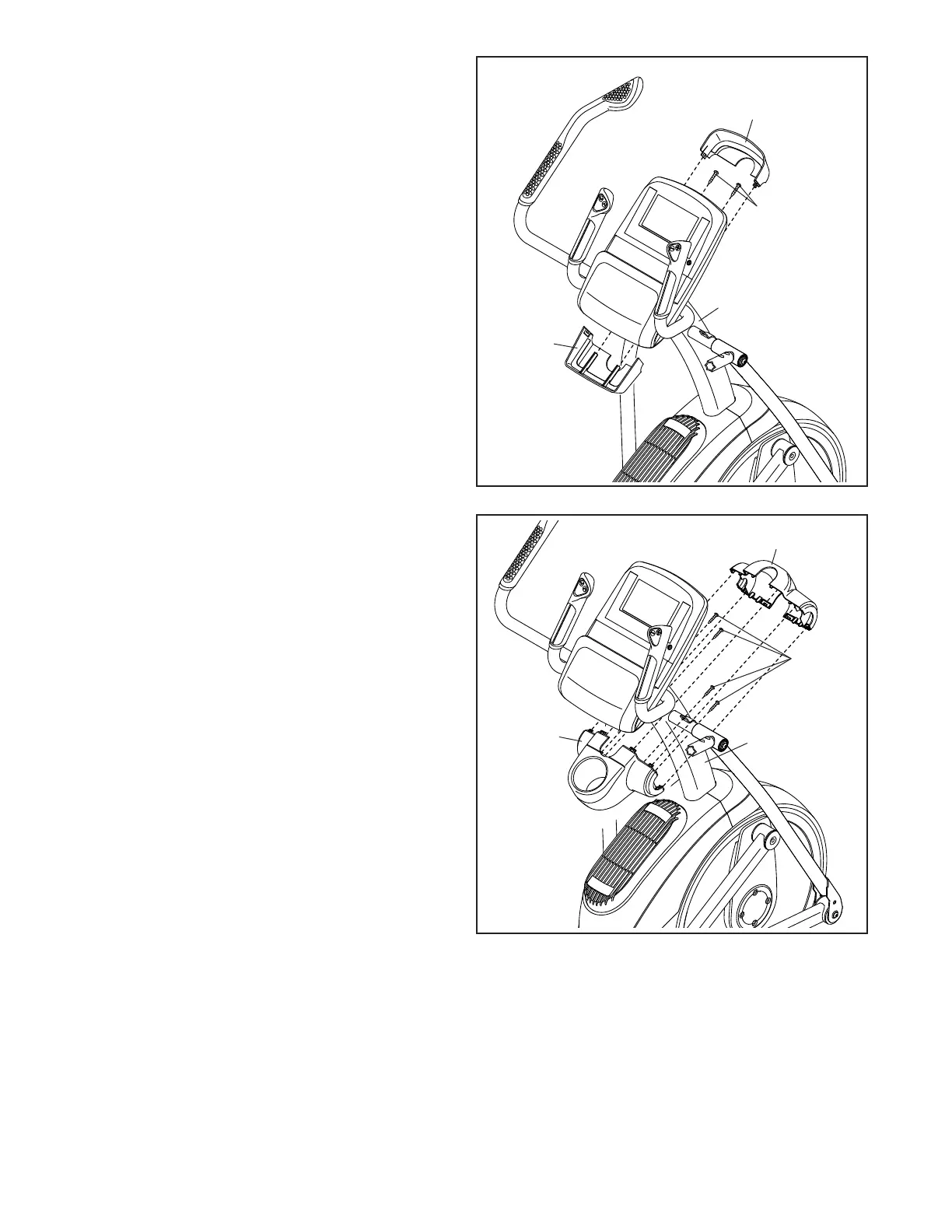

15. Orient the Rear Console Cover (80) as shown.
Attach the Rear Console Cover (80) to the
Upright (4) with two M4 x 16mm Screws (101).
Orient the Front Console Cover (79) as shown.
Attach the Front Console Cover (79) around the
Upright (4) by pressing it into the Rear Console
Cover (80).
79
4
80
101
16
16. Orient the Rear Upright Cover (81) as shown.
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101).
Orient the Front Upright Cover (117) as shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing it into the Rear Upright
Cover (81).
101
81
4
117
