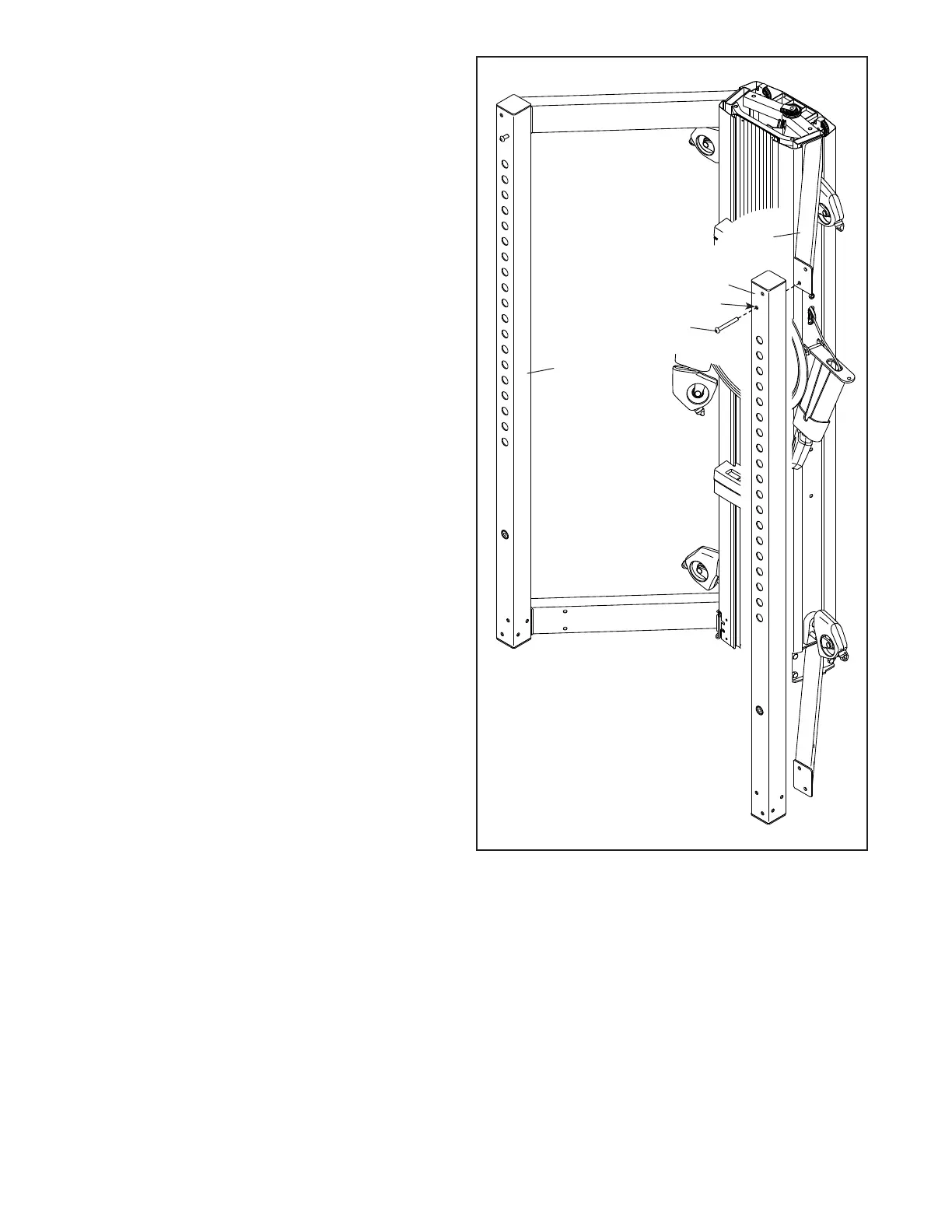

4. Orient the Right Upright (150) as shown.
Attach the Right Upright (150) to the Right Upper
Stabilizer (146) with an M10 x 93mm Screw
(102). Make sure to insert the Screw into the
lower hole (A); do not fully tighten the Screw
yet. This Screw will be used again in step 6.
Attach the Left Upright (149) in the same way.
102
150
A
149
146
To Next Page
