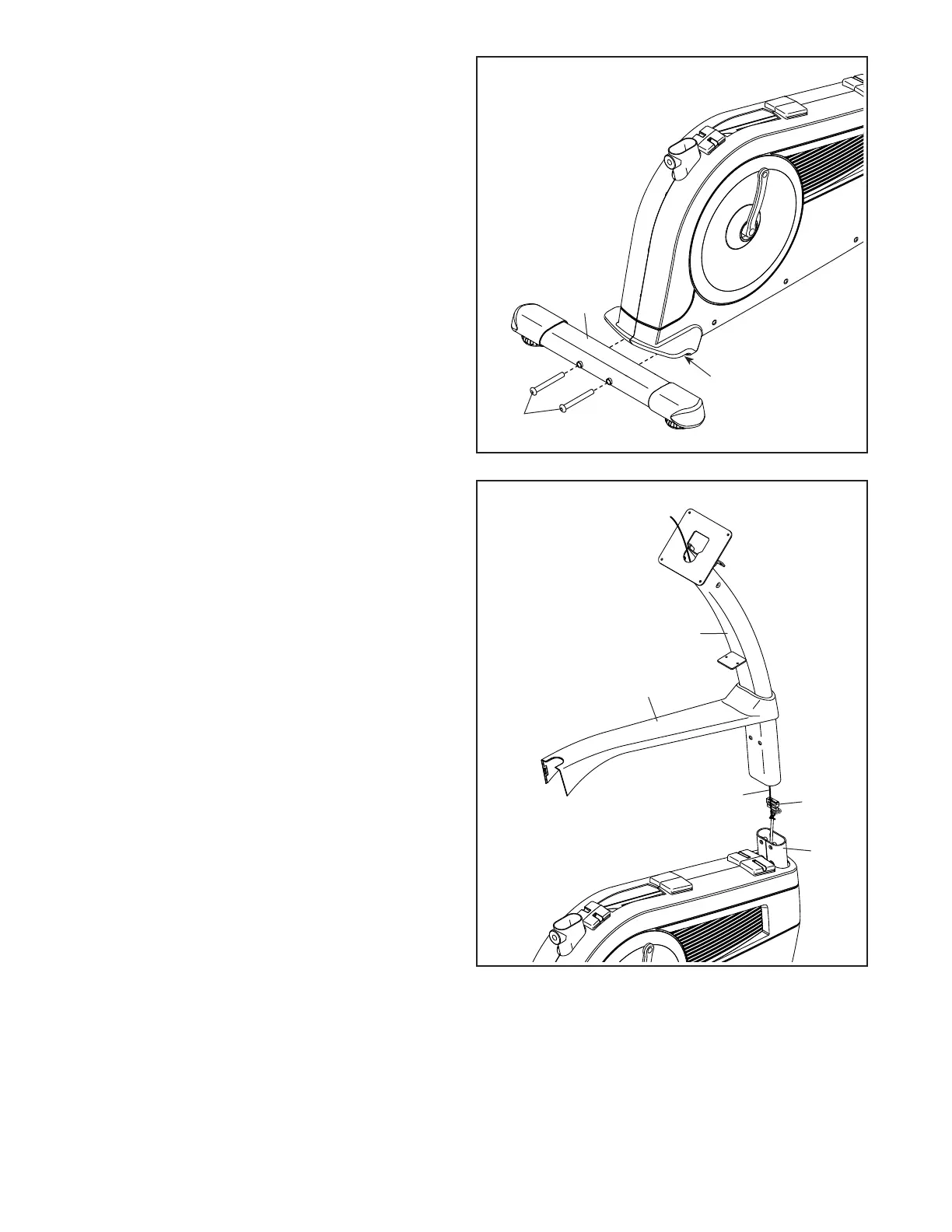

3. Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 110mm Screws (53).
53
1
3
3
4. Orient the Upright (4) and the Shield Cover (7)
as shown. Slide the Shield Cover upward onto
the Upright.
Have a second person hold the Upright (4)
and the Shield Cover (7) near the front of the
Frame (1).
Next, locate the wire tie (A) inside the Upright
(4). Tie the lower end of the wire tie to the Main
Wire (58). Then, pull the upper end of the wire tie
upward until the Main Wire is routed through the
Upright.
4
4
7
58
1
A
To Next Page
