NordicTrack GX 4.5 PRO - Assembly - Part 3; Attach Upright to Frame; Seat Post and Shield Cover Assembly

8
5
4
1
7
65
65
31
31
Avoid pinching
the wires

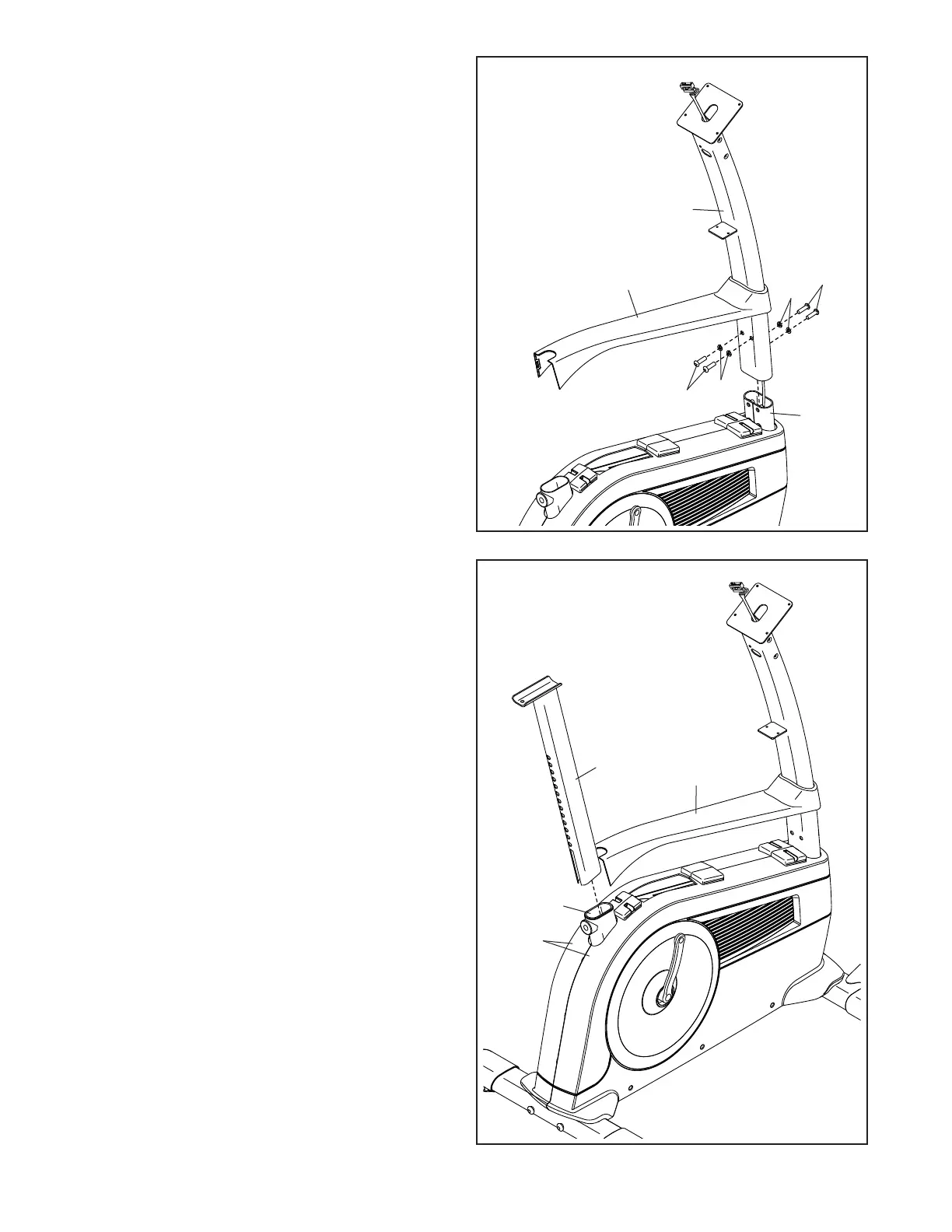

5. Tip: Avoid pinching the wires. Slide the
Upright (4) onto the Frame (1).
Attach the Upright (4) with four M10 x 15mm
Screws (65) and four M10 Washers (31); start
all the Screws, and then tighten them.
Do not press the Shield Cover (7) into
place yet.
6
6. Orient the Seat Post (6) as shown, and insert it
into the Frame (1).
Then, slide the Shield Cover (7) downward and
press it onto the Right and Left Shields (10, 11).
6
1
7
10, 11
