9
7

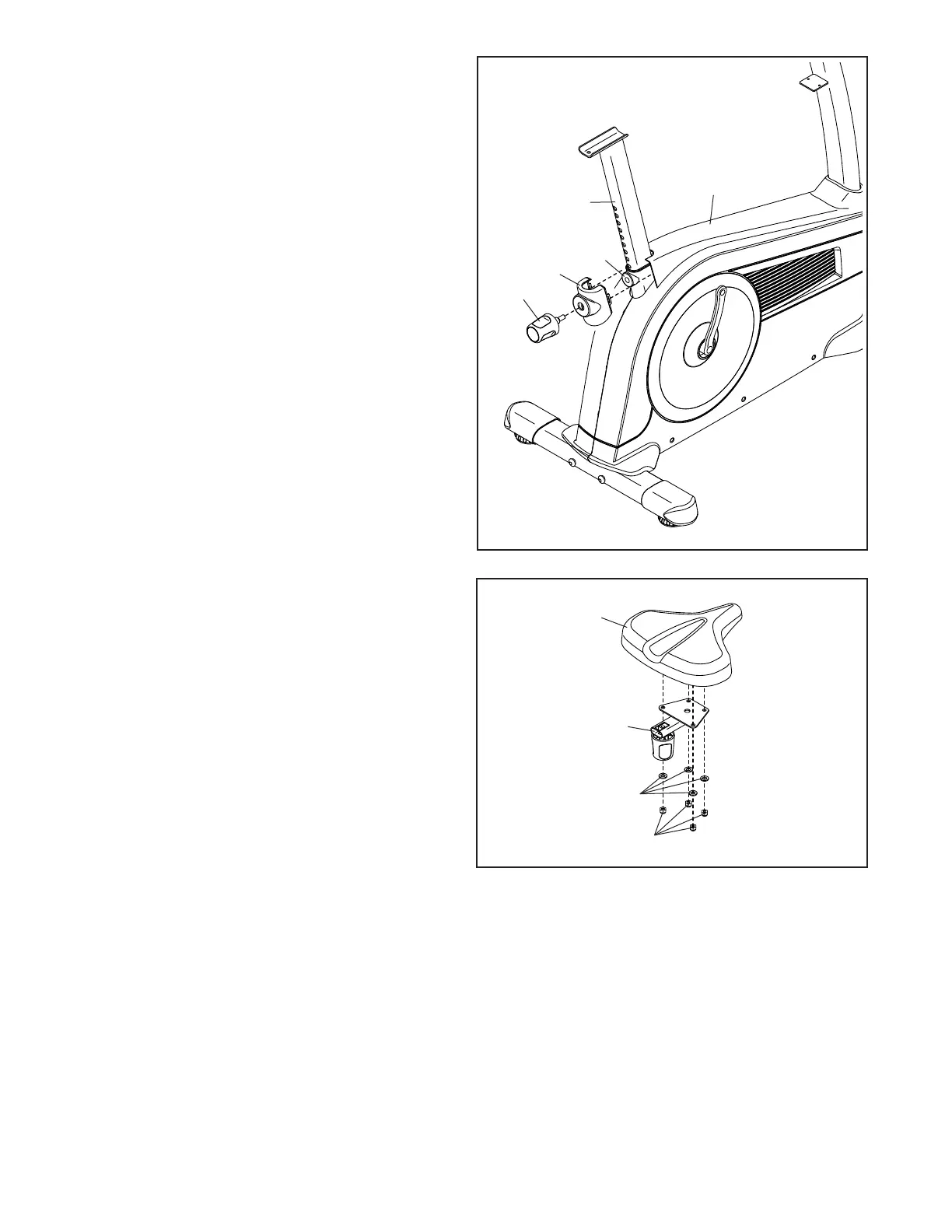

7. Orient the Knob Shield (9) as shown, and press
it onto the Shield Cover (7).
Then, tighten the Seat Post Knob (27) into the
Frame (1).
Next, loosen and pull the Seat Post Knob (27),
slide the Seat Post (6) upward or downward to
the desired position, and then release the Seat
Post Knob. Move the Seat Post upward or
downward slightly to make sure that the Seat
Post Knob is engaged in one of the adjust-
ment holes in the Seat Post. Then, tighten the
Seat Post Knob.
9
1
6
7
27
8
8. Attach the Seat (23) to the Seat Carriage (24)
with four M8 Locknuts (43) and four M8 Washers
(64). Note: The Locknuts and Washers may
be preattached to the Seat.
23
24
64
43
