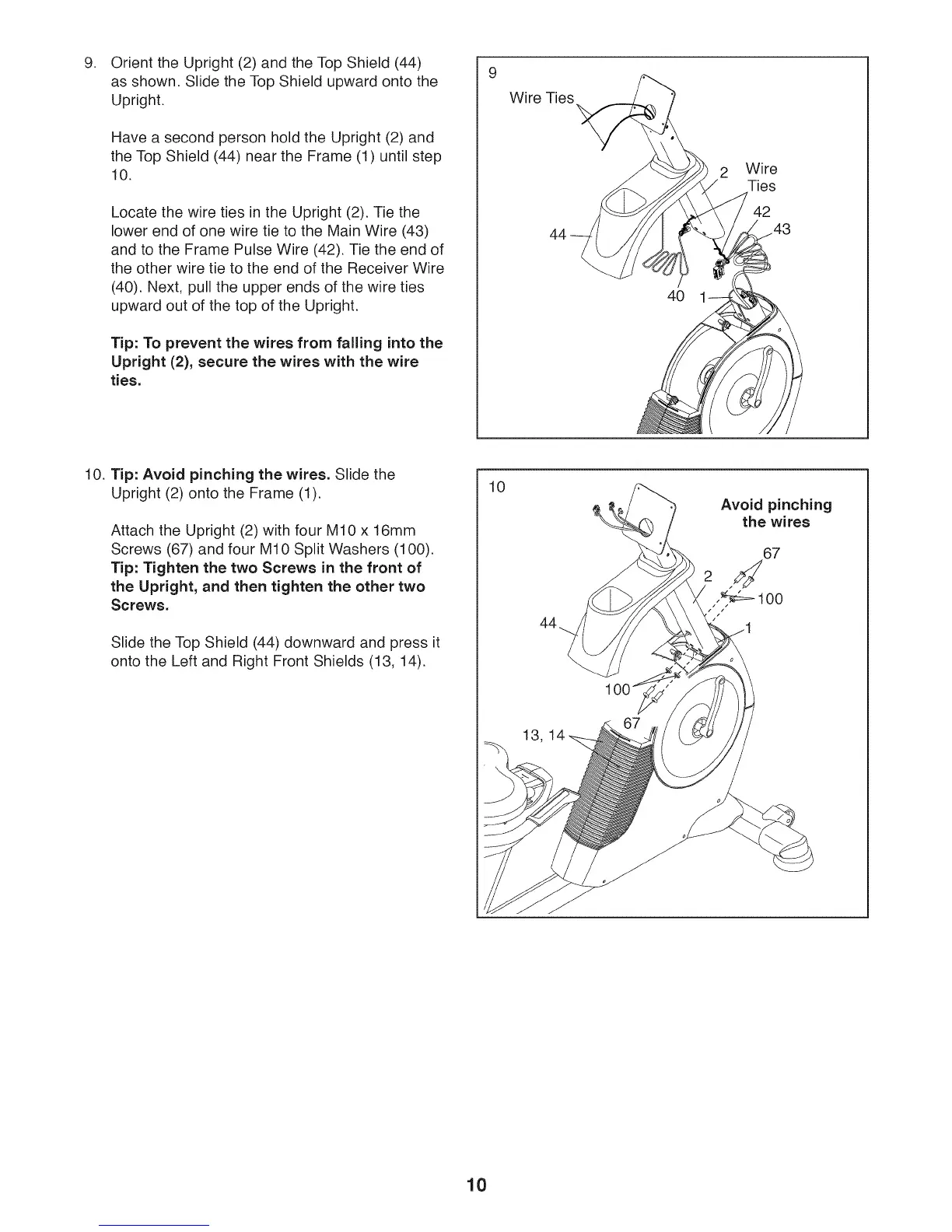

9. 9
Orient the Upright (2) and the Top Shield (44)
as shown. Slide the Top Shield upward onto the
Upright.
Have a second person hold the Upright (2) and
the Top Shield (44) near the Frame (1) until step
10.
Locate the wire ties in the Upright (2). Tie the
lower end of one wire tie to the Main Wire (43)
and to the Frame Pulse Wire (42). Tie the end of
the other wire tie to the end of the Receiver Wire
(40). Next, pull the upper ends of the wire ties
upward out of the top of the Upright.
Tip: To prevent the wires from falling into the
Upright (2), secure the wires with the wire
ties.
Wire Ties
40
2 Wire
Ties
42
10. Tip: Avoid pinching the wires. Slide the
Upright (2) onto the Frame (1).
Attach the Upright (2) with four M10 x 16mm
Screws (67) and four M10 Split Washers (100).
Tip: Tighten the two Screws in the front of
the Upright, and then tighten the other two
Screws.
Slide the Top Shield (44) downward and press it
onto the Left and Right Front Shields (13, 14).
10
44
13. 14
Avoid pinching
the wires
10
