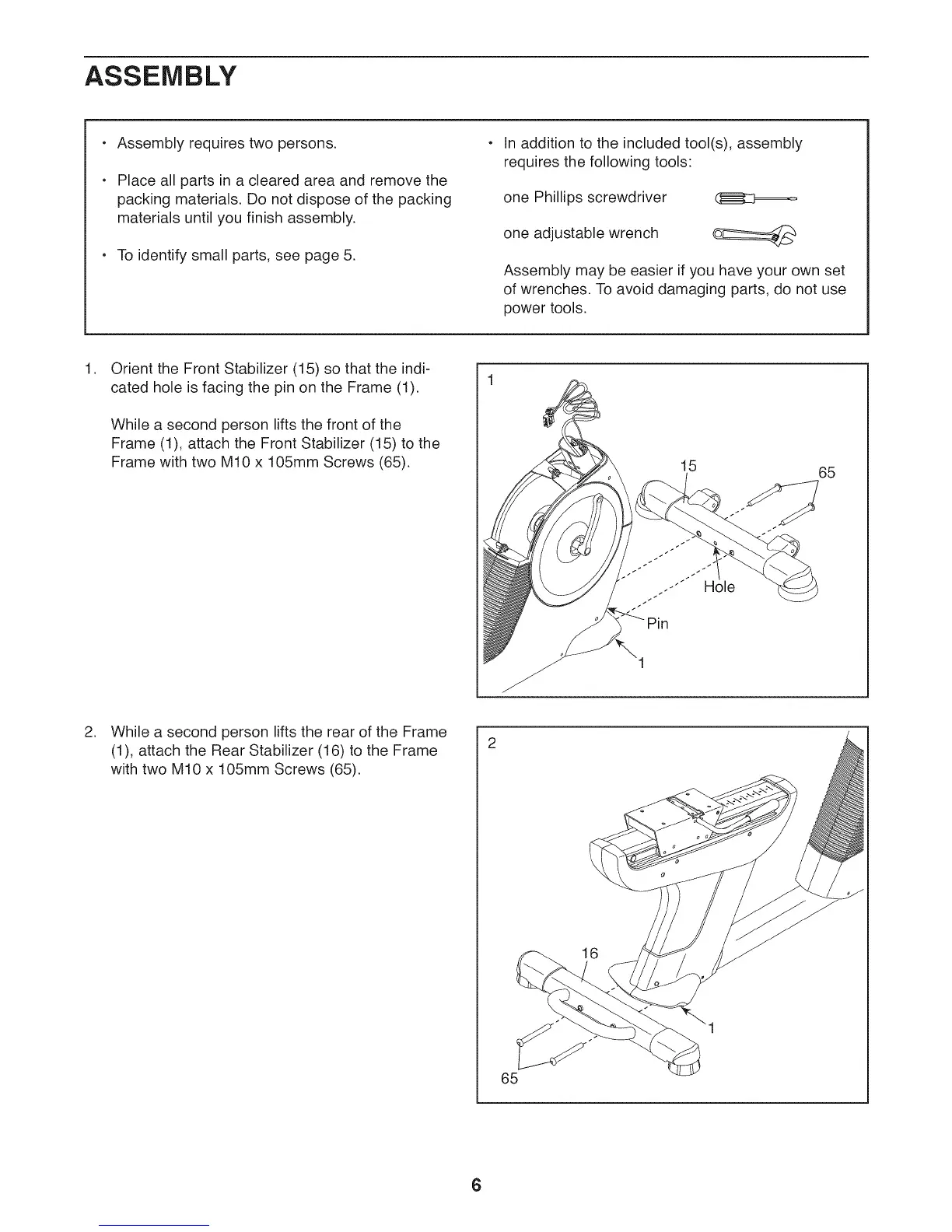

ASSEMBLY
Assembly requires two persons.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you finish assembly.
To identify small parts, see page 5.
in addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
.
Orient the Front Stabilizer (15) so that the indi-
cated hole is facing the pin on the Frame (1).
While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (15) to the
Frame with two M10 x 105mm Screws (65).
15
65
Hole
.
While a second person lifts the rear of the Frame
(1), attach the Rear Stabilizer (16) to the Frame
with two M10 x 105mm Screws (65).
65
6
To Next Page
