3. 3

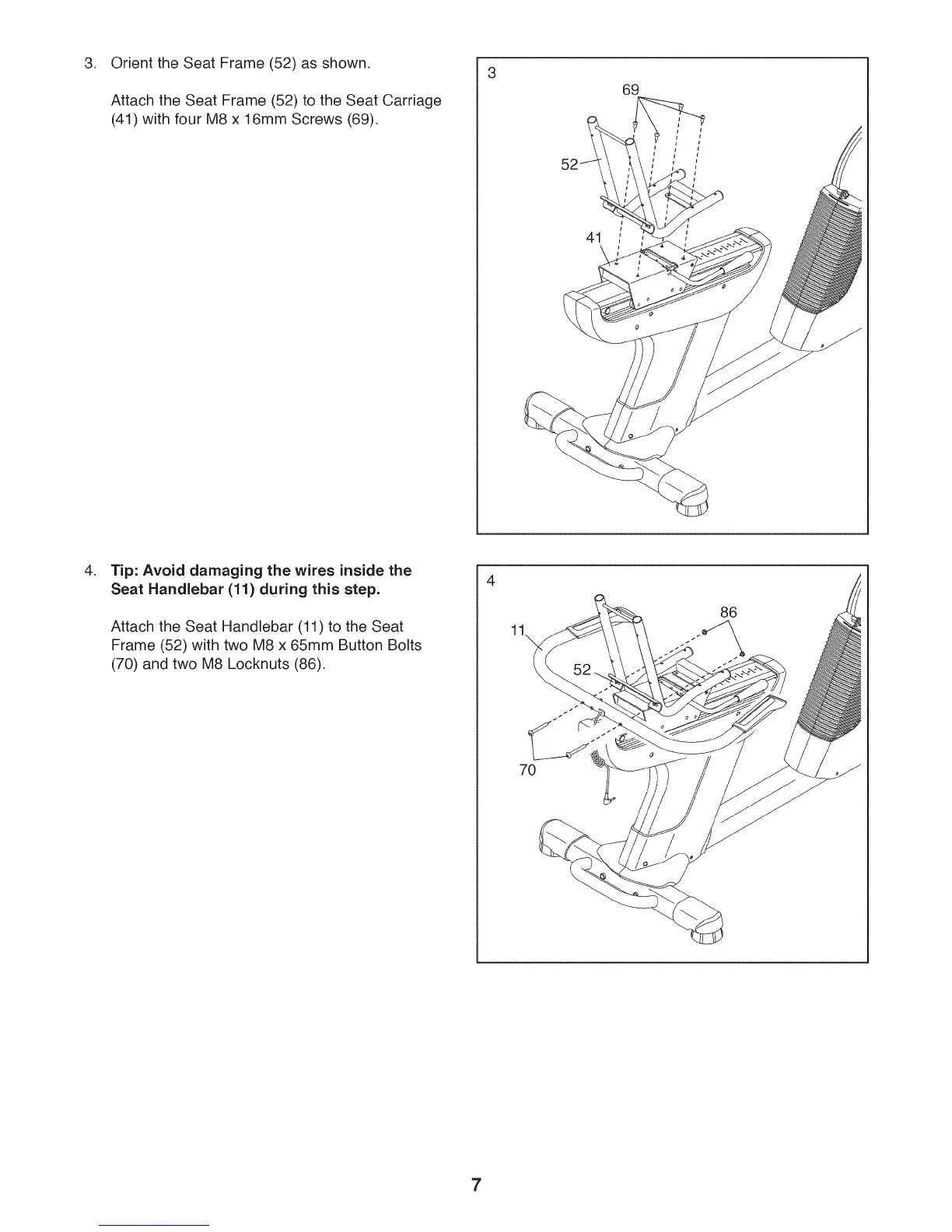

Orient the Seat Frame (52) as shown.
Attach the Seat Frame (52) to the Seat Carriage
(41) with four M8 x 16mm Screws (69).
41
69
.
Tip: Avoid damaging the wires inside the
Seat Handlebar (11) during this step.
Attach the Seat Handlebar (11) to the Seat
Frame (52) with two M8 x 65mm Button Bolts
(70) and two M8 Locknuts (86).
4
11,,
70
86
7
To Next Page
