NordicTrack GX 5.0 PRO NTEXO4911.0 - Page 8

.
5

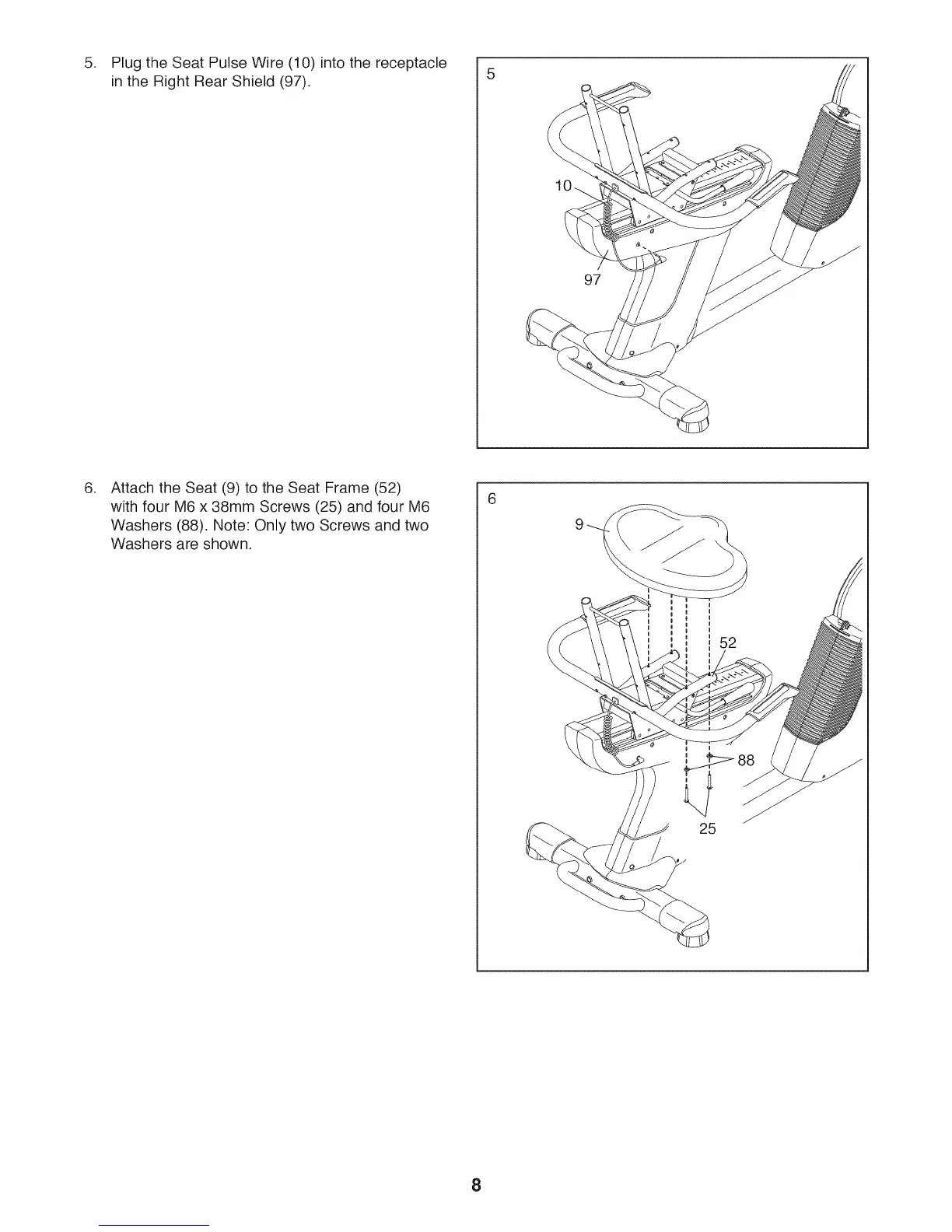

Plug the Seat Pulse Wire (10) into the receptacle
in the Right Rear Shield (97).
97
.
Attach the Seat (9) to the Seat Frame (52)
with four M6 x 38mm Screws (25) and four M6
Washers (88). Note: Only two Screws and two
Washers are shown.
52
8
