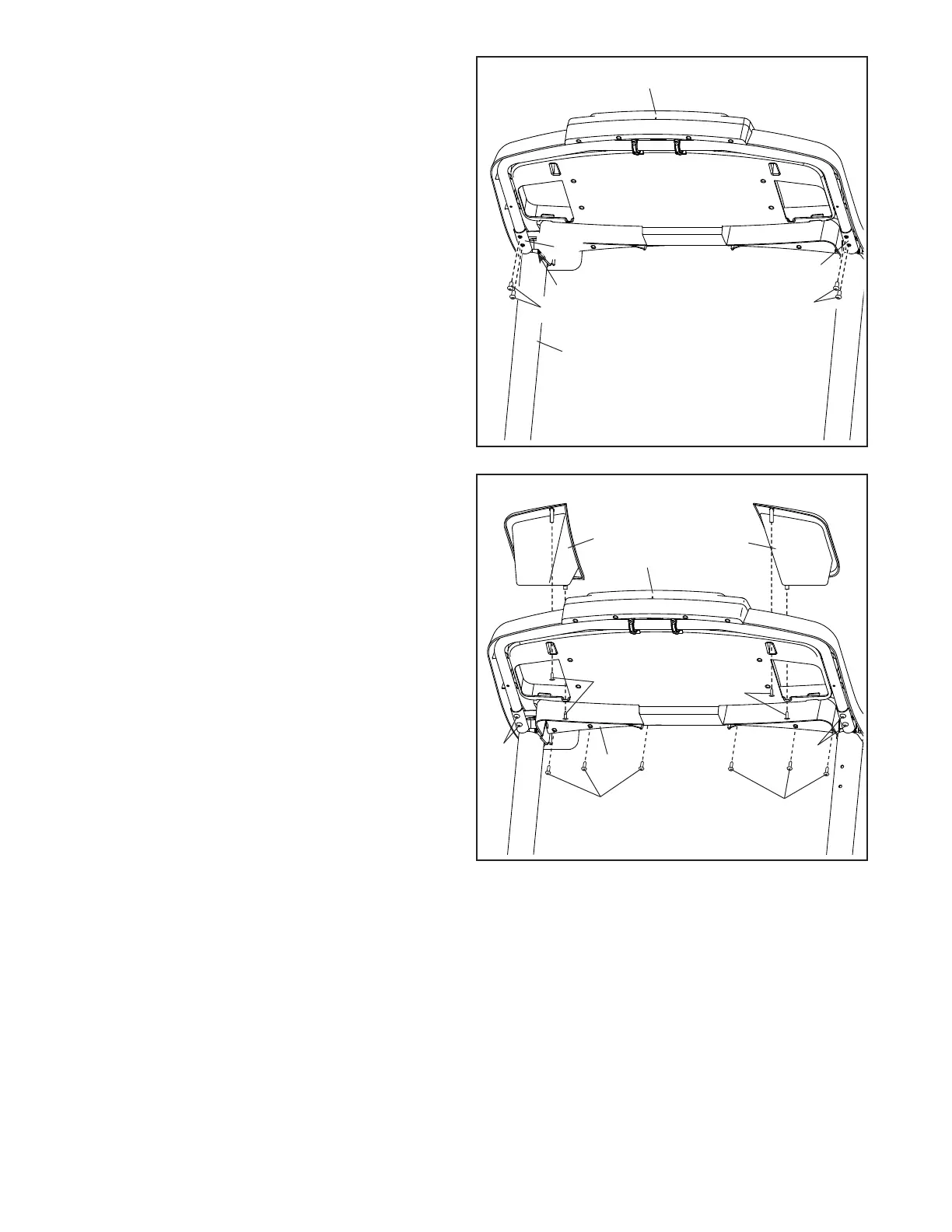

10. Set the console assembly (G) on the Right and
Left Handrails (84, 85). Make sure that no
wires are pinched. Insert the excess Upright
Wire (81) into the Right Upright (90).
Attach the console assembly (G) with four 1/4" x
1/2" Screws (4); do not tighten the Screws yet.
11. Attach the Handrail Crossbar (23) to the console
assembly (G) with six #8 x 5/8" Screws (1); start
all six Screws, and then tighten them.
Next, firmly tighten the four 1/4" x 1/2"
Screws (4).
Then, attach the Right and Left Trays (27, 36)
with four #8 x 1/2" Screws (14).
10
11
90
G
4
4
81
85
84
G
4
4
23
1
1
27
36
14
14
