NordicTrack Revitalize Inversion System 2.0 User Manual

7

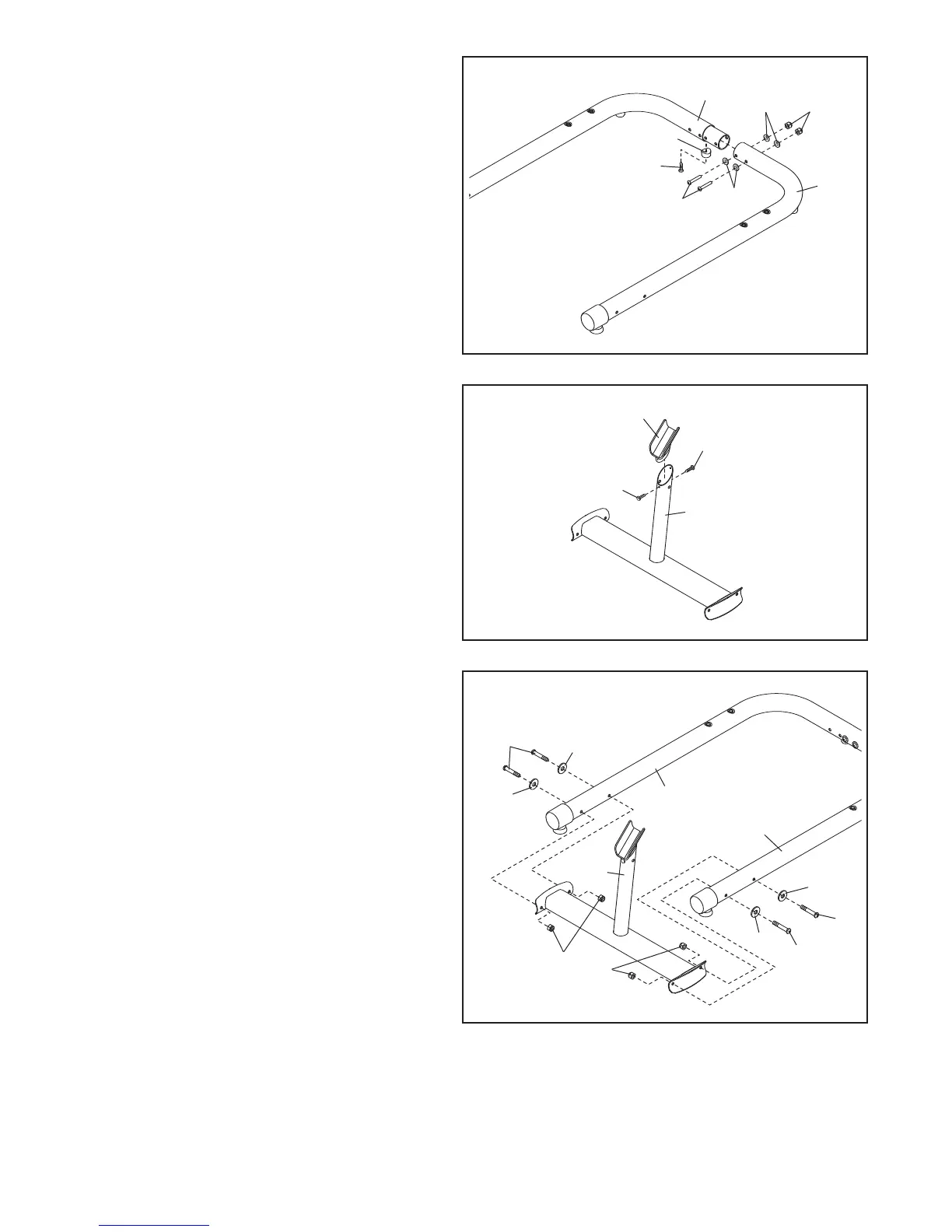

2. Attach the Left Base (1) to the Right Base (2)
with two M10 x 80mm Button Bolts (52), four
M
10 Curved Washers (50), and two M10
Locknuts (65).
Do not tighten the Locknuts
y
et.
Attach another Foot (42) to the Right Base (2)
with an M4 x 20mm Screw (59).
3. Attach the Support Bracket (15) to the Center
Base (3) with two M4 x 15mm Screws (58).
2
2
1
52
50
5
0
6
5
59
42
3
58
58
3
15
4. Attach the Center Base (3) to the Left and
Right Bases (1, 2) with four M10 x 80mm
Button Bolts (52), four M10 Curved Washers
(50), and four M10 Locknuts (65). Do not
tighten the Locknuts yet.
4
52
50
50
3
65
50
50
52
52
2
1
65
