8

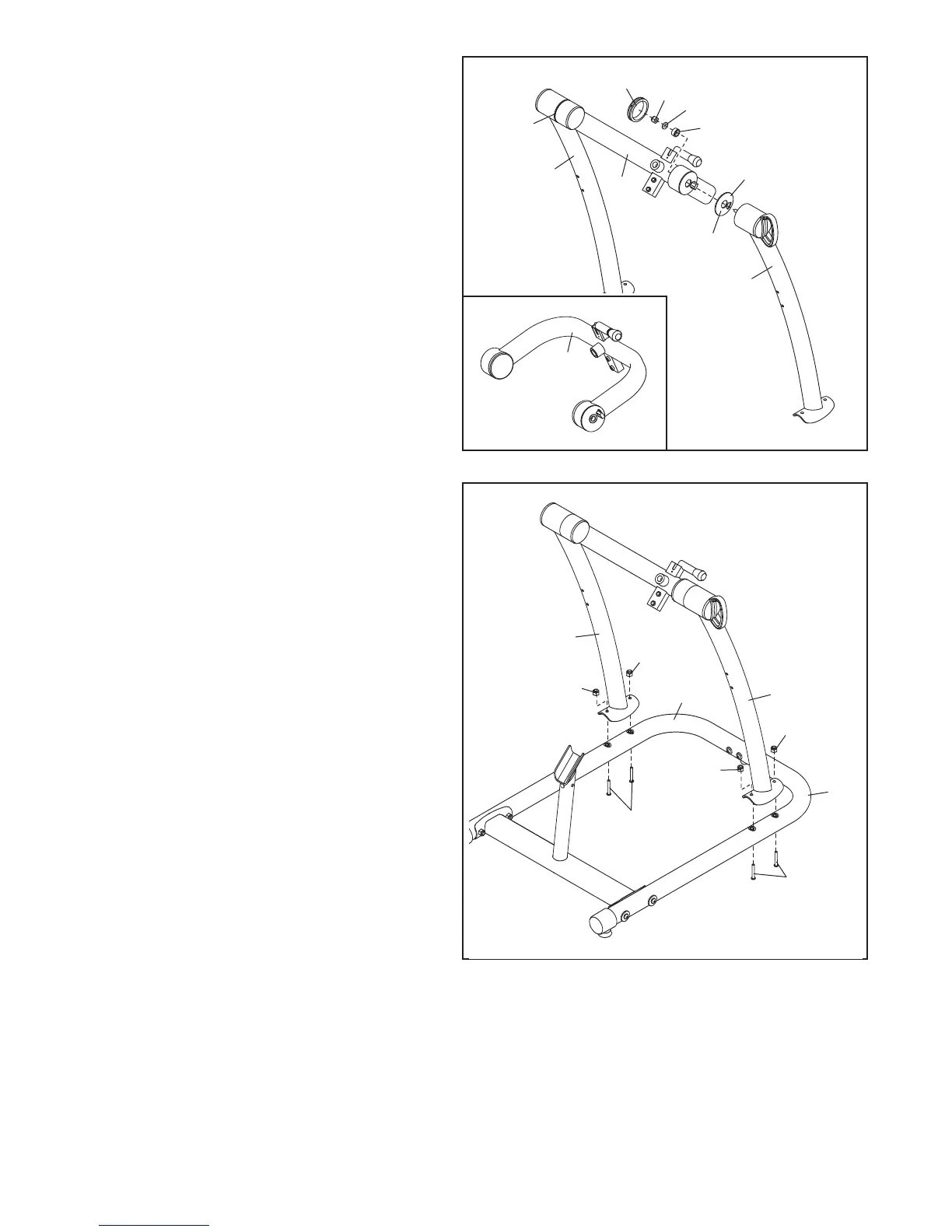

5. See the inset drawing. Identify the Center
F
rame (7).
Apply some of the included grease to both
sides of the Left Large Spacer (31).
A
ttach the Left Large Spacer (31) and the Left
Frame (4) to the Center Frame (7) with an
M10 Locknut (65), an M10 Large Washer (64),
and a 29mm Spacer (48). Then, press an
89mm Cap (32) into the Center Frame.
Repeat this step with the Right Large
Spacer (60) and the Right Frame (5).
6. Attach the Left and Right Frames (4, 5) to the
Left and Right Bases (1, 2) with four M10 x
85mm Button Bolts (51) and four M10
Locknuts (65).
See steps 2 and 4. Tighten the M10
Locknuts (65).
6
65
51
51
1
2
65
65
65
4
5
32
6
5
64
48
4
7
31
Grease
60
5
5
7
To Next Page
