5,
6,
7,

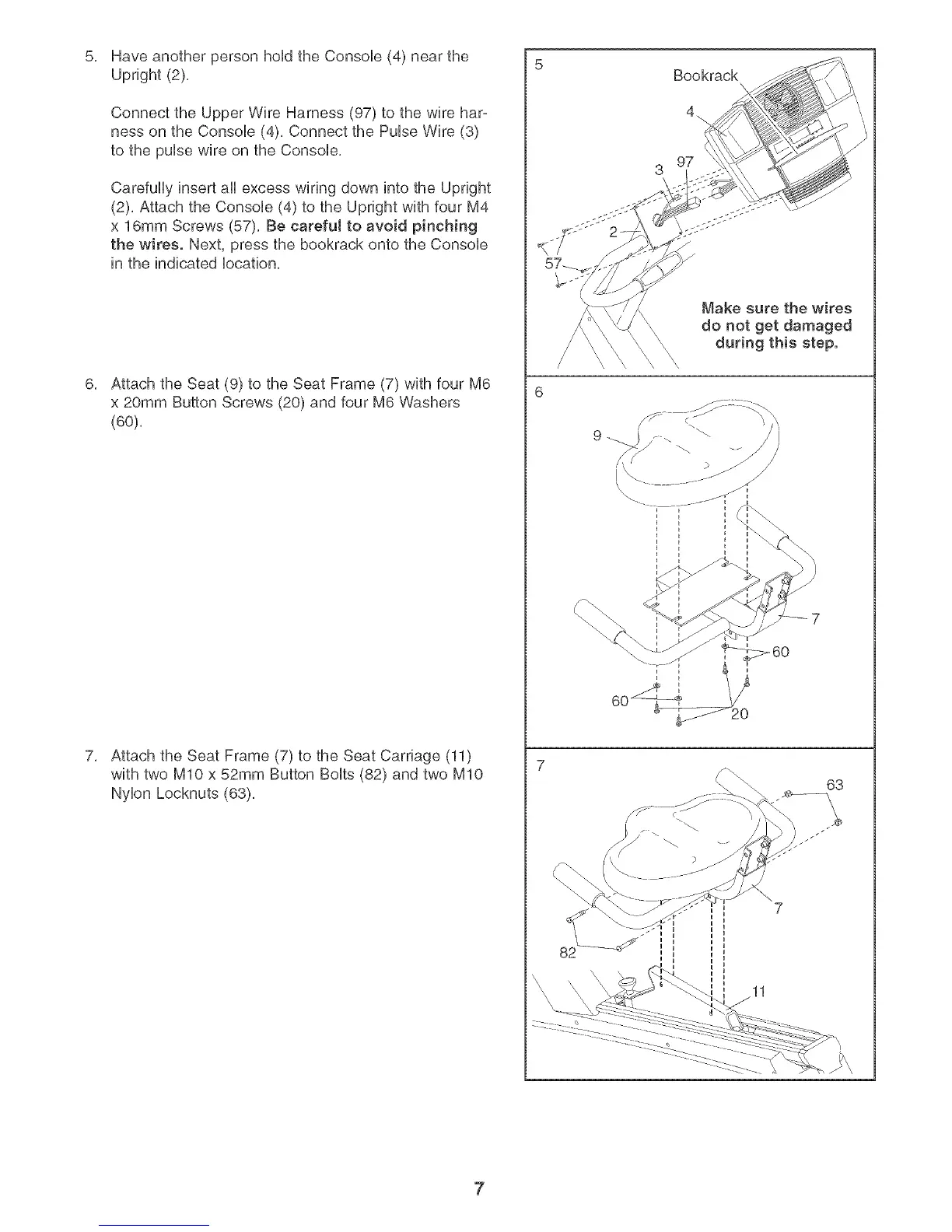

Have another person hold the Console (4) near the
Upright (2),
Connect the Upper Wire Harness (97) to the wire haro
hess on the Console (4), Connect the Pulse Wire (8)
to the pulse wire on the Console,
Carefully insert all excess wiring down into the Upright
(2), Attach the Console (4) to the Upright with four M4
x 16mm Screws (57), Be careful to avoid pinching
the wires. Next, press the bookrack onto the Console
in the indicated location,
Attach the Seat (9) to the Seat Frame (7) with four M6
x 20mm Button Screws (20) and four M6 Washers
(60),
Attach the Seat Frame (7) to the Seat Carriage (11)
with two MIO x 52mm Button Bolts (82) and two MIO
Nylon Locknuts (63),
Bookrack
97
3
Make sure the wires
do not get damaged
during this step.
63
7
To Next Page
