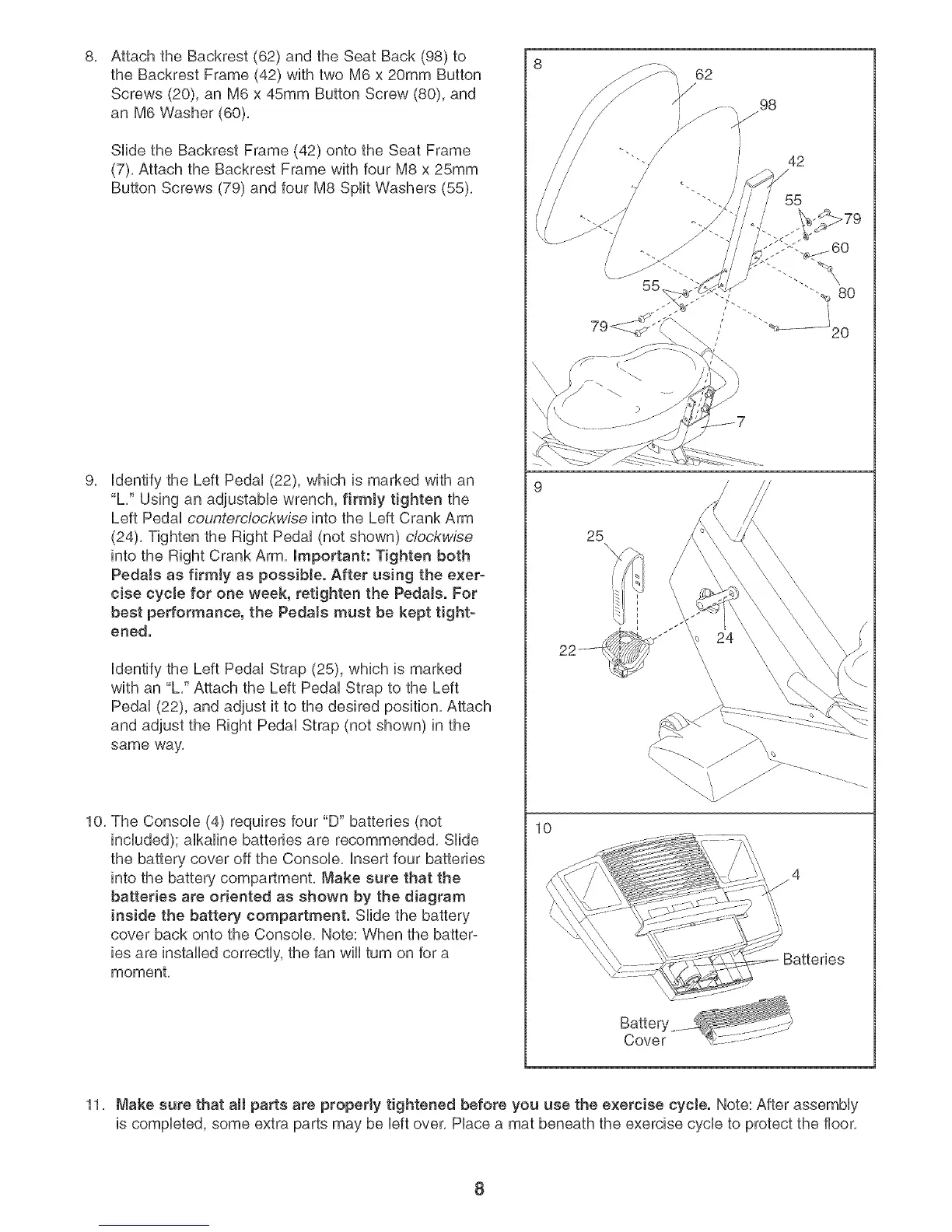

Attach the Backrest (62) and the Seat Back (98) to
the Backrest Frame (42) with two M6 x 20mm Button
Screws (20), an M6 x 45mm Button Screw (80), and
an M6 Washer (60),
SHde the Backrest Frame (42) onto the Seat Frame
(7), Attach the Backrest Frame with four M8 x 25mm
Button Screws (79) and four M8 Split Washers (55),
9,
Udentify the Left PedaU(22), which is marked with an
"L," Using an adjustaMe wrench, firmly tighten the
Left PedaUcountemlockwise into the Left Crank Arm
(24), Tighten the Right PedaU(not shown) clockwise
into the Right Crank Arm, Important: Tighten both
Pedals as firmly as possible. After using the exer-
cise cycle for one week, retighten the Pedals. For
beet performance, the Pedals must be kept tight-
ened.
Udentify the Left PedaUStrap (25), which is marked
with an "L," Attach the Left PedaU Strap to the Left
PedaU(22), and adjust it to the desired position, Attach
and adjust the Right PedaUStrap (not shown) in the
same way,
10, The ConsoUe (4) requires four "D" batteries (not
incUuded); aUkaHnebatteries are recommended, Slide
the battery cover off the Console, Insert four batteries
into the battery compartment, Make sure that the
batteries are oriented as shown by the diagram
inside the battery compartment. Slide the battery
cover back onto the Console, Note: When the batter°
ies are installed correctly, the fan will turn on for a
moment,
10
/
62
98
42
/
/ 55
25
\
Batteries
11, Make sure that aH parts are property tightened before you use the exercise cycle. Note: After assembly
is completed, some extra parts may be left over, Place a mat beneath the exercise cycle to protect the floor,
