19. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
onthetreadmilldecals,removetheplastic.Toprotecttheoororcarpet,placeamatunderthetreadmill.
Note: Extra parts may be included. Keep the included hex key in a secure place; the hex key is used to adjust
the walking belt (see pages 27 and 28).

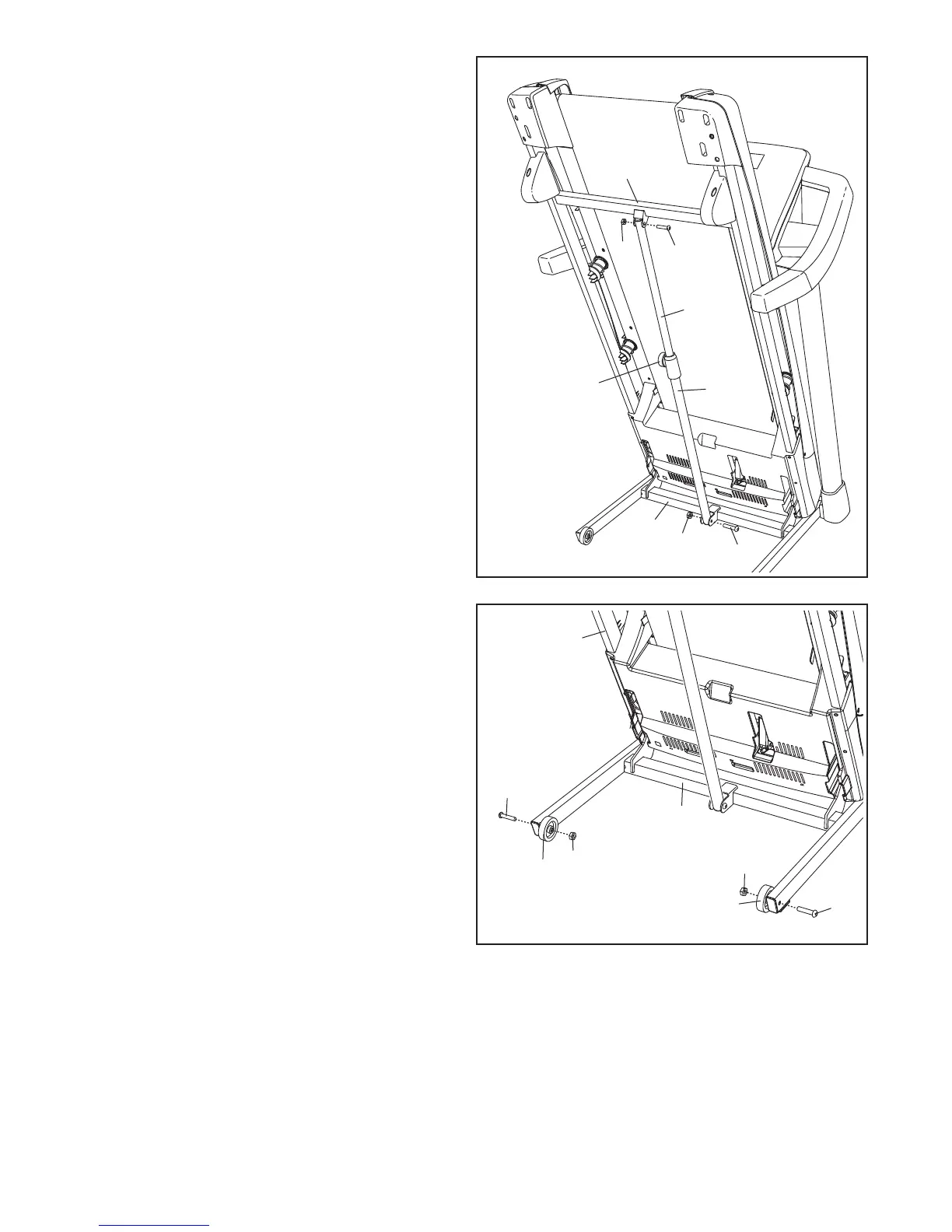

17. Raise the Frame (57) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (54) so that the large
barrel and the latch knob are oriented as shown.
Remove any ties from the end of the Storage
Latch (54). Attach the lower end of the Storage
Latch to the Base (29) with a 3/8" x 2" Bolt (2)
and a 3/8" Nut (9).
Attach the upper end of the Storage Latch (54)
to the Frame (57) with a 3/8" x 2" Bolt (2) and a
3/8" Nut (9).
17
57
54
9
2
Large
Barrel
Latch
Knob
2
9
29
18
93
93
29
57
7
7
9
9
18. Attach a Wheel (93) to the Base (29) with a 3/8"
x 2 1/2" Bolt (7) and a 3/8" Nut (9). Do not over-
tighten the Nut; the Wheel must turn freely.
Attach the other Wheel (93) to the other side
of the Base (29) in the same way.
See HOW TO FOLD THE TREADMILL on page
25. Lower the Frame (57) to the floor.
To Next Page
