10

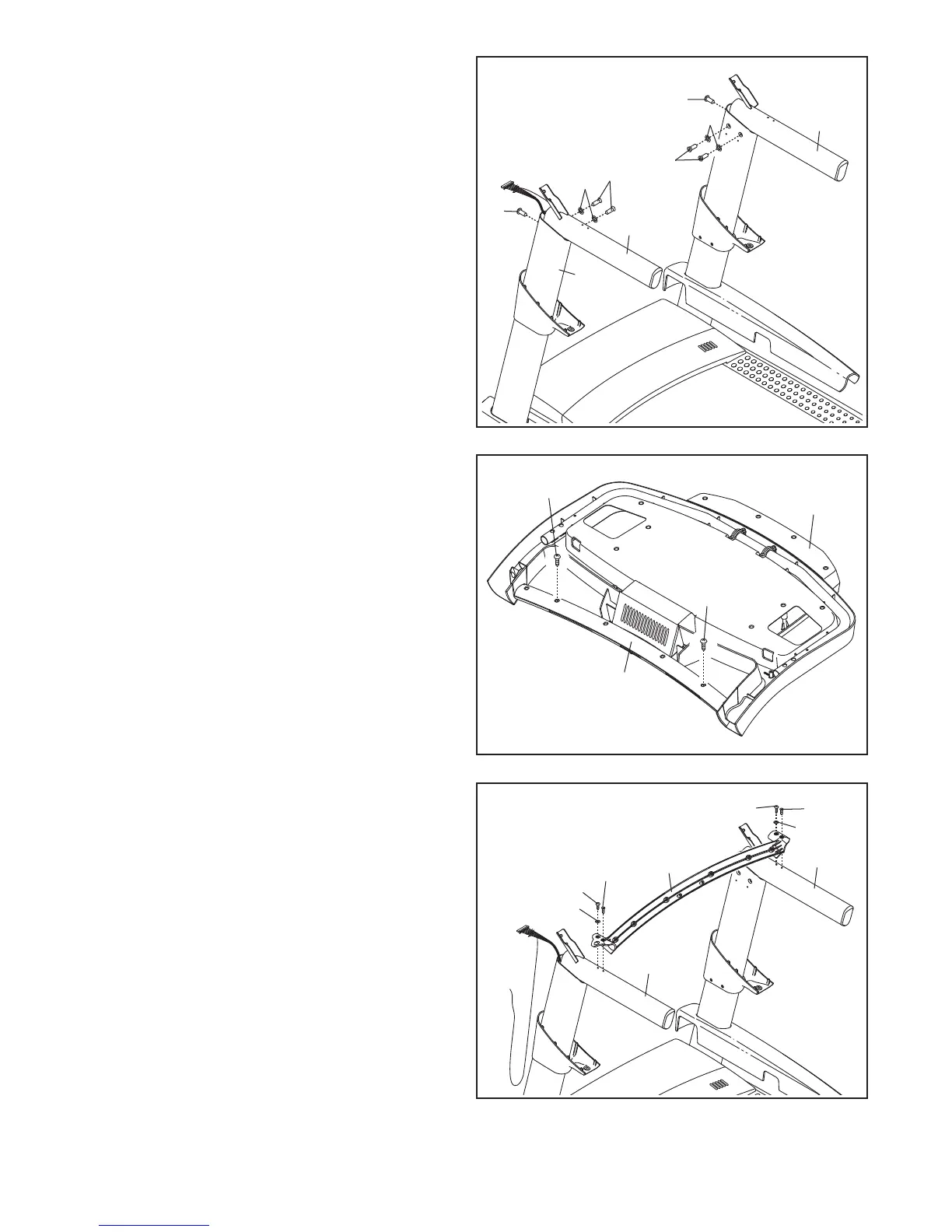

7. Attach the Left Handrail (88) to the Left Upright
(89) with two 5/16" x 1" Screws (5), two 5/16"
Star Washers (11), and a 5/16" x 1 1/4" Bolt (4).
Do not tighten the Screws and Bolt yet.
Attach the Right Handrail (87) in the same
way.
7
89
88
87
4
4
5
5
11
11
8. Set the console assembly face down on a soft
surface to avoid scratching the console assem-
bly. Remove the two Screws (A). Next, lift off the
Crossbar (93). Discard the two Screws.
A
93
Console
Assembly
A
8
9. IMPORTANT: To avoid damaging the
Crossbar (93), do not use power tools and do
not overtighten the #10 x 3/4" Screws (9) or
the #10 x 3/4" Flat Head Screws (112).
Orient the Crossbar (93) as shown. Attach the
Crossbar to the Handrails (87, 88) with two #10
x 3/4" Flat Head Screws (112), two #10 x 3/4"
Screws (9), and two 1/4" Star Washers (35) as
shown. Start all four Screws, and then tighten
them.
93
88
9
9
9
87
35
112
112
35
To Next Page
