14

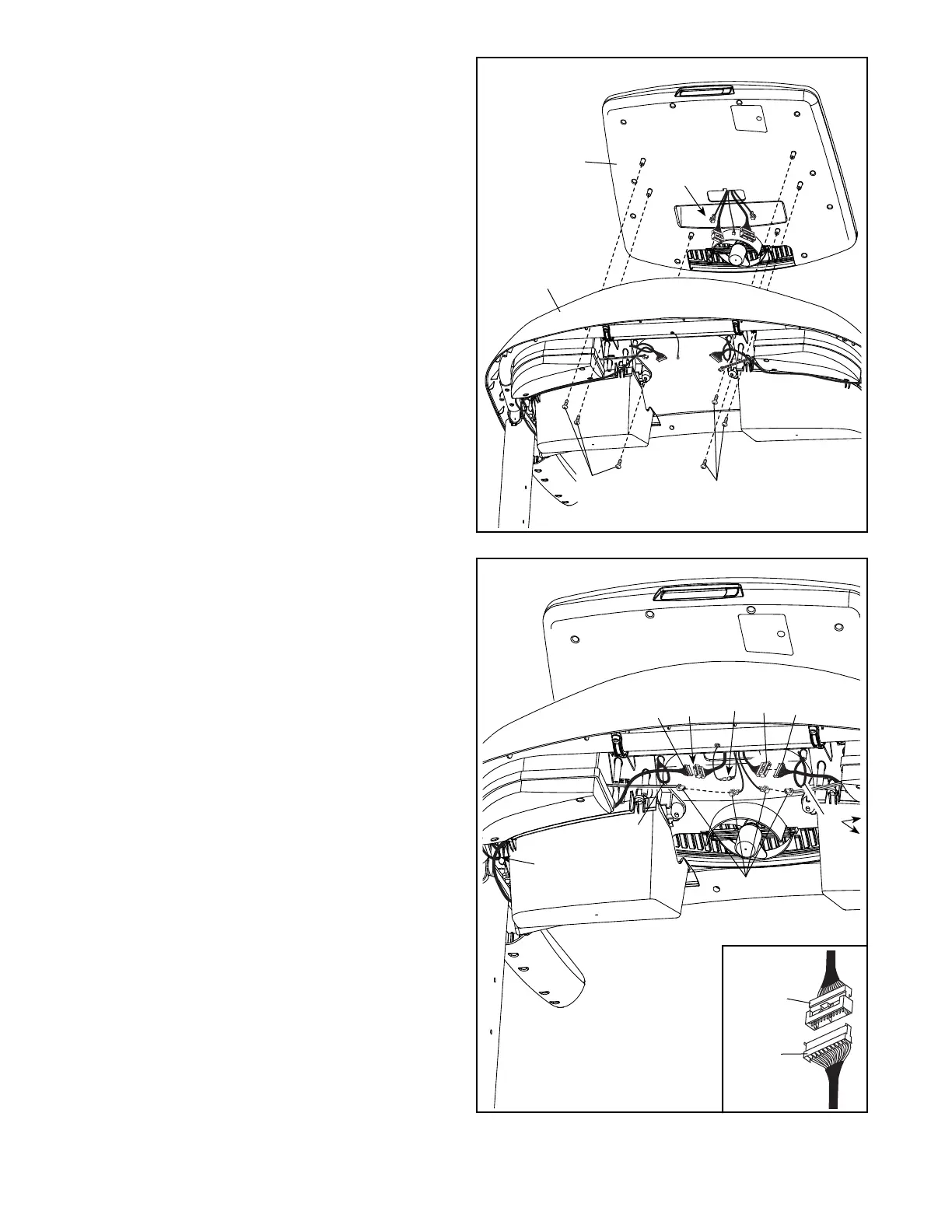

14. Set the Console (80) on the Console Base (64).
Make sure that none of the wires from the
Console are pinched.
Attach the Console (80) with six #8 x 3/4"
Screws (2).
14
2
80
2
64
Wires
15. Connect the ground wires (E), the 8-pin wires
(F), the 5-pin wires (G), and the four speaker
wires (H). Note: The Upright Wire (81) has 8
pins, the pulse wire (D) has 5 pins, and the
speaker wires (H) have 2 pins.
See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
After all of the wires are connected, pull the
wires tight and tighten the five Cable Ties (99)
around the wires. Make sure that no wires are
resting on any posts other than those with Cable
Ties. Cut off the ends of the Cable Ties.
H
E
15
F
81
D
99
99
99
Console
Wire
G
81
To Next Page
