15

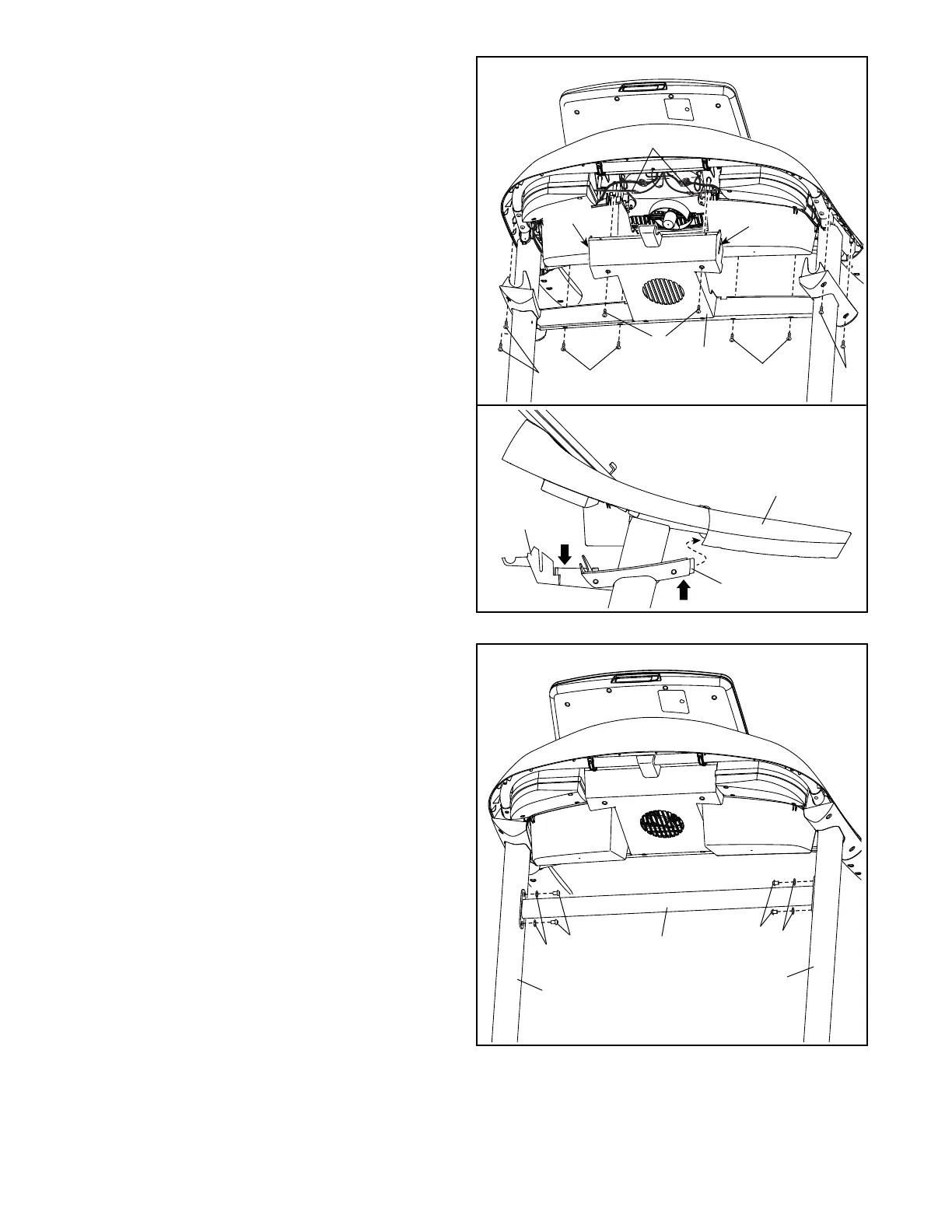

16. See the side view drawing. Slide the Console
Base Back (104) upward to the handrail assem-
bly (I). Make sure that the flange on the Console
Base Back slides into the handrail assembly.
Note: You will need to tip the Console Base Back
(104) so that the flange can fit into the handrail
assembly (I). Also, the speaker wires (H) need to
fit into the slots in the Console Base Back.
Tighten ten #8 x 3/4" Screws (2) into the Console
Base Back (104) in the indicated locations.
2
16
104
2
2
2
2
104
Side View
Flange
H
Slot
I
Slot
17. Carefully slide the Upright Crossbar (41)
between the Uprights (89, 90). Attach the Upright
Crossbar with the four 5/16" x 3/4" Screws (4)
that you removed in step 6 and four 5/16" Star
Washers (11). Start all four Screws, and then
tighten them.
17
89
4
11
41
90
11
4
