10
9
104
111
Console Assembly
116
1
16
106

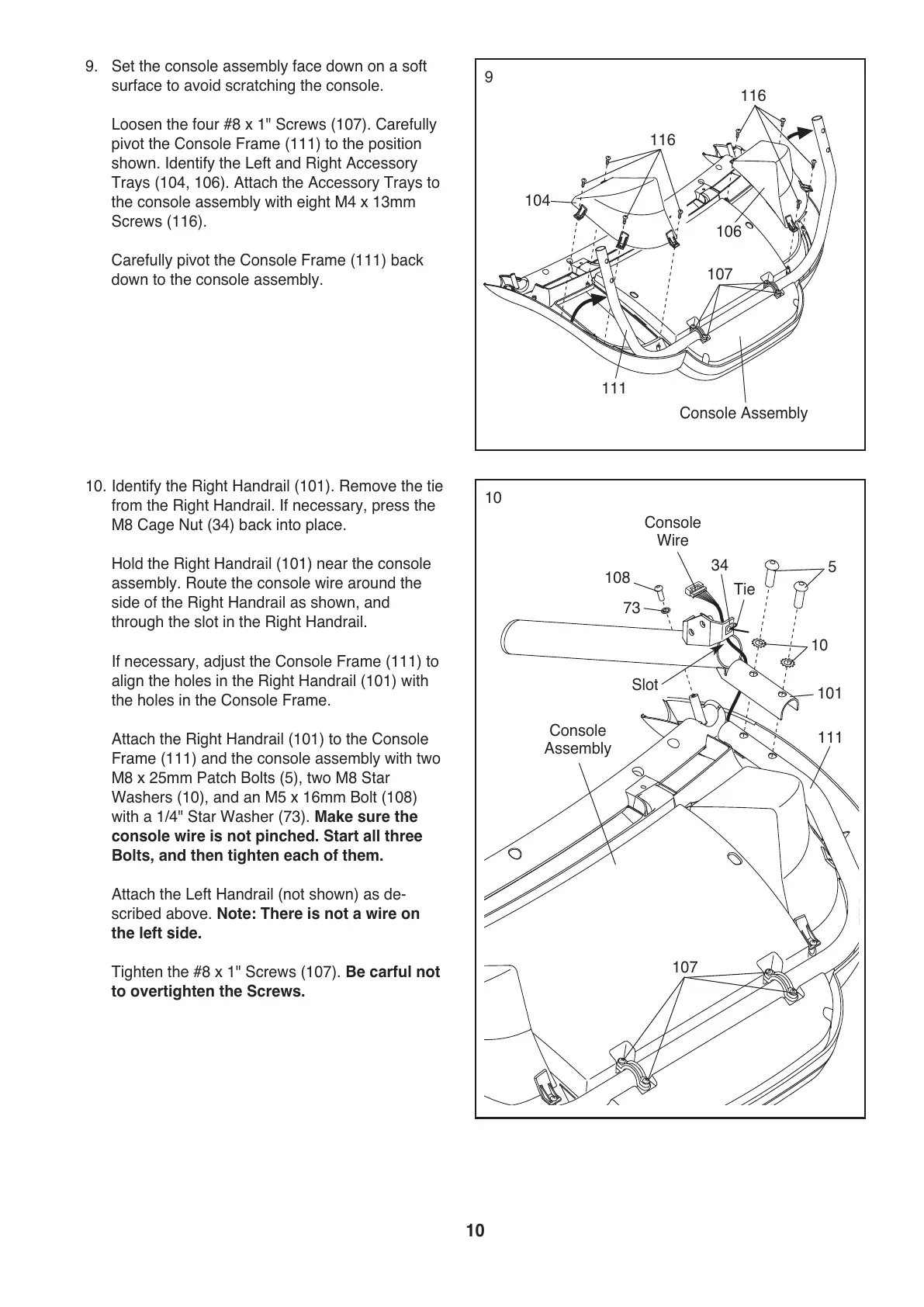

10. Identify the Right Handrail (101). Remove the tie
from the Right Handrail. If necessary, press the
M8 Cage Nut (34) back into place.
Hold the Right Handrail (101) near the console
assembly. Route the console wire around the
side of the Right Handrail as shown, and
through the slot in the Right Handrail.
If necessary, adjust the Console Frame (111) to
align the holes in the Right Handrail (101) with
the holes in the Console Frame.
Attach the Right Handrail (101) to the Console
Frame (111) and the console assembly with two
M8 x 25mm Patch Bolts (5), two M8 Star
Washers (10), and an M5 x 16mm Bolt (108)
with a 1/4" Star Washer (73). Make sure the
console wire is not pinched. Start all three
Bolts, and then tighten each of them.
Attach the Left Handrail (not shown) as de-
scribed above. Note: There is not a wire on
the left side.
Tighten the #8 x 1" Screws (107). Be carful not
to overtighten the Screws.
101
108
5
111
Slot
Tie
10
10
73
Console
Wire
Console
Assembly
34
9. Set the console assembly face down on a soft
surface to avoid scratching the console.
L
oosen the four #8 x 1" Screws (107). Carefully
pivot the Console Frame (111) to the position
s
hown. Identify the Left and Right Accessory
Trays (104, 106). Attach the Accessory Trays to
the console assembly with eight M4 x 13mm
Screws (116).
Carefully pivot the Console Frame (111) back
down to the console assembly.
107
107
To Next Page
