26

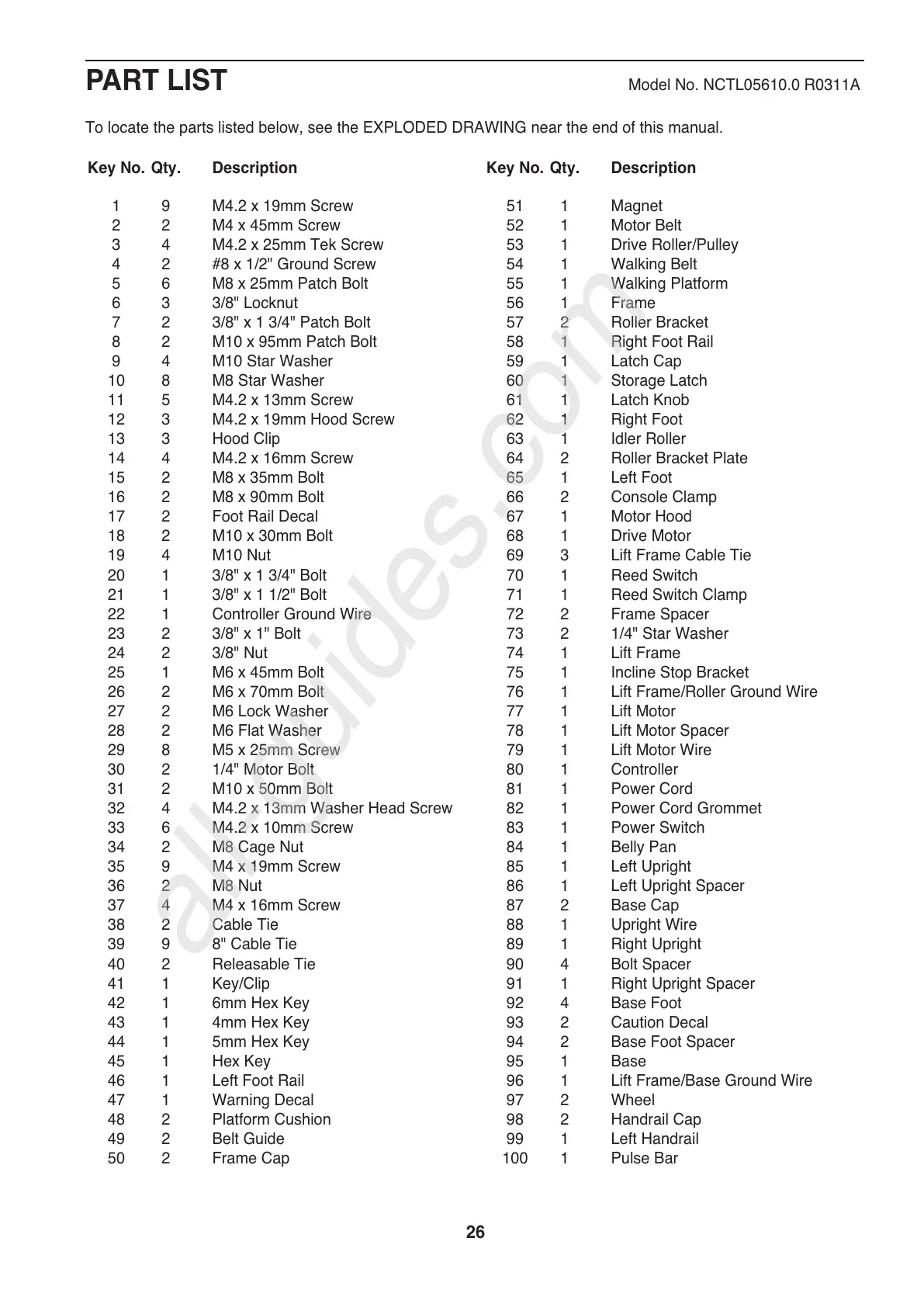

PART LIST Model No. NCTL05610.0 R0311A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
19M4.2 x 19mm Screw
2
2 M4 x 45mm Screw
34M4.2 x 25mm Tek Screw
42#8 x 1/2" Ground Screw
56M8 x 25mm Patch Bolt
633/8" Locknut
723/8" x 1 3/4" Patch Bolt
82M10 x 95mm Patch Bolt
94M10 Star Washer
10 8 M8 Star Washer
11 5 M4.2 x 13mm Screw
12 3 M4.2 x 19mm Hood Screw
13 3 Hood Clip
14 4 M4.2 x 16mm Screw
15 2 M8 x 35mm Bolt
16 2 M8 x 90mm Bolt
17 2 Foot Rail Decal
18 2 M10 x 30mm Bolt
19 4 M10 Nut
20 1 3/8" x 1 3/4" Bolt
21 1 3/8" x 1 1/2" Bolt
22 1 Controller Ground Wire
23 2 3/8" x 1" Bolt
24 2 3/8" Nut
25 1 M6 x 45mm Bolt
26 2 M6 x 70mm Bolt
27 2 M6 Lock Washer
28 2 M6 Flat Washer
29 8 M5 x 25mm Screw
30 2 1/4" Motor Bolt
31 2 M10 x 50mm Bolt
32 4 M4.2 x 13mm Washer Head Screw
33 6 M4.2 x 10mm Screw
34 2 M8 Cage Nut
35 9 M4 x 19mm Screw
36 2 M8 Nut
37 4 M4 x 16mm Screw
38 2 Cable Tie
39 9 8" Cable Tie
40 2 Releasable Tie
41 1 Key/Clip
42 1 6mm Hex Key
43 1 4mm Hex Key
44 1 5mm Hex Key
45 1 Hex Key
46 1 Left Foot Rail
47 1 Warning Decal
48 2 Platform Cushion
49 2 Belt Guide
50 2 Frame Cap
51 1 Magnet
5
2 1 Motor Belt
53 1 Drive Roller/Pulley
54 1 Walking Belt
55 1 Walking Platform
56 1 Frame
57 2 Roller Bracket
58 1 Right Foot Rail
59 1 Latch Cap
60 1 Storage Latch
61 1 Latch Knob
62 1 Right Foot
63 1 Idler Roller
64 2 Roller Bracket Plate
65 1 Left Foot
66 2 Console Clamp
67 1 Motor Hood
68 1 Drive Motor
69 3 Lift Frame Cable Tie
70 1 Reed Switch
71 1 Reed Switch Clamp
72 2 Frame Spacer
73 2 1/4" Star Washer
74 1 Lift Frame
75 1 Incline Stop Bracket
76 1 Lift Frame/Roller Ground Wire
77 1 Lift Motor
78 1 Lift Motor Spacer
79 1 Lift Motor Wire
80 1 Controller
81 1 Power Cord
82 1 Power Cord Grommet
83 1 Power Switch
84 1 Belly Pan
85 1 Left Upright
86 1 Left Upright Spacer
87 2 Base Cap
88 1 Upright Wire
89 1 Right Upright
90 4 Bolt Spacer
91 1 Right Upright Spacer
92 4 Base Foot
93 2 Caution Decal
94 2 Base Foot Spacer
95 1 Base
96 1 Lift Frame/Base Ground Wire
97 2 Wheel
98 2 Handrail Cap
99 1 Left Handrail
100 1 Pulse Bar
To Next Page
