12
15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Keep the included hex keys in a secure place; one of the hex keys is used to adjust the walking belt (see
pages 23 and 24).

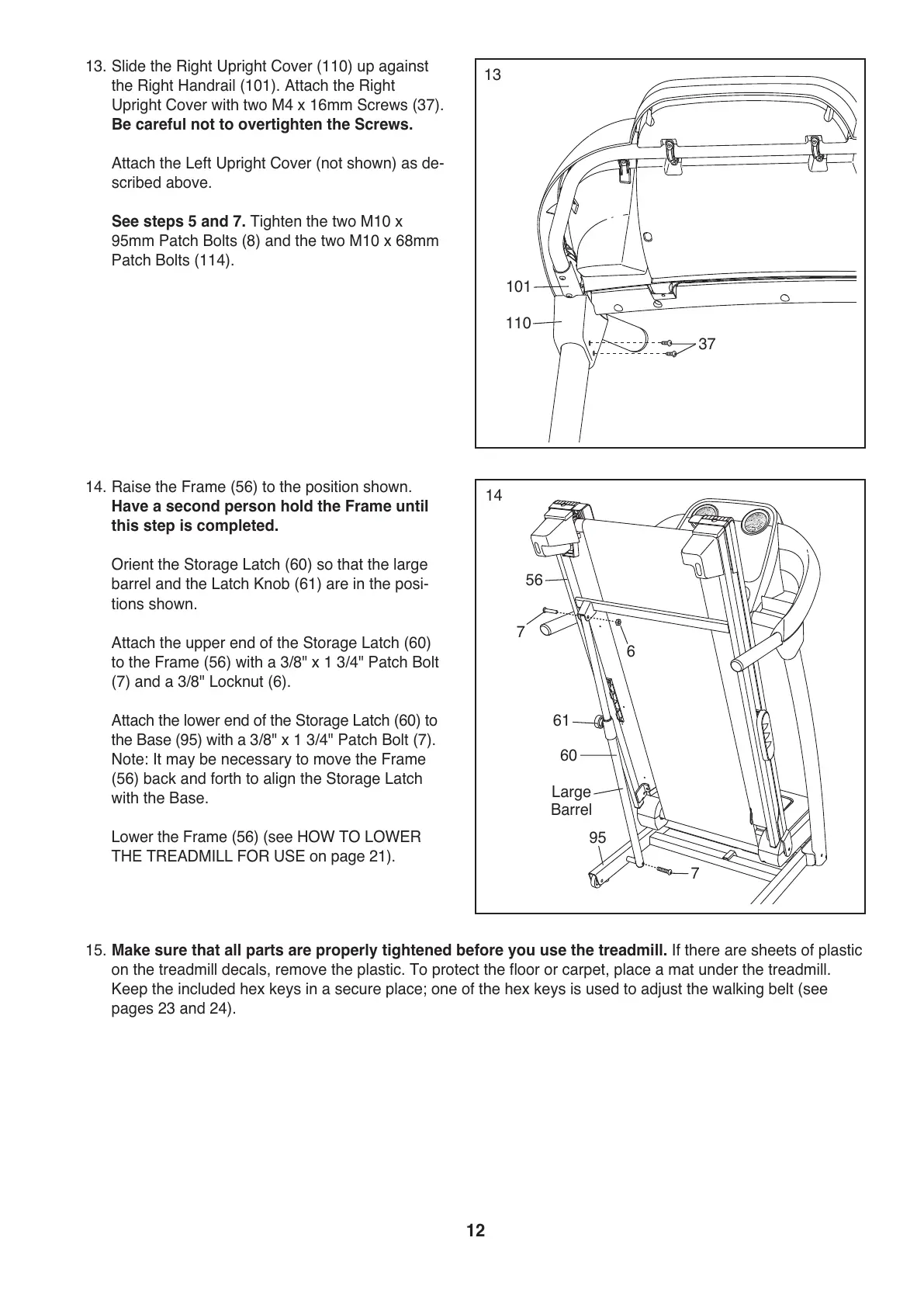

14. Raise the Frame (56) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (60) so that the large
barrel and the Latch Knob (61) are in the posi-
tions shown.
Attach the upper end of the Storage Latch (60)
to the Frame (56) with a 3/8" x 1 3/4" Patch Bolt
(7) and a 3/8" Locknut (6).
Attach the lower end of the Storage Latch (60) to
the Base (95) with a 3/8" x 1 3/4" Patch Bolt (7).
Note: It may be necessary to move the Frame
(56) back and forth to align the Storage Latch
with the Base.
Lower the Frame (56) (see HOW TO LOWER
THE TREADMILL FOR USE on page 21).
56
Large
Barrel
7
95
6
14
7
61
60
13. Slide the Right Upright Cover (110) up against
the Right Handrail (101). Attach the Right
Upright Cover with two M4 x 16mm Screws (37).
B
e careful not to overtighten the Screws.
A
ttach the Left Upright Cover (not shown) as de-
scribed above.
See steps 5 and 7. Tighten the two M10 x
95mm Patch Bolts (8) and the two M10 x 68mm
Patch Bolts (114).
37
110
101
13
