9

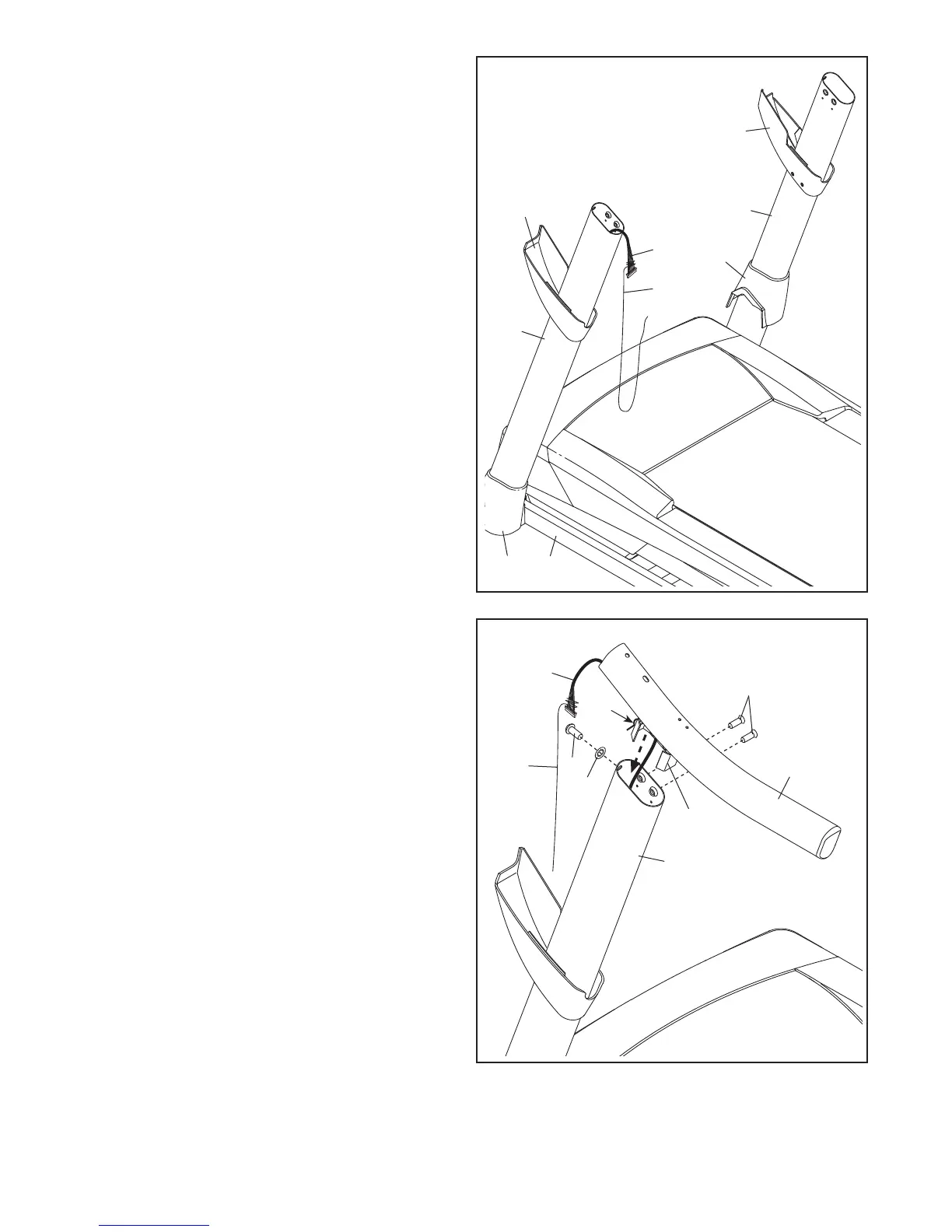

4. Identify the Left and Right Base Covers (73, 74).
Slide the Left and Right Base Covers onto the
Left and Right Uprights (75, 76) as shown.
Identify the Left and Right Upright Covers (92,
93). Slide the Left and Right Upright Covers onto
the Left and Right Uprights (75, 76) as shown.
Remove the tie from the Upright Wire (70).
93
74
76
75
70
Wire
Tie
92
73 80
4
5. Identify the Left Handrail (71). Remove the tie
from the 5/16" Cage Nut (90). If necessary,
press the Cage Nut back into place.
Hold the Left Handrail (71) near the Left Upright
(75). Tie the wire tie in the Left Handrail securely
around the end of the Upright Wire (70).Then,
pull the Upright Wire through the bracket on the
bottom of the Left Handrail and out of the end of
the Handrail.
Attach the Left Handrail (71) to the Left Upright
(75) with a 5/16" x 1" Bolt (7), a 5/16" Star
Washer (8), and two 5/16" x 1" Flat Head
Screws (10) as shown. Start the Bolt and the
Flat Head Screws, but do not tighten them
yet.
10
71
75
70
90
7
8
5
Bracket
Wire
Tie
