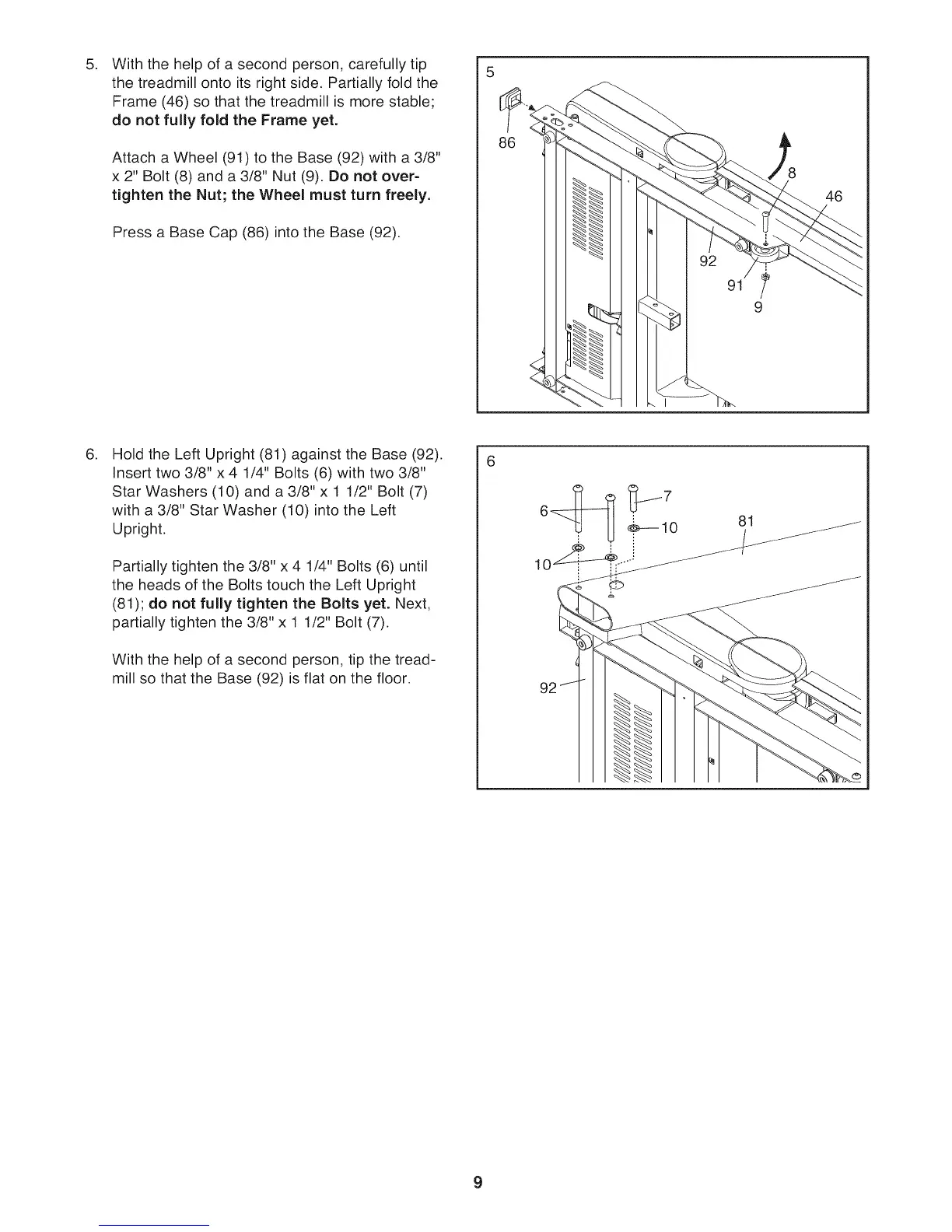

5. 5
Withthehelpofasecondperson,carefullytip
thetreadmillontoitsrightside,Partiallyfoldthe
Frame(46)sothatthetreadmillismorestable;
donotfullyfoldthe Frameyet.
AttachaWheel(91)totheBase(92)witha3/8"
x2" Bolt(8)anda3/8"Nut(9),Donotover-
tightentheNut;theWheelmustturnfreely.
Pressa BaseCap(86)intotheBase(92).
86
I
6
8
9
46
.
Hold the Left Upright (81) against the Base (92).
Insert two 3/8" x 4 1/4" Bolts (6) with two 3/8"
Star Washers (10) and a 3/8" x 1 1/2" Bolt (7)
with a 3/8" Star Washer (10) into the Left
Upright.
Partially tighten the 3/8" x 4 1/4" Bolts (6) until
the heads of the Bolts touch the Left Upright
(81); do not fully tighten the Bolts yet. Next,
partially tighten the 3/8" x 1 1/2" Bolt (7).
With the help of a second person, tip the tread-
mill so that the Base (92) is flat on the floor.
9
