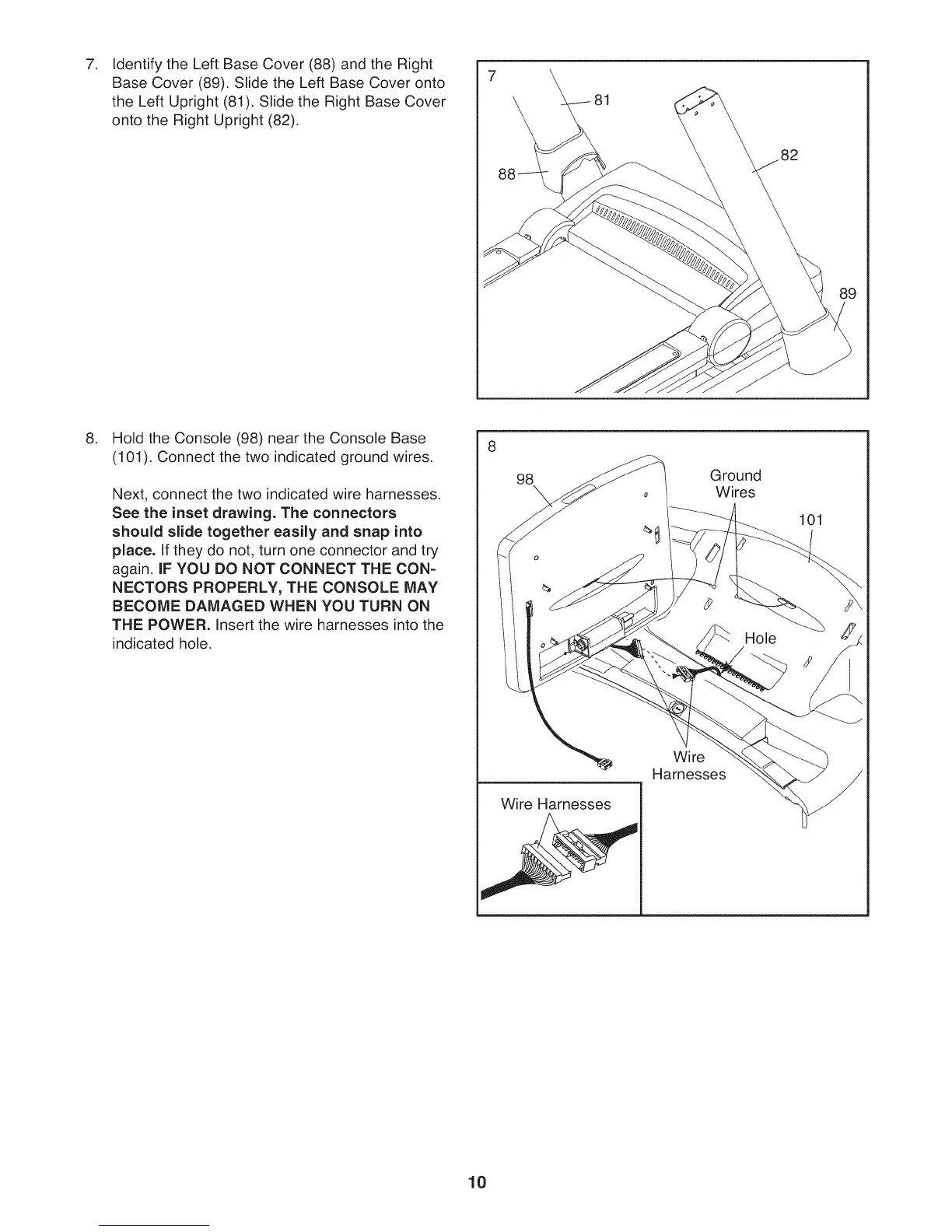

Identify the Left Base Cover (88) and the Right
Base Cover (89). Slide the Left Base Cover onto
the Left Upright (81), Slide the Right Base Cover
onto the Right Upright (82).
.
Hold the Console (98) near the Console Base
(101). Connect the two indicated ground wires.
Next, connect the two indicated wire harnesses.
See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CON-
NECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Insert the wire harnesses into the
indicated hole.
8
98
Wire Harnesses
Ground
Wires
Wire
Harnesses
101
10
To Next Page
