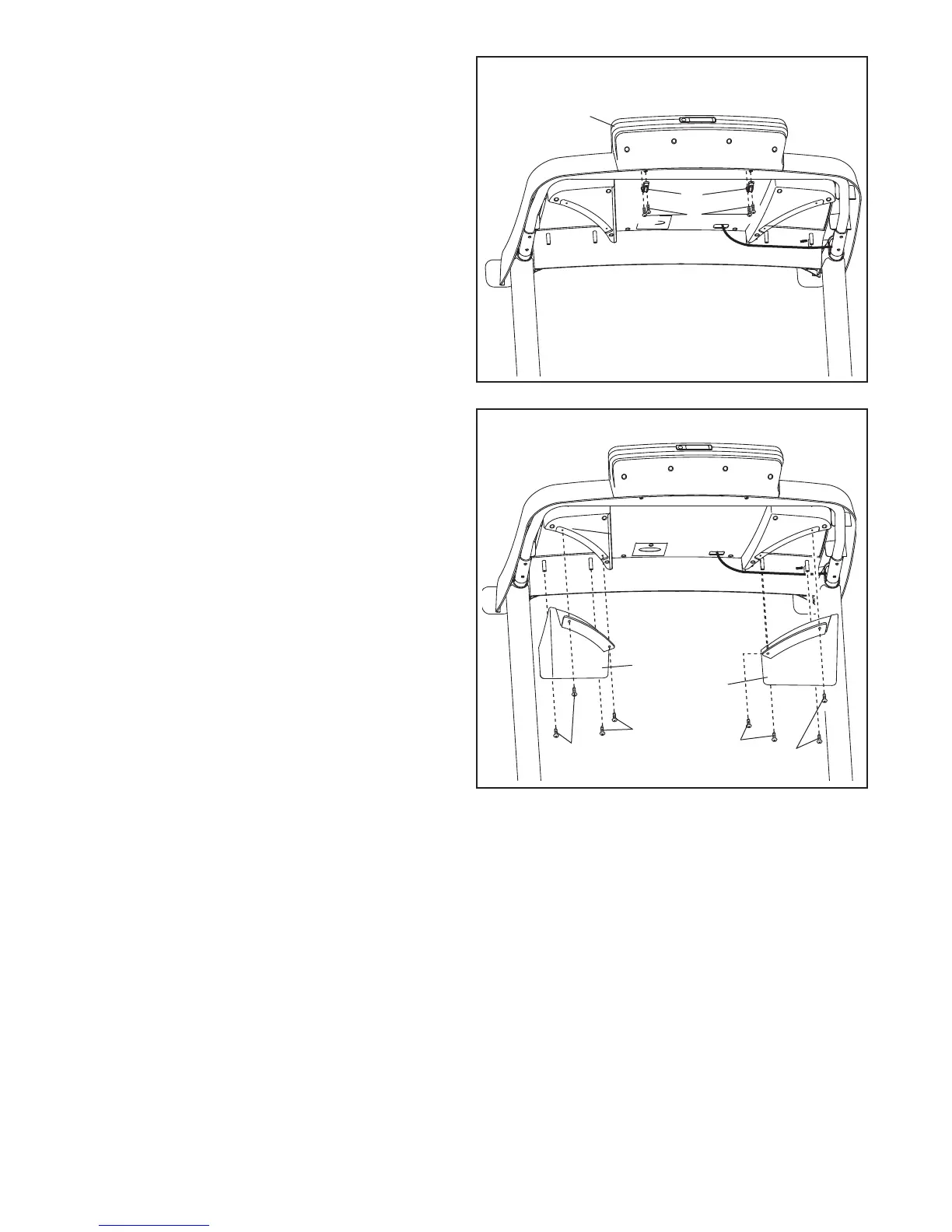

10. Attach the two Console Clamps (96) to the con-
sole assembly with four #8 x 3/4" Screws (6).
See step 3. Tighten all six 3/8" x 4" Screws (4).
10
96
Console
Assembly
6
97
85
6
6
6
6
11
11. Identify the Left and Right Trays (97, 85). Orient
the Trays as shown and attach each Tray
with four #8 x 3/4" Screws (6). Start all of the
Screws before tightening them. Be careful
not to overtighten the Screws.
