8

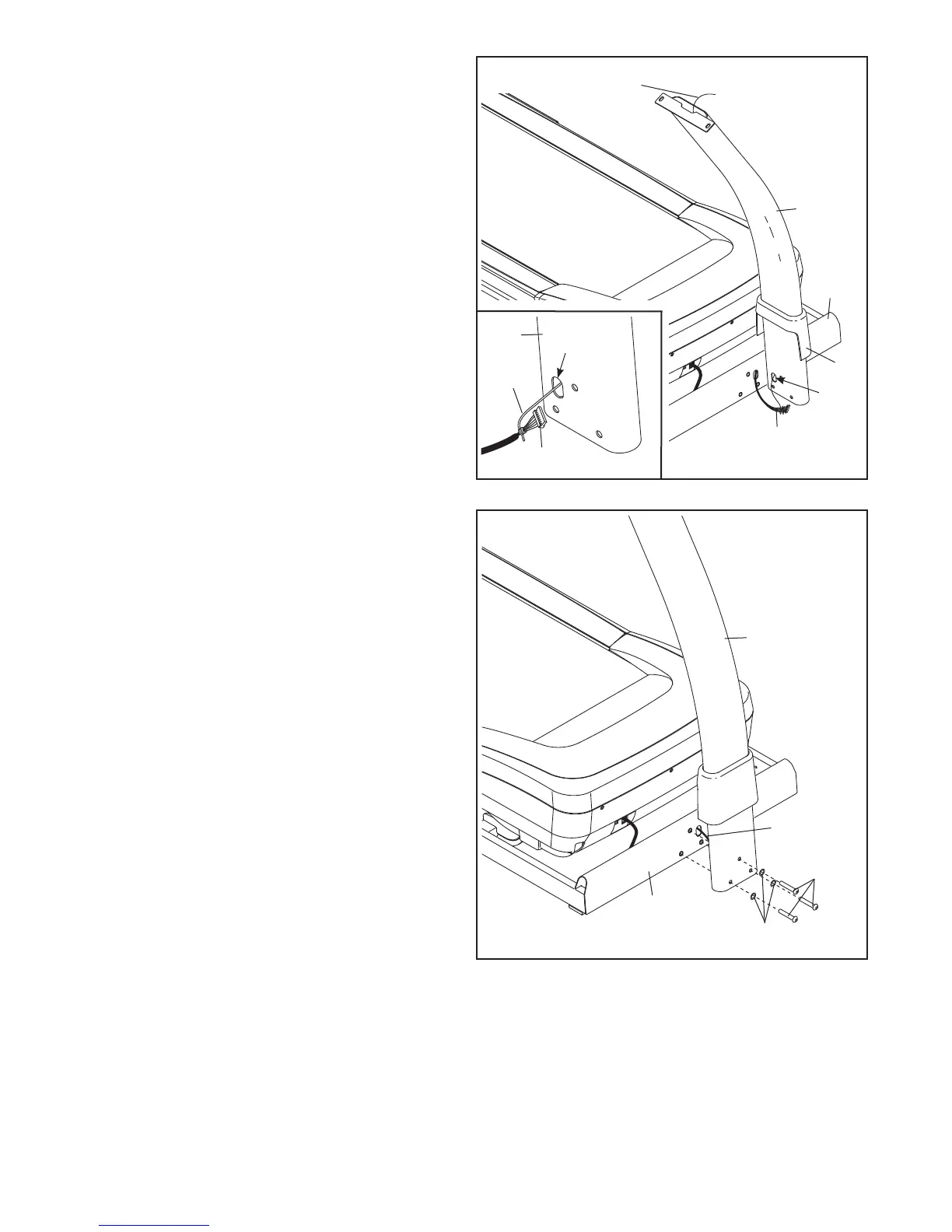

4. Hold the Upright (86) against the Base (94). Be
careful not to pinch the Upright Wire (79).
Insert three 3/8" x 2 3/4" Patch Bolts (7) with
three 3/8" Star Washers (11) into the Upright.
Partially tighten the 3/8" x 2 3/4" Patch Bolts
(7) until the heads of the Patch Bolts touch the
Upright (86); do not fully tighten the Patch
Bolts yet.
94
4
86
7
11
79
3. Slide the Upright Cover (87) onto the bottom of
the Upright (86) as shown.
Have a second person hold the Upright (86) near
the Base (94).
See the inset drawing. Tie the wire tie in the
Upright (86) securely around the end of the
Upright Wire (79). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Upright.
86
Wire
Tie
94
Hole
87
86
79
79
Wire
Tie
Hole
3
