9

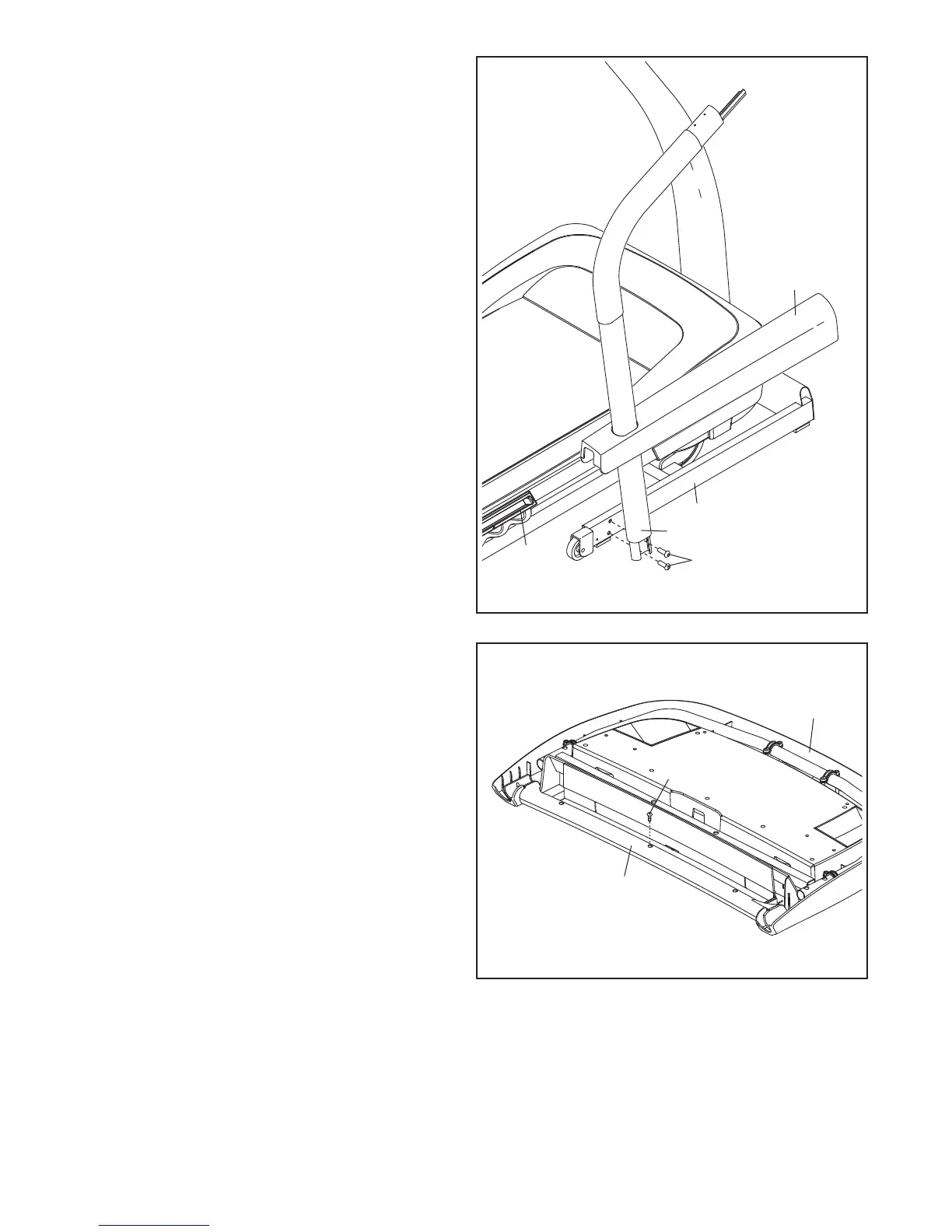

6. Set the console assembly face down on a
soft surface to avoid scratching the console
assembly. Remove the Screw (A) and lift off the
Crossbar (80). Discard the Screw.
80
Console
Assembly
A
6
5. Slide the Adjustable Cushions (39) to rmness
setting 5 (only one side is shown).
Identify the Right Handrail (82) and the Right
Base Cover (84), which are marked "Right."
Slide the Right Base Cover onto the Right
Handrail.
Hold a 3/8" x 1" Patch Bolt (4) on the end of a
hex key and insert the Patch Bolt into the Right
Handrail (82). Repeat this step with a second
3/8" x 1" Patch Bolt (4).
Partially tighten the two 3/8" x 1" Patch Bolts
(4) into the Right Handrail (82) and the Base
(94) until the heads of the Patch Bolts touch the
Right Handrail; do not fully tighten the Patch
Bolts yet. Do not press the Right Base Cover
(84) into place yet.
Slide the Left Base Cover (not shown) onto
the Left Handrail (not shown). Attach the
Left Handrail to the Base (94) as described
above.
94
82
84
4
5
39
To Next Page
