13
14. Firmly tighten the two 3/8" x 2 3/4" Screws (7)
on the left side of the treadmill. Then, tighten the
two 3/8" x 1 1/4" Screws (8).
Repeat this step on the right side of the
treadmill.
Press the Left and Right Base Covers (82, 83)
onto the Base (94) until they snap into place.
14
83
8
82
94
7

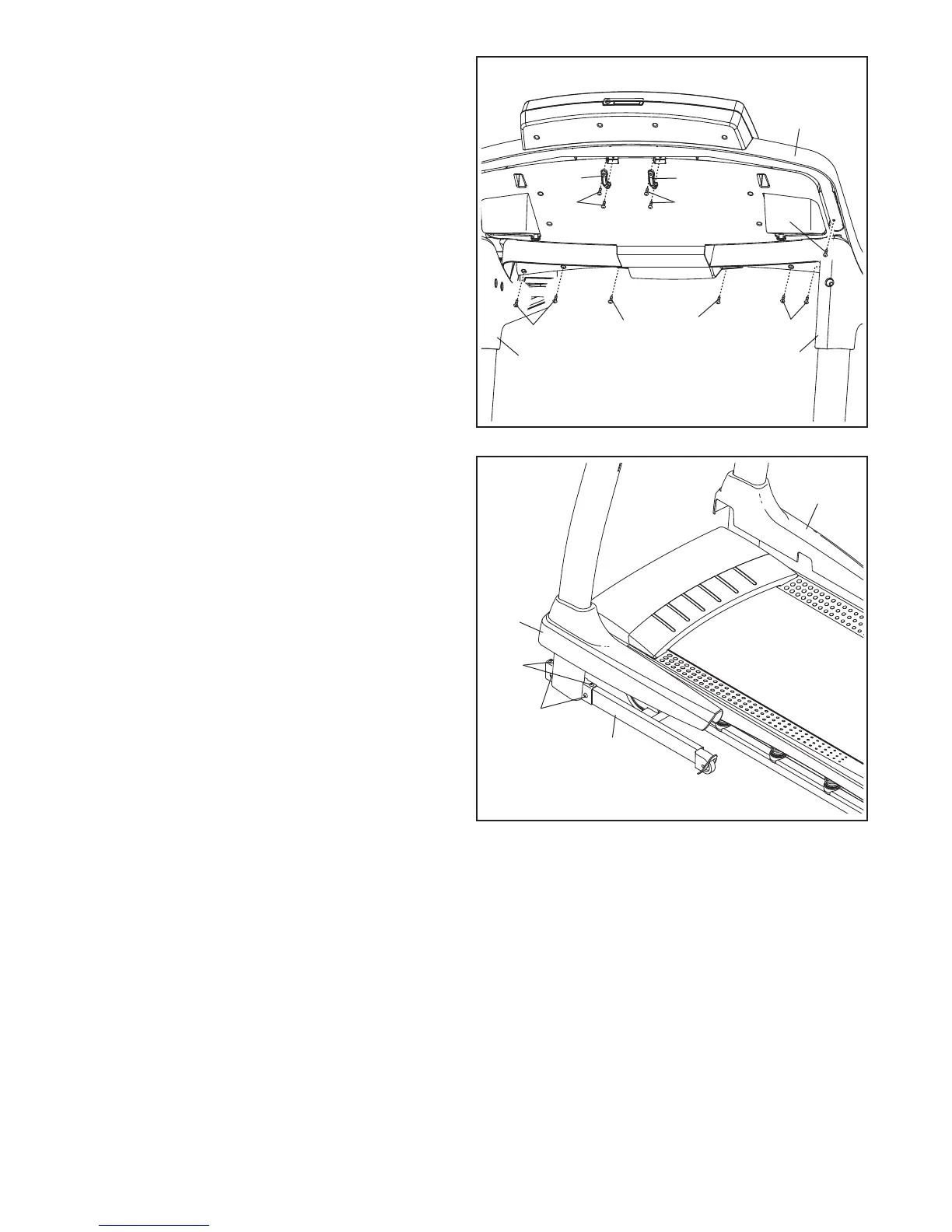

13. Set the console assembly on the Right and Left
Handrails (87, 88). Be careful not to pinch
any wires. Insert the excess Upright Wire (not
shown) into the Left Handrail.
Attach the console assembly with six #8 x 1/2"
Screws (1) and two #8 x 3/4" Screws (2) (only
one side is shown). Start all eight Screws, and
then tighten them.
Then, attach two Console Clamps (106) to the
console assembly with four #8 x 1" Screws (25).
See step 7. Fully tighten the four 5/16" x 1"
Screws (5) and the two 5/16" x 1 1/2" Bolts (4).
88
1
13
Console
Assembly
1
87
2
25
1
1
25
106
106
To Next Page
