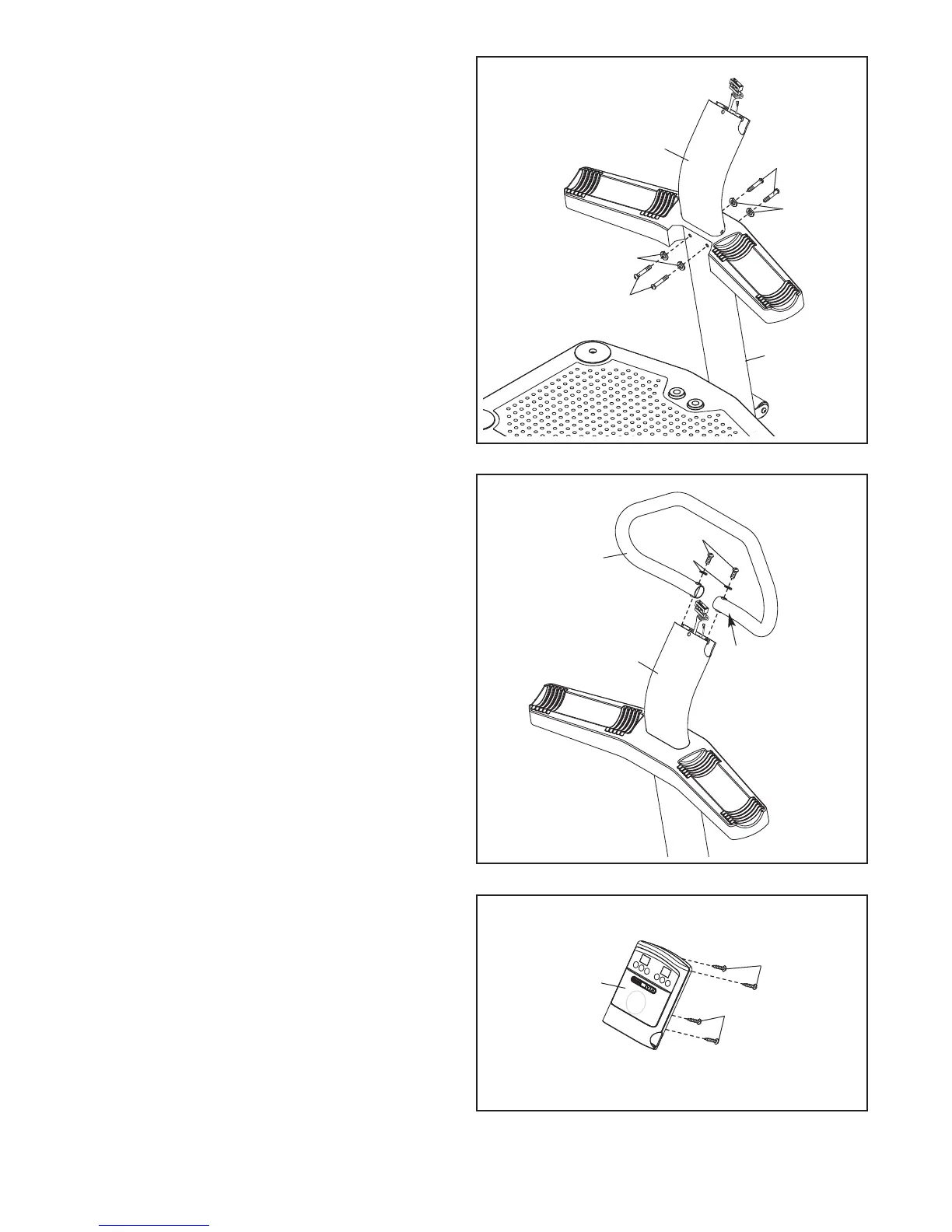

8. Tip: Be careful not to pinch the wires during
t
his step.
A
ttach the Upper Upright (36) to the Lower
Upright (1) with four M10 x 20mm Patch Screws
(28) and four M10 Split Washers (38).
S
ee step 5. Tighten the eight M5 x 38mm
Screws (40).
8
2
8
1
28
38
38
3
6
10
9. Tip: Orient the Handlebar (39) so that the
sticker marked with an “R” is in the location
shown.
Attach the Handlebar (39) to the Upper Upright
(36) with two M10 x 62mm Patch Screws (37)
and two M10 Split Washers (38).
9
37
38
39
“R”
36
10. Remove the four M4 x 12mm Self-tapping
Screws (27) from the back of the Console (3).
Set the Self-tapping Screws aside until step
13.
10
27
27
3
