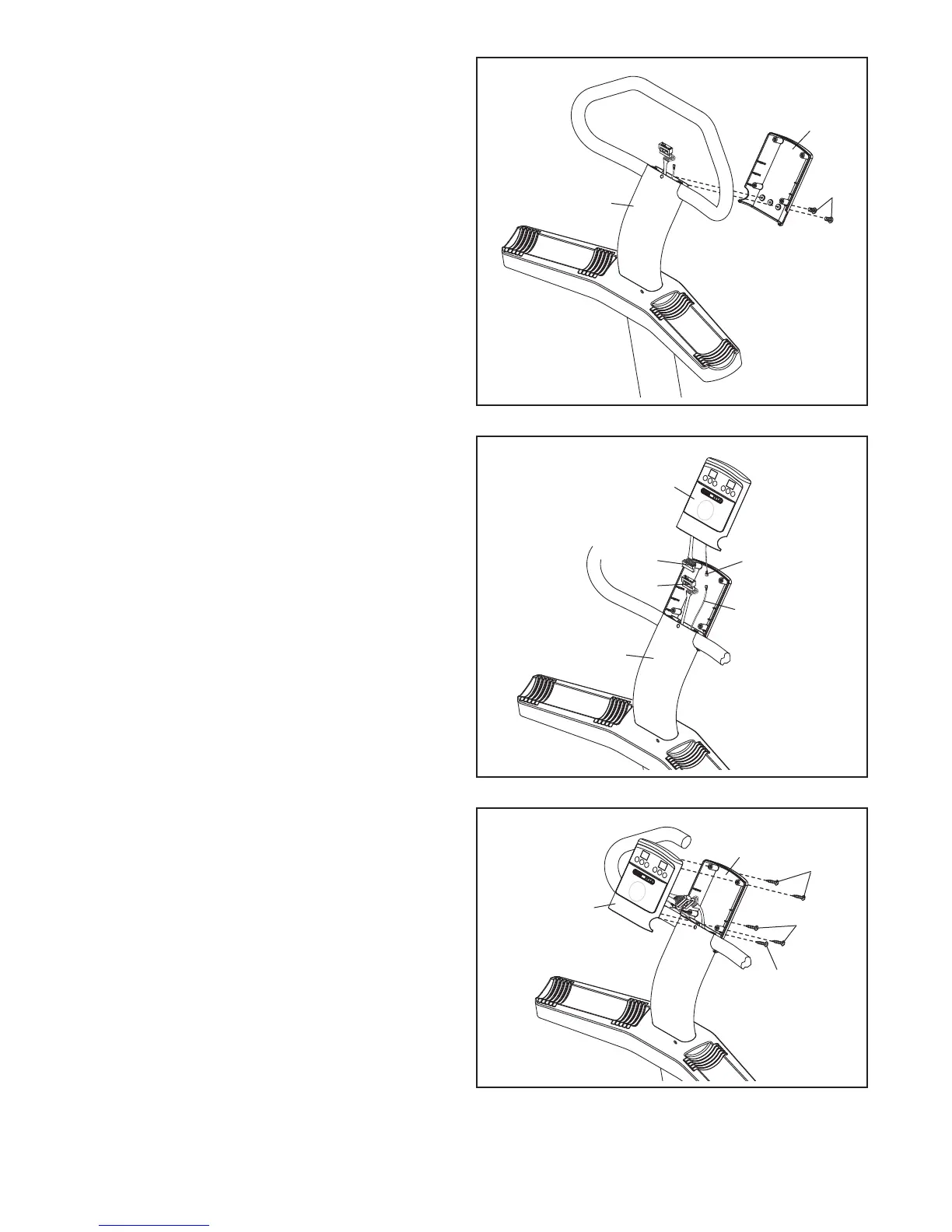

11. Attach the back of the Console (3) to the Upper
Upright (36) with two M4 x 16mm Round
Screws (26). Do not tighten the Round
S
crews yet.
1
1
36
3
26
11
12. While a second person holds the front of the
Console (3) near the Upper Upright (36), con-
nect the console ground wire to the Ground
Wire (52). Next, connect the console wire to the
Wire Harness (43). Then, insert the wires into
the Upper Upright.
12
3
52
Console
Ground Wire
36
13. Tip: Be careful not to pinch the wires during
this step.
Attach the front of the Console (3) to the back
of the Console with the four M4 x 12mm Self-
tapping Screws (27) you removed in step 10
and an M4 x 19mm Screw (45).
See step 11. Tighten the two M4 x 16mm
Round Screws (26).
13
3
27
27
45
3
Console
Wire
43
