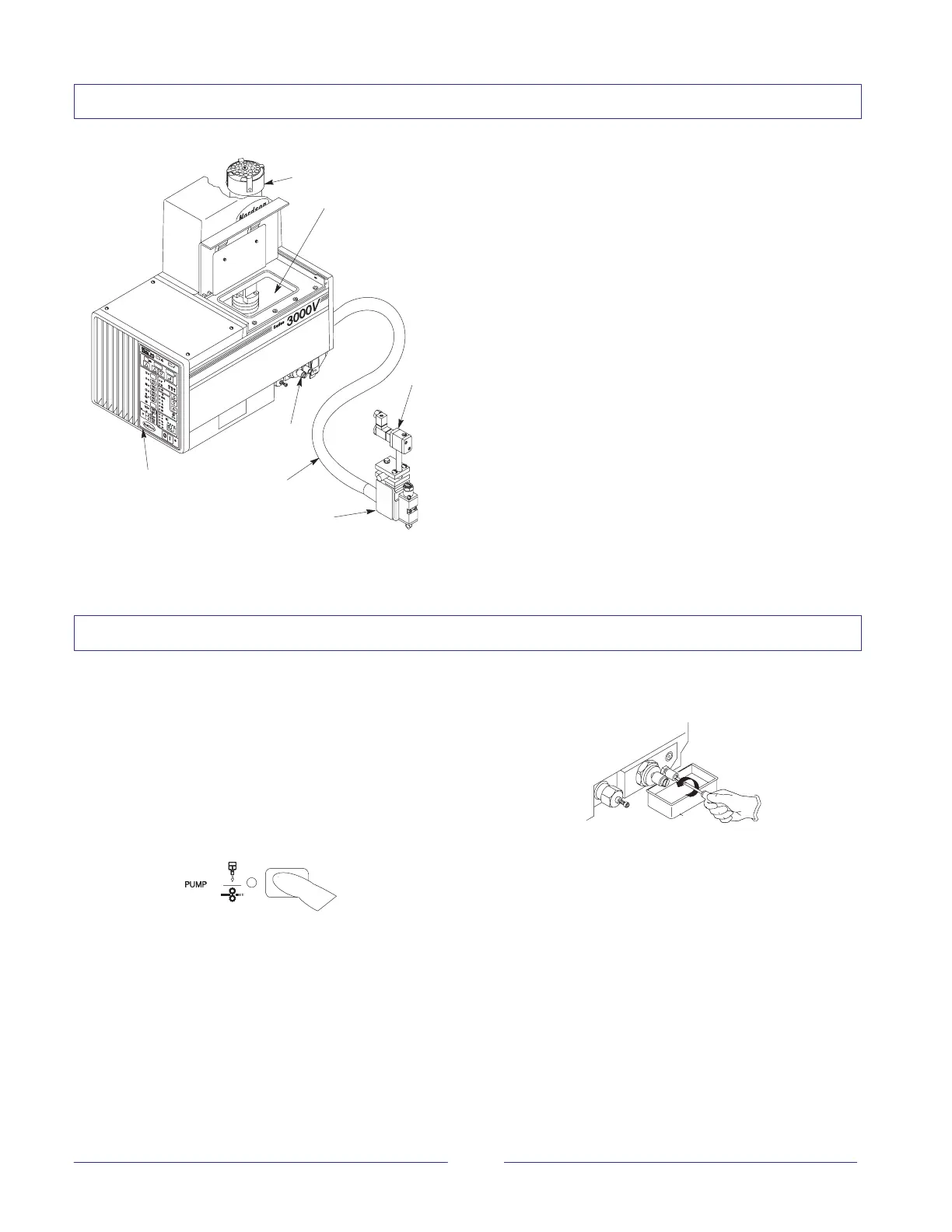

Overview of System Components
1
2
3
4
7
5
6
Applicator
1. Motor and pump assembly
2. Tank
3. Filter, drain valve, and pressure control valve
4. Controls
Additional System Components
5. Hose
6. Air-operated gun
7. Solenoid valve
Daily Maintenance
1. Clean the exterior surfaces of the applicator and
guns.
2. Check the o-rings and gaskets for leaks.
3. Flush the manifold filter as follows:
a. Turn the pump off by pressing the PUMP key.
The PUMP light will turn off and the pump will
stop.
b. Place containers under all guns and trigger the
guns to relieve hydraulic pressure.
c. Open the drain valve over a container by
turning the valve counterclockwise.
d. Turn the pump on by pressing the PUMP key.
Wait until a steady stream of adhesive flows
from the drain valve.
e. Turn the pump off by pressing the PUMP key.
f. Close the drain valve.
g. Turn the pump on by pressing the PUMP key.
